SIOM 2-port 10G RJ45, Intel X550 with 1U bracket (Retail)

AOC-MTG-I2TM-O
https://safeconsulting.no/web/image/product.template/6521/image_1920?unique=4175d88

kr 2,872.19 2872.19 NOK kr 2,872.19

kr 2,872.19

Not Available For Sale

    This combination does not exist.

    Summary Description

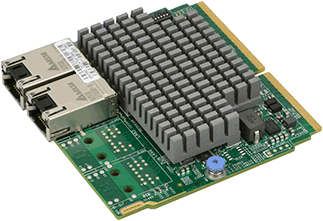

    The Supermicro AOC-MTG-i2T is a compact, advanced 10GBase-T adapter featuring Intel X550 controller, offering low power usage, and rich virtualization features for enhanced networking.

    Key Features

    • Dual 10GBase-T RJ45 ports
    • Intel X550 10GbE controller
    • Supports VXLAN and NVGRE
    • Low power consumption
    • PCI-SIG SR-IOV support
    • Flexible Port Partitioning

    Key Applications

    • Data Centers
    • Enterprise Networking
    • Virtualization Environments
    • High-Performance Computing
    • Server Connectivity

    Description

    The Supermicro AOC-MTG-i2T is a feature-rich, low power 10GBase-T adapter based on the Intel X550 chipset. Equipped with advanced virtualization features like VXLAN and NVGRE, it offers flexible connectivity for data centers. The second-generation integrated 10GbE MAC+PHY reduces both cost and power consumption, making it ideal for expanding network connectivity in professional environments.

    Product Specifications

    Specification Details
    General
    Supported Platforms
    • Supermicro motherboards with Super I/O Module slot
    • Supermicro server systems with Super I/O Module slot
    Compliance
    • RoHS Compliant 6/6, Pb Free
    I/O Features
    MSI/MSI-X Support
    • Yes
    Low Latency
    • Yes
    Multiple Queues
    • 64 Tx and Rx Per Port
    Checksum Offloading
    • IPv4, IPv6
    TCP Segmentation Offload
    • IPv4, IPv6
    Receive/Transmit Side Scaling
    • Windows & Linux Environments
    Virtualization Features
    I/O Virtualization
    • Multi-mode
    Network Virtualization
    • VXLAN
    • NVGRE
    Virtual Machine Device Queues
    • Support for VMDq
    Transmit/Receive Queue Pairs
    • 64 Per Port
    Port Partitioning
    • 64 VFs per Port
    VLAN Support
    • 802.1q
    Management Features
    PXE Support
    • Yes
    Remote Boot
    • iSCSI
    • FCoE
    IEEE 1588
    • Yes
    Asset Management
    • Support on Supermicro platforms
    Cable Support
    RJ-45 Category-6
    • up to 55m
    RJ-45 Category-6A
    • up to 100m
    Power Consumption
    Typical
    • 11W
    Maximum
    • 13W
    Operating Conditions
    Operating Temperature
    • 0°C to 55°C (32°F to 131°F)
    Storage Temperature
    • -40°C to 70°C (-40°F to 158°F)
    Storage Humidity
    • 90% non-condensing at 35°C
    Physical Dimensions
    Width x Depth
    • 92mm (3.62in) x 87.1mm (3.43in)
