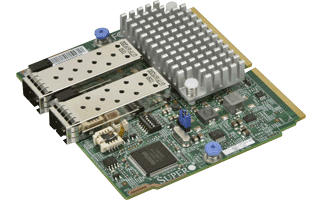

SIOM 2-port 10G SFP+, Intel 82599ES (Retail Pack)

AOC-MTGN-I2S-O
https://safeconsulting.no/web/image/product.template/6528/image_1920?unique=3642167

kr 2,886.67 2886.67 NOK kr 2,886.67

kr 2,886.67

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The AOC-MTGN-i2S provides unmatched virtualization features and flexibility for LAN and SAN networking. Suitable for today's demanding data center environments with Supermicro Super I/O Module support.

    Key Features

    • Intel® 82599ES 10GbE controller
    • Dual SFP+ ports
    • Load balancing on multiple CPUs
    • iSCSI remote boot support
    • Fibre Channel over Ethernet support
    • Time Sync IEEE 1588
    • Direct Cache Access
    • MSI-X support
    • Advanced Packet Filtering
    • VLAN support

    Key Applications

    • Data Centers
    • Virtualization
    • LAN Networking
    • SAN Networking

    Description

    The Ultimate 10G SFP+ Ethernet Controller in Supermicro Super I/O Module Supermicro® Super I/O Modules provide flexible I/O networking options and the AOC-MTGN-i2S is the most flexible and scalable 10GbE SFP+ SIOM controller for today's demanding data center environments. Based on Intel 10GbE network controller 82599, they address the demanding needs of the next generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking. This product is only available through Supermicro.

    Product Specifications

    Specification Details
    General
    OS Support
    • Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)
    • Windows 8.1, 8, 7 (x64 Edition)
    • RedHat Linux
    • SUSE Linux
    • FreeBSD
    • UEFI
    • VMware
    Cables Support
    • SFP+ direct attach twinaxial copper cables up to 7m
    • Fiber-optic cables with required optional SFP+ transceivers
    Compliance
    • RoHS Compliant 6/6, Pb Free
    I/O Features
    Direct Cache Access (DCA)
    • True
    MSI-X Support
    • True
    Checksum Offloading
    • Tx/Rx IP
    • SCTP
    • TCP
    • UDP
    Receive/Transmit Side ScalingWindows:
    • True

    Linux:
    • True

    Virtualization Features
    VMDq
    • True
    Next-Generation VMDq
    • 64 queues per port
    SR-IOV
    • 64 virtual functions per port
    Advanced Packet Filtering
    • True
    VLAN Support
    • True
    VXLAN Support
    • Through Software
    Management Features
    PXE Support
    • True
    SNMP and RMON
    • SNMP
    • RMON statistics counters
    NC-SI
    • True
    Asset Management
    • Part number
    • Revision
    • Serial number
    • MAC addresses
    Advanced Software Features
    Teaming Support
    • True
    IEEE 802.3ad
    • link aggregation control protocol
    IEEE 802.1Q VLANs
    • True
    IEEE 802.3 2005 Flow Control
    • True
    Power Consumption
    Typical
    • 6.2W
    Maximum
    • 7.2W
    Operating Conditions
    Operating Temperature
    • 0°C to 55°C (32°F to 131°F)
    Storage Temperature
    • -40°C to 70°C (-40°F to 158°F)
    Storage Humidity
    • 90% non-condensing relative humidity at 35°C
    Physical Dimensions
    Dimensions
    • 92mm (3.62in) x 87.1mm (3.43in) (W x D)
    Compatibility Matrices
    Servers
    • Supermicro Servers with SIOM support
    Cables & Transceivers
    • Networking Cables & Transceivers
    Available SKUs
    AOC-MTGN-i2SBracket:
    • BKT-0090L

    Description:
    • 2-port 10 Gigabit Ethernet Adapter with a swappable bracket for 2U+ chassis (Storage Servers)

    AOC-MTGN-i2SMBracket:
    • BKT-0089L

    Description:
    • 2-port 10 Gigabit Ethernet Adapter with an internal bracket for 1U chassis (Twin Servers)

    Optional Part List

    Part Number Quantity Description
    SFP+ Copper Cable
    CBL-0347L-1m 10GbE SFP+ to SFP+, Passive, 30AWG, Pull Type
    CBL-NTWK-0347-1m 10GbE SFP+ to SFP+, Passive, 30AWG, Push Type
    CBL-NTWK-0456-2m 10GbE SFP+ to SFP+, Passive, 30AWG, Push Type
    CBL-0348L-3m 10GbE SFP+ to SFP+, Passive, 24AWG, Pull release
    CBL-0349L-5m 10GbE SFP+ to SFP+, Passive, 24AWG, Pull release
    SFP+ Active Optical Cable
    CBL-SFP+AOC-1M-1m 10GbE SFP+ to SFP+ Fiber Active Optical Cable (AOC)
    CBL-SFP+AOC-3M-3m 10GbE SFP+ to SFP+ Fiber Active Optical Cable (AOC)
    CBL-SFP+AOC-5M-5m 10GbE SFP+ to SFP+ Fiber Active Optical Cable (AOC)
    SFP+ Transceiver module
    AOC-E10GSFPSR-SFP+ transceiver module for short range fiber cables (up to 300m), 10G/1G, 850nm, MMF, LC
    AOC-E10GSFPLR-SFP+ transceiver module for long range fiber cables (up to 3000m), 10G/1G, 1310nm, MMF, LC
    AOM-TSFP-709DMZ-AVG-10G/1G Ethernet 10GBase-SR/SW 1000Base-SX Dual Rate SFP+ 850nm LC Transceiver
