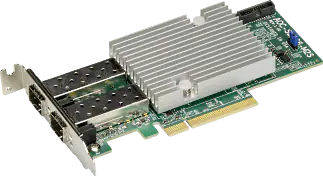

Standard PCIe 4.0 x8 dual port 25GbE with SFP28

AOC-S25G6-M2S-O
https://safeconsulting.no/web/image/product.template/12167/image_1920?unique=afc1cc5

kr 4,977.95 4977.95 NOK kr 4,977.95

kr 4,977.95

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro AOC-S25G6-M2S offers dual-port 25GbE connectivity via SFP28, powered by the NVIDIA ConnectX-6 Lx controller. Ideal for cloud services and enterprise data centers.

    Key Features

    • NVIDIA ConnectX-6 Lx 25GbE controller
    • Support for 25GbE and 10GbE speeds
    • Dual SFP28 ports
    • RDMA over Converged Ethernet
    • VXLAN, NVGRE, and Geneve support
    • Asset management with thermal sensor
    • Network Controller Sideband Interface (NC-SI)

    Key Applications

    • Cloud Services
    • Telecommunications
    • Enterprise Data Centers

    Description

    The Supermicro AOC-S25G6-M2S is a PCIe Gen 4 Ethernet adapter featuring the low-power NVIDIA ConnectX-6 Lx controller. Offering dual-port 25GbE with SFP28 connectors and support for VXLAN, NVGRE and RDMA, it delivers exceptional performance for cloud services, telecommunications, and enterprise data centers. Integrated asset management features enhance its versatility.

    Product Specifications

    Specification Details
    General
    Standards
    • IEEE 802.3ae 10GbE
    • IEEE 802.3by 25G
    • IEEE 802.3ad
    • IEEE 802.1AX
    • IEEE 802.3az
    • IEEE 802.3ap
    • IEEE 802.1Q
    • IEEE 802.1P
    • IEEE 802.1Qaz
    • IEEE 802.1Qbb
    • IEEE 802.1Qbg
    • IEEE 1588v2
    • IEEE 1149.1
    • IEEE 1149.6
    • PCIe 3.0
    • PCIe 4.0
    Storage Accelerations
    Offloads
    • NVMe over Fabric for target
    • iSER
    • NFSoRDMA
    • SMB Direct
    • NVMe-oF
    RDMA over Converged Ethernet
    Protocols
    • RoCE v1/v2
    • Zero-Touch RoCE
    • RoCE over overlay networks
    • IPsec over RoCE
    Features
    • Selective repeat
    • GPUDirect®
    • Dynamically Connected Transport (DCT)
    • Burst buffer offload
    Management and Control
    Interfaces
    • Network Controller Sideband Interface (NC-SI)
    • MCTP over SMBus and PCIe
    Protocols
    • PLDM for Monitor and Control DSP0248
    • PLDM for Firmware Update DSP026
    Remote Boot
    Methods
    • Remote boot over Ethernet
    • Remote boot over iSCSI
    • UEFI support for x86 and Arm servers
    • PXE boot
    Power Consumption
    Maximum
    • 15W
    Physical Dimensions
    PCB Dimensions
    • 5.600 inches (L) x 2.712 inches (W)
    Operating Conditions
    Storage Temperature
    • -40°C to 70°C
    Storage Humidity
    • 90% non-condensing relative humidity at 35°C
