AOC-S3008L-L8i Retail Pack (NOT FOR SELL ALONE)

AOC-S3008L-L8I
https://safeconsulting.no/web/image/product.template/6543/image_1920?unique=a415753

kr 2,579.72 2579.7200000000003 NOK kr 2,579.72

kr 2,579.72

Not Available For Sale

    This combination does not exist.

    Summary Description

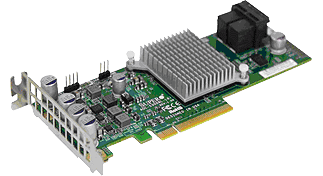

    The Supermicro MegaRAID AOC-S3008L-L8i RAID adapter offers high-performance storage connectivity with 8 internal SAS connectors, supporting 63 devices.

    Key Features

    • Broadcom 3008 SAS controller
    • 8-port, 12Gb/s per port
    • Supports 63 devices
    • Supports MegaRAID Storage Manager
    • Auto-negotiates PCI-E link widths
    • Supports multiple SAS/SATA protocols
    • RAID levels 0, 1, 1E, 10
    • Two MiniSAS HD (SFF-8643) connectors

    Key Applications

    • High-performance storage
    • Enterprise data centers
    • Server storage solutions

    Description

    The Supermicro MegaRAID AOC-S3008L-L8i features 8 internal SAS connectors for high-performance storage connectivity. Using a Broadcom 3008 I/O processor with Fusion-MPT for optimum RAID performance and a PCI Express host interface for increased bandwidth, this RAID adapter delivers an intelligent and robust RAID solution. The AOC-S3008L-L8i supports 63 devices and automatically negotiates PCI-E link widths. It is compatible with Supermicro motherboards only and supports various operating systems including Windows and Linux.

    Product Specifications

    Specification Details
    Compliance
    RoHS
    • RoHS Compliant 6/6, Pb Free
    Dimensions And Weight
    Dimensions
    • 2.7" x 6.6"
    Weight
    • 0.5 lbs
    Tested Motherboards And Servers
    Motherboards
    • X9DRH-7TF
    • X9DR3-LN4F+
    • X9DRT-PIBQ
    • X9DRT-P
    Operating Temperature
    Temperature Range
    • 0° to 55°C
    Processor
    Type
    • Broadcom 3008 I/O Processor
    Speed
    • 1.2 GHz
    General
    Supported Data Transfer Rates
    • 3.0 Gb/s
    • 6.0 Gb/s
    • 12.0 Gb/s
    Supported RAID Levels
    • 0
    • 1
    • 1E
    • 10
    OS Support
    • Windows 2012
    • Windows 2008
    • Vista
    • RedHat Enterprise Linux
    • SUSE Linux

    Standard Part List

    Part Number Quantity Description
    Add-on Card
    AOC-S3008L-L8i1Supermicro 12Gb/s Eight-Port SAS Internal RAID Adapter

    Optional Part List

    Part Number Quantity Description
    Add-on Card
    AOM-SAS3-8I8E-LP-8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket
    AOM-SAS3-16I16E-LP-16-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket
    Cable
    CBL-SAST-0532-MINI SAS HD,12G,INT,50CM,30AWG
    CBL-SAST-0550-MINI SAS HD,12G,INT,25CM,30AWG
