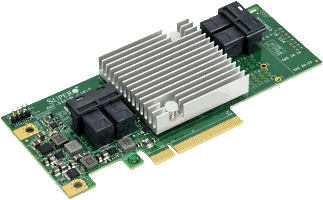

16x SAS3 ports PCIe 3.0x8 HBA Controller (Retail Pack)
AOC-S3216L-L16IT-O
Summary Description
The Supermicro AOC-S3216L-L16iT is a high-performance 12Gb/s HBA with 16 SAS/SATA ports. It includes four Mini SAS HD connectors and supports up to 240 devices. Compatible only with Supermicro motherboards.
Key Features
- Broadcom 3216 SAS3 controller
- 16-port (internal), 12Gb/s per port
- Supports JBOD and up to 240 devices
- Automatically negotiates PCI-E link widths
- Power management support
- Supports SAS and SATA data transfer rates
- Port independent auto-negotiation
- Supports multiple protocols
- Compatibility with Supermicro motherboards
Key Applications
- High-performance storage connectivity
- Enterprise storage solutions
- Data centers
- Supermicro server integration
Description
Supermicro 12Gb/s Sixteen-Port SAS/SATA Internal Host Bus Adapter. The Supermicro HBA AOC-S3216L-L16iT features 16 internal direct-attached SAS/SATA connections with four Mini SAS HD connectors for high-performance storage connectivity. Uses a Broadcom 3216 I/O controller with a PCI Express host interface for increased bandwidth. Supports 240 devices as a HBA in IT mode. Compatibility only with Supermicro motherboards.
Product Specifications
Specification | Details |
---|---|
Compliance | |
RoHS Compliant |
|
Dimensions And Weight | |
Height |
|
Length |
|
Weight |
|
Tested Motherboards And Servers | |
Motherboards |
|
General | |
SAS Controller |
|
Number Of Ports |
|
Port Speed |
|
Host Interface |
|
Connector Type |
|
Compatibility | |
Motherboards |
|
Operating Conditions | |
Temperature |
|
Power | |
Consumption |
|
Standard Part List
Part Number | Quantity | Description |
---|---|---|
Add-on Card | ||
AOC-S3216L-L16iT | 1 | Supermicro 12Gb/s 16-Port SAS Internal HBA Adapter |
Optional Part List
Part Number | Quantity | Description |
---|---|---|
Add-on Card | ||
AOM-SAS3-8I8E-LP | - | 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket |
AOM-SAS3-16I16E-LP | - | 16-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket |
Cable | ||
CBL-SAST-0532 | - | MINI SAS HD,12G,INT,50CM,30AWG |
CBL-SAST-0550 | - | MINI SAS HD,12G,INT,25CM,30AWG |
