8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP,122HDDw/exp,R

AOC-S3808L-L8IT-O
https://safeconsulting.no/web/image/product.template/12256/image_1920?unique=7c710c1

kr 4,930.32 4930.32 NOK kr 4,930.32

kr 4,930.32

Not Available For Sale

    This combination does not exist.

    Summary Description

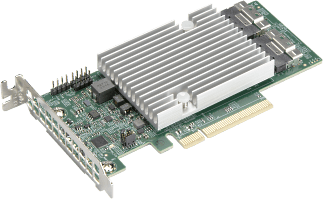

    The Supermicro HBA AOC-S3808L-L8IT features 8 internal SAS connectors using Broadcom's 3808 I/O processors. Optimized for performance with a PCI Express Gen 4.0 host interface, it increases bandwidth significantly.

    Key Features

    • 8 internal SAS connectors
    • Broadcom 3808 SAS controller
    • PCI Express Gen 4.0 interface
    • 12Gb/s data transfer rate
    • Supports up to 122 devices
    • Supermicro certified
    • SlimSAS x8 connector

    Key Applications

    • High-performance storage connectivity
    • Enterprise data centers
    • Server expansion

    Description

    The Supermicro HBA AOC-S3808L-L8IT features 8 internal SAS connectors and is designed for high-performance storage connectivity. Using Broadcom's 3808 I/O processors and PCI Express Gen 4.0 host interface, it supports up to 122 devices via expander backplane. This product is only available through Supermicro and is compatible with Supermicro motherboards only.

    Product Specifications

    Specification Details
    General
    Compliance
    • RoHS Compliant 6/6, Pb Free
    Dimensions
    • 5.4" x 2.71"
