8 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/exp,RoHS

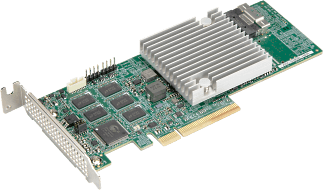

AOC-S3908L-H8IR-O
Summary Description
The Supermicro MegaRAID Low Profile AOC-S3908L-H8iR is designed for high-performance storage connectivity with 8 internal SAS connectors. Built on Broadcom's proven SAS IC technology, it supports RAID 0, 1, 5, 6, 10, 50, and 60 delivering scalable data throughput and reliability.
Key Features
- Low profile x8 PCIe Gen 4.0 interface
- Supports RAID 0, 1, 5, 6, 10, 50, 60, JBOD mode
- 8GB DDR4 onboard cache memory
- Supports SAS and SATA data transfer rates
- Cachevault to protect onboard cache memory
- Supports advanced software encryption
- UEFI configuration utility
- OS Support: Windows/Linux
Key Applications
- Enterprise-class server storage
- High-capacity storage applications
- RAID configurations
- Data protection with Cachevault
Description
The Supermicro MegaRAID Low Profile AOC-S3908L-H8iR features 8 internal SAS connectors for exceptional storage connectivity. Built on Broadcom SAS IC technology, it supports various RAID levels and high-capacity storage. This adapter is ideal for enterprise-class server platforms seeking reliable and scalable storage solutions.
Product Specifications
Specification | Details |
---|---|
Compliance | |
RoHS |
|
Dimensions | |
Width x Depth |
|
Power Consumption | |
Model |
|
Value |
|
Model |
|
Value |
|
General | |
Thermal Operating Range |
|
SAS Data Transfer Rates |
|
SATA Data Transfer Rates |
|
OS Support |
|
Cache Memory |
|
Standard Part List
Part Number | Quantity | Description |
---|---|---|
Add-on Card | ||
AOC-S3908L-H8IR | 1 | Low Profile 12Gb/s 8-Port SAS Internal RAID Adapter, 240DD |
AOC-S3908L-H8IR-16DD | 1 | Low Profile 12Gb/s 8-Port SAS Internal RAID Adapter, 16DD |
AOC-S3908L-H8IR-32DD | 1 | Low Profile 12Gb/s 8-Port SAS Internal RAID Adapter, 32DD |
AOC-S3916L-H16IR | 1 | Low Profile 12Gb/s 16-Port SAS Internal RAID Adapter, 240DD |
AOC-S3916L-H16IR-32DD | 1 | Low Profile 12Gb/s 16-Port SAS Internal RAID Adapter, 32DD |
Optional Part List
Part Number | Quantity | Description |
---|---|---|
Cable | ||
CBL-SAST-1264F-100 | - | Slimline x8 (STR) to 2x Slimline x4 (STR), FFC, 64/64CM, 100-Ohm |
CBL-SAST-1265F-100 | - | Slimline x8 (STR) to Slimline x4 (STR), 64CM, 100-Ohm |
CBL-SAST-1271F-100 | - | Slimline x8 (RE) to 2x Slimline x4 (STR), FFC, 92/71CM, 100-Ohm |
CBL-SAST-1276F-100 | - | Slimline x8 (LE) to 2x Slimline x4 (STR), FFC, 76/76CM, 100-Ohm |
CBL-SAST-1296F-100 | - | Slimline x8 (LE) to 2x Slimline x4 (STR), FFC, 96/96CM, 100-Ohm |
CacheVault Module | ||
BTR-CVPM05 | - | Supercap/TFM Unit for cached data protection |
