2x NVMe M.2 RAID Carrier, Standard LP,RoHS
AOC-SLG3-2NM2-O
Summary Description

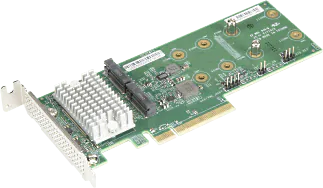

The Supermicro AOC-SLG3-2H8M2 is an M.2 SSD carrier card enabling the addition of up to two NVMe or SATA M.2 SSDs to Supermicro motherboards. Supports leading-edge PCI Express performance with RAID 0 and RAID 1.
Key Features
- Broadcom SAS3408 Tomcat I/O RAID Controller
- x8 PCIe Gen3 Host Interface
- Dual M-Key Sockets
- Adjustable Stand-offs for 22110, 2280, & 2242 M.2 SSDs
- Supports RAID 0, 1
- BMC-enabled Management
- Secure Boot
- On-board LEDs for SSD Activity and Status
- UEFI Configuration Utility
- Thermal Operating Range: 55°C or Higher
Key Applications
- Enterprise Storage Solutions
- Client Systems Storage
- PCI Express Leveraging Applications
- Supermicro Motherboards
Description
Supermicro Low Profile 2x Hybrid NVMe/SATA M.2 RAID Boot Storage Adapter. The Supermicro MegaRAID Low Profile AOC-SLG3-2H8M2 is an M.2 SSD carrier card that enables the user to add up to two NVMe or SATA M.2 SSDs to any X11, X12, H11, or H12 motherboard. M.2 solid state technology is an optimized, high-performance, scalable storage solution, effectively streamlined for enterprise and client systems that leverage the cutting-edge power of PCI Express. AOC-SLG3-2H8M2 supports adjustable stand-offs in 22110, 2280 and 2242 M.2 SSD with RAID 0 and RAID 1. This product is only available through Supermicro. Compatible with Supermicro motherboards only.
Product Specifications
| Specification | Details |
|---|---|
| Compliance | |
| RoHS Compliant |
|
| Dimensions | |
| Height x Length |
|
| Tested Drives | |
| M.2 |
|
| Available SKUs | |
| AOC-SLG3-2H8M2 |
|
| AOC-SLG3-2NM2 |
|
| AOC-SLG3-2SM2 |
|
