Summary Description

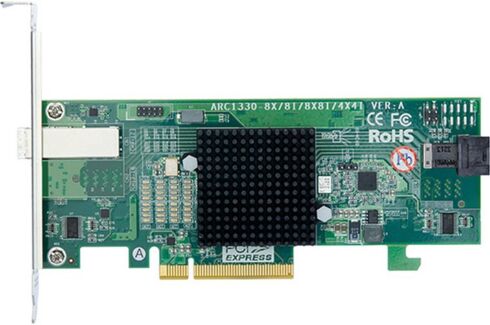

The slim ARC-1330 low-profile host bus adapter from Areca transports SAS data to docked DAS systems in an energy-efficient manner. Manages 12, 6, 3 Gbit/s SAS and 6, 3 Gbit/s SATA data rates. PCI Express interface for compatibility with various systems.
Key Features
- Only 7.5 watts power dissipation
- PCIe 3.0 x8 lanes
- Up to 48 Gbps data rate per SAS port x4
- Supports 2 internal SAS ports (x4) or 8 SATA ports
- Compatible with SAS/SATA drives and SAS components
- System status indication through HDD activity/error headers
Description
Controls up to 128 end devices via SFF-8644 port expander. Ideal for external RAID storage and No-RAID enclosures. Backwards compatible with existing and future RAID and expander solutions.
Product Specifications
| Specification | Details |
|---|---|
| Administration | |
| Serial Port |
|
| General | |
| Active Cooling |
|
| Cooling Type |
|
| PCIe Generation |
|
| Model |
|
| Cache |
|
| Transferrate |
|
| Manufacturer |
|
| Internal Connectors |
|
| Technical Features | |
| Drives (max.) |
|
| Operating Environment | |
| Operating Temperature (min.) |
|
| Operating Temperature (max.) |
|
| Dimensions and Weight | |
| Form Factor |
|
| Expansion and Connectivity | |
| Internal Connectors |
|
