Summary Description

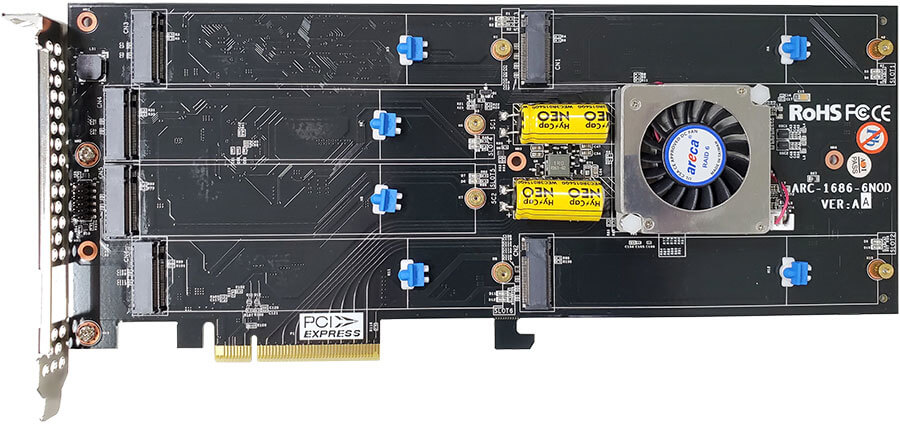

The ARC-1686-6NOD supports 2/4/6 Bays M.2 with hardware secure boot, RAID level/stripe size migration, and SED support for NVMe encryption. It features a 1.6 GHz dual-core ROC processor.
Key Features
- Supports 2/4/6 Bays M.2
- Hardware Secure Boot Ready
- x8 PCIe Gen 4.0 Host Interface
- Support Individual NVMe PowerDisable Feature
- Redundant Flash Image for Adapter Availability
- Capacity Expansion, RAID Level/Stripe Size Migration
- SED Support for NVMe Encryption Capable Drives
- Tri-mode Interface at Each M.2 Bays
- Power Loss Protection with On-board Supercapacitor
Description
The ARC-1686-6NOD is designed with a 1.6 GHz dual-core ROC processor and PCIe Gen 4.0 host/device interface. It supports RAID levels 0, 1, 10, Single Disk, or JBOD, with enhancements including off module power loss protection, on-board supercapacitor, and Power Disable features.
Product Specifications
| Specification | Details |
|---|---|
| General | |
| Form Factor |
|
| Drive Connector |
|
| Drive Support |
|
| Hold-up Supercapacitor |
|
| Performance | |
| I/O Processor |
|
| Operating Voltage |
|
| Power Consumption |
|
| Environmental | |
| Operating Temperature |
|
| Operating Humidity |
|
| Management | |
| Management Port |
|
