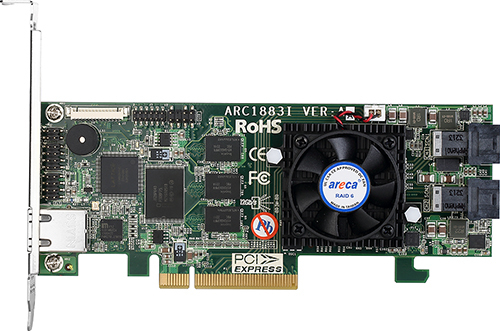

ARECA 1883I 8port 12Gb/s SAS RAID PCIe x8 Card

ARC-1883I
https://safeconsulting.no/web/image/product.template/6133/image_1920?unique=4175d88

kr 9,696.57 9696.57 NOK kr 9,696.57

kr 9,696.57

Not Available For Sale

    This combination does not exist.

    Summary Description

    Areca ARC-1883i. Interfaces: SAS, SATA, Host: PCIe x8. RAID levels: 0, 1, 3, 5, 6, 10, 30, 50, 60, 1E, JBOD. Data rate: 12 Gbps, Memory: 2048 MB. Processor: RAID-on-Chip, 1200 MHz Dual-Core. Power: 12 V, 14.4 W. Dimensions: Depth 169.5 mm, Height 64.4 mm.

    Key Features

    • Supports SAS, SATA interfaces
    • Host: PCI Express x8
    • RAID 0, 1, 3, 5, 6, 10, 30, 50, 60, 1E, JBOD
    • Data transfer rate: 12 Gbps
    • Includes SSD support
    • 1.2 GHz Dual-Core ROC Processor
    • 2048 MB DDR3 1866 Memory
    • Mini SAS HD connectors
    • Advanced data protection
    • Low profile and full height options

    Key Applications

    • Enterprise Data Centers
    • Cloud Computing
    • Database Management
    • High-Performance Computing
    • Web Hosting
    • Virtualization
    • Backup and Recovery
    • Big Data Analytics

    Description

    The third-generation Areca ARC-1883 family provides advanced technology for enhanced performance and superior data protection. Featuring a 1.2 GHz dual-core ROC processor, DDR3-1866 memory, and PCIe 3.0 interface, this controller is ideal for demanding database and IT applications. It offers up to 24 internal ports and 4 external ports with mini SAS HD connectors, delivering 12Gb/s throughput per port.

    Product Specifications

    Specification Details
    Ports & interfaces
    Supported storage drive interfaces
    • SAS,Serial ATA
    Host interface
    • PCI Express x8
    Performance
    RAID levels
    • 0,1,3,5,6,10,30,50,60,1E,JBOD
    RAID Level Migration
    • Yes
    Data transfer rate
    • 12
    SSD support
    • Yes
    Internal memory
    • 2048
    Internal memory type
    • DDR3
    Memory clock speed
    • 1866
    Online Capacity Expansion
    • Yes
    Management protocols
    • SMTP, SNMP
    Certification
    • RoHS
    Processor
    Built-in processor
    • RAID-on-Chip
    Processor frequency
    • 1200
    Processor family
    • Dual-Core
    Power
    Voltage
    • 12
    Power consumption (typical)
    • 14.4
    System requirements
    Windows operating systems supported
    • Yes
    Mac operating systems supported
    • Yes
    Linux operating systems supported
    • Yes
    Operational conditions
    Operating temperature (T-T)
    • 5 - 60
    Storage temperature (T-T)
    • -40 - 70
    Operating relative humidity (H-H)
    • 15 - 80
    Storage relative humidity (H-H)
    • 5 - 90
    Weight & dimensions
    Depth
    • 169.5
    Height
    • 64.4
    Logistics data
    Harmonized System (HS) code
    • 84733080
