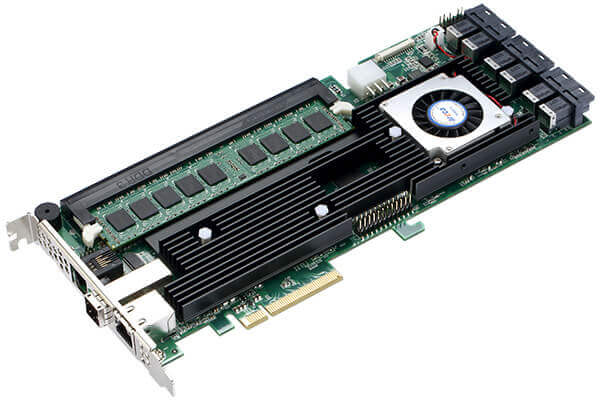

ARECA 16port 12Gb/s SAS RAID PCIe Card

ARC-1883IX-12
https://safeconsulting.no/web/image/product.template/6755/image_1920?unique=a415753

kr 12,453.84 12453.84 NOK kr 12,453.84

kr 12,453.84

Not Available For Sale

    This combination does not exist.

    Summary Description

    The ARC-1883ix-12 offers advanced technology, including a 1.2GHz dual-core ROC processor, DDR3-1866 memory, and PCIe 3.0 connectivity. It supports up to 512 drives and includes extensive RAID configurations.

    Key Features

    • SES2, SMP and SGPIO enclosure management
    • Support read/write cache allocation by policy
    • Redundant flash image for adapter availability
    • Supports up to 8GB DDR3-1866 cache
    • Multiple RAID 0 and RAID 10 (1E) support
    • Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk
    • Supports up to 512 SAS, SATA or SSD drives using SAS expanders
    • Controller level hardware encryption
    • Support optional flash-based backup module using SuperCap or battery
    • DataBolt™ Bandwidth Optimizer

    Key Applications

    • Data Centers
    • Enterprise IT Environments
    • High-Performance Computing
    • Virtualization Solutions
    • Database Management
    • Big Data Analytics
    • Content Delivery Networks
    • Backup and Recovery Operations
    • Cloud Storage Systems
    • RAID Systems for SMBs

    Description

    The Areca ARC-1883ix-12 is designed for high-performance data centers and IT applications, featuring 12 internal ports and 4 external ports, a 1.2 GHz dual-core ROC processor, and DDR3-1866 memory. It provides robust data protection and performance, supporting up to 512 SAS/SATA or SSD drives with 12Gb/s throughput per port.

    Product Specifications

    Specification Details
    General
    RAID Features
    • Multiple RAID 0 and RAID 10(1E) support (RAID 00 and RAID100)
    • Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk
    • Multiple RAID selection
    • Configurable stripe size up to 1MB
    • Support HDD firmware update
    • Online array roaming
    • Online RAID level/stripe size migration
    • Online capacity expansion and RAID level migration simultaneously
    • Online volume set growth
    • SED (self-encrypting drives) function support
    • Instant availability and background initialization
    • Support global and dedicated hot spare
    • Automatic drive insertion/removal detection and rebuilding
    • Support for native 4K and 512 byte sector SAS and SATA devices
    • Support intelligent power management to save energy and extend service life
    • Support NTP protocol synchronize RAID controller clock over the on board Ethernet port
    • Multiple pairs SSD/HDD disk clone function
    • SSD automatic monitor clone (AMC) support
    • Controller level hardware encryption function support
    Operating Systems
    • Microsoft Windows
    • Red Hat Linux, Centos Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux
    • OpenBSD
    • XenServer
    • unRAID
    • Solaris
    • FreeBSD
    • macOS
    • VMware ESXi
    Management Monitor
    McRAID Storage Manager
    • Web-based GUI management utility
    • Remote configuration, monitoring, and notification
    • Graphical-based management utility
    McRAID Utility
    • Command-line interface
    • CIM provider for VMware
    • API code support
    McBIOS Configuration Utility
    • Legacy configuration utility
    • Flashable BIOS support
    • Firmware built-in EFI Shell to launch configuration utility
    Monitors/Notification
    • Global HDD activity/fault connector, individual fault connector
    • LCD/I²C connector and alarm buzzer
    • SNMP
    • SMTP
