  2. ARECA 20port 12Gb/s SAS RAID PCIe Card (16 internal)

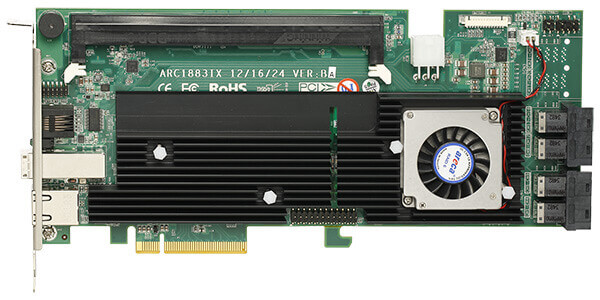

ARECA 20port 12Gb/s SAS RAID PCIe Card (16 internal)

ARC-1883IX-16
https://safeconsulting.no/web/image/product.template/6638/image_1920?unique=3642167

kr 13,923.00 13923.0 NOK kr 13,923.00

kr 13,923.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The ARC-1883ix-16 RAID controller, part of the ARC-1883 series, offers high performance with 12Gb/s SAS/SATA connectivity. Ideal for enterprise and data center applications requiring high-speed data transfer and large storage capacity.

    Key Features

    • 8-Lane PCI Express® 3.0
    • 16 x internal & 4 x external ports
    • Up to 12Gb/s per port
    • Supports up to 512 drives with expander
    • 2GB DDR3-1866 SDRAM cache up to 8GB
    • Supports optional flash-based backup module

    Description

    Product Specifications

    Specification Details
    Cache Memory
    Default
    • One 240-pin DIMM socket for 2GB DDR3-1866, 1RX8
    Up to
    • 4GB or 8GB DDR3-1866, 1RX8
    • 4GB or 8GB DDR3-1600, 2RX8, Unbuffered/ Registered ECC module
    General
    Host Bus Interface
    • 8-Lane PCI Express® 3.0
    Ports
    • 16 x internal & 4 x external
    Drive Connectors
    • 4 x SFF-8643 & 1 x SFF-8644
    Data Transfer Rate
    • Up to 12Gb/s per port
    Physical Dimensions
    • Full Height: 254(L) x 98.4(H) mm
    Power Dissipation
    • Typical: 37.4W
    Operating Temperature
    • 0 °C to 60 °C
    Operating Humidity
    • 10% to 85%, non-condensing
    RAID Levels
    • 0, 1, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD
    RAID-on-Chip Controller
    • Dual Core RAID on Chip (ROC) @ 1.2 GHz
    FBM/BBM Support
    • ARC-1883-CAP (support cache 2GB)
    • ARC-1883-BAT (support cache 4~8GB)
    • ARC-6120BA-T121-12G
