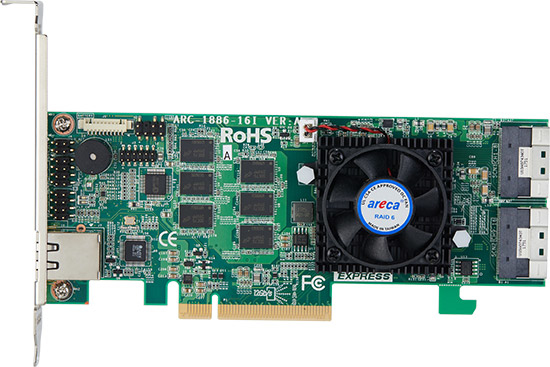

ARECA 16 port Tri Mode RAID PCIe 4 x8, 8GB Cache, 2x SlimSAS (SFF-8654), LP

ARC-1886-16I
https://safeconsulting.no/web/image/product.template/8788/image_1920?unique=a415753

kr 12,580.92 12580.92 NOK kr 12,580.92

kr 12,580.92

Not Available For Sale

    This combination does not exist.

    Summary Description

    Areca ARC-1886-16I. Supported storage drive interfaces: PCI Express 4.0, Host interface: PCI Express x8. RAID levels: 0, 1, 3, 5, 6, 10, 30, 50, 60, JBOD, Data transfer rate: 12 Gbit/s, Internal memory: 8000 MB. Power consumption (typical): 14 W. Width: 167.7 mm, Height: 64.4 mm. Connector(s): x8 SFF-8654

    Key Features

    • Supported storage drive interfaces: PCI Express 4.0
    • Host interface: PCI Express x8
    • RAID levels: 0, 1, 3, 5, 6, 10, 30, 50, 60, JBOD
    • 12 Gbit/s

    Key Applications

    • Data Centers
    • High-Performance Workstations
    • Enterprise Storage Solutions
    • Backup and Recovery Systems
    • Multimedia Servers

    Description

    The Areca ARC-1886-16I RAID controller offers top-notch performance with its PCI Express 4.0 and x8 interface, supporting various RAID levels including 0, 1, 3, 5, 6, 10, 30, 50, 60, and JBOD. It boasts an impressive data transfer rate of 12 Gbit/s and internal memory of 8000 MB DDR4. This controller is perfect for ensuring data integrity and fast access times, making it an excellent choice for data centers and high-performance workstations. Additionally, it supports S.M.A.R.T, ECC, and various management protocols like SNMP and SMTP.

    Product Specifications

    Specification Details
    Ports & interfaces
    Supported storage drive interfaces
    • PCI Express 4.0
    Host interface
    • PCI Express x8
    PCI Express slots version
    • 4.0
    Performance
    RAID levels
    • 0,1,3,5,6,10,30,50,60,JBOD
    Data transfer rate
    • 12
    Internal memory
    • 8000
    Internal memory type
    • DDR4
    Memory clock speed
    • 2666
    JBOD function
    • Yes
    S.M.A.R.T. support
    • Yes
    Management protocols
    • SNMP, SMTP
    ECC
    • Yes
    Power
    Power consumption (typical)
    • 14
    System requirements
    Windows operating systems supported
    • Yes
    Mac compatibility
    • Yes
    Mac operating systems supported
    • Yes
    Linux operating systems supported
    • Yes
    Operational conditions
    Operating temperature (T-T)
    • 0 - 60
    Operating relative humidity (H-H)
    • 10 - 85
    Weight & dimensions
    Width
    • 167.65
    Height
    • 64.4
    Other features
    Connector(s)
    • x8 SFF-8654
    Internal ports
    • 16
