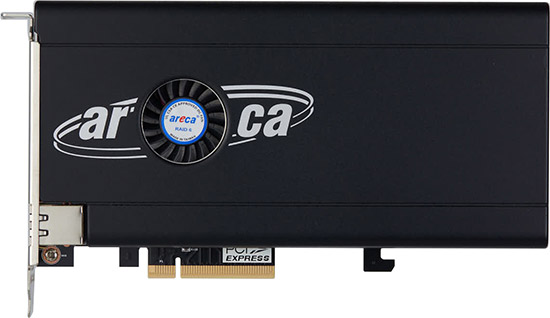

ARECA 4x M.2 + 8Port Tri Mode PCIe 4 x8,

ARC-1886-4N8I
https://safeconsulting.no/web/image/product.template/12499/image_1920?unique=c1c7326

kr 13,127.40 13127.4 NOK kr 13,127.40

kr 13,127.40

Not Available For Sale

    This combination does not exist.

    Summary Description

    The ARC-1886-4N8I offers advanced enterprise data protection and high performance, designed with a 1.6 GHz dual core ROC processor, DDR4-2666 memory, and PCIe 4.0 interface.

    Key Features

    • Support up to 8GB DDR4-2666 cache
    • SFF-9402 compliant connector pin-out
    • Redundant flash image for availability
    • Support up to 512 drives using SAS expanders
    • Tri-mode interface at each drive port
    • Controller level hardware encryption
    • Broad operating support: Windows, Linux, macOS, VMware

    Key Applications

    • Data Center Storage
    • Enterprise Data Protection
    • High Performance Computing
    • Virtualization Environments
    • Database Applications

    Description

    The ARC-1886-4N8I RAID adapter provides both PCIe Gen 4.0 host and 12Gb/s SAS/SATA/PCIe (NVMe) tri-mode storage interfaces. It supports up to 512 drives using SAS expanders and up to 32 NVMe drives through PCIe switches, ensuring robust performance for demanding IT applications.

    Product Specifications

    Specification Details
    General
    Operating Systems
    • Microsoft Windows
    • Red Hat Linux, Centos Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux
    • FreeBSD
    • XenServer
    • unRAID
    • macOS
    • VMware ESXi
    Interface
    Host Bus Interface
    • 8-Lane PCI Express® 4.0
    Data Transfer Rate
    • Up to 12Gb/s SAS/SATA/Gen 4.0 PCIe (NVMe) per port
    Physical
    Dimensions (mm)
    • 205(L) x 107.2(H)
    Connectivity
    Ports
    • 16 x internal
    Drive Connectors
    • 1 x SFF-8654 [x8], 4 x M.2 Connectors
    Environmental
    Power Consumption
    • Approximately 14 Watts
    Operating Temperature
    • 0 °C to 60 °C
    Operating Humidity
    • 10% to 85%, non-condensing
    RAID Features
    RAID Levels
    • 0, 1, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD
    • Multiple RAID 0 and RAID 10 support
    • Supports RAID 1 Multi Mirroring
    Array Management
    • Online array roaming
    • Online RAID level/stripe size migration
    • Online capacity expansion
    Other Features
    • Support intelligent power management
    • Support UNMAP command
    • Controller based hardware encryption
    Management
    McRAID Storage Manager
    • Web-based GUI
    • Remote configuration and monitoring
    • Graphical-based management utility
    McRAID Utility
    • Command-line interface
    • API code support
    Monitors/Notification
    • SNMP
    • SMTP
    • Enclosure management (UBM, SES-2 and SGPIO)
