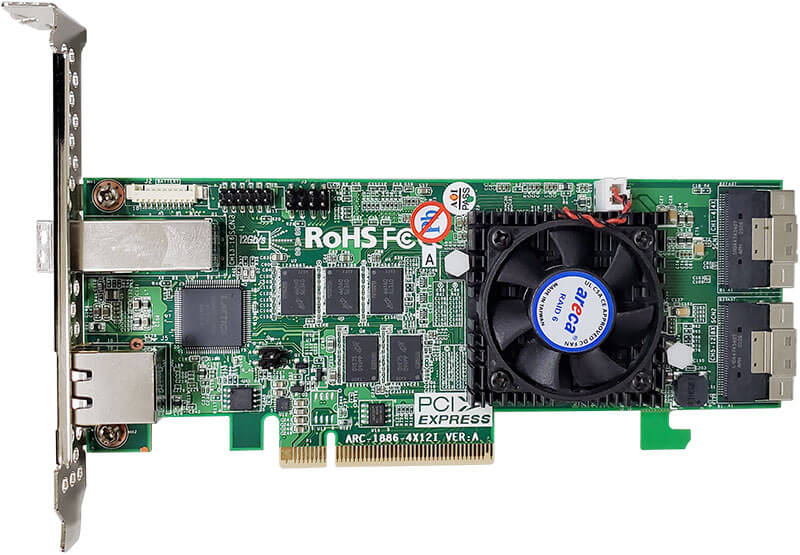

ARECA 16 PORT TRI MODE RAID PCIE 4 X8,

ARC-1886-4X12I
https://safeconsulting.no/web/image/product.template/12496/image_1920?unique=c1c7326

kr 12,663.30 12663.300000000001 NOK kr 12,663.30

kr 12,663.30

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The ARC-1886-4X12I offers advanced performance and enterprise data protection with a dual-core ROC processor and PCIe 4.0 interface, supporting up to 512 SAS/SATA drives and 32 NVMe drives.

    Key Features

    • Support Up to 8GB DDR4-2666 Cache
    • SFF-9402 Compliant Connector Pin-Out
    • Policy-Based Read/Write Cache Allocation
    • Up to 32 NVMe Drives via PCIe Switch
    • Redundant Flash Image Availability
    • UBM, SES2, SMP, and SGPIO Management
    • Support 512 SAS/SATA Drives with Expanders
    • Optional Cache Backup Module with SuperCap
    • Tri-Mode Interface at Each Drive Port
    • RAID Levels 0, 1, 5, 6, 10, 50, 60

    Key Applications

    • Enterprise Data Protection
    • Database Applications
    • Storage Virtualization
    • High-Performance Computing
    • Media and Entertainment
    • Big Data Analytics
    • Virtual Desktop Infrastructure
    • Online Transaction Processing
    • Cloud Storage
    • Data Warehousing

    Description

    The ARC-1886-4X12I provides advanced technology with 1.6 GHz dual-core ROC processor, DDR4-2666 memory, and PCIe 4.0 interface. It supports a maximum of 512 SAS/SATA or 32 NVMe drives, making it suitable for performance-hungry enterprise applications.

    Product Specifications

    Specification Details
    General
    Host Bus Interface
    • 8-Lane PCI Express® 4.0
    Physical Dimensions
    • 167.65 (L) x 64.4 (H) mm
    Ports
    Internal
    • 12 x internal
    External
    • 4 x external
    Connectors
    Internal Connector 1
    • 2 x SFF-8654 [x8]
    External Connector
    • 1 x SFF-8644 [x4]
    Performance
    I/O Processor
    • Tri-Mode Dual Core ARM A15 1.6GHz ROC
    Cache Memory
    • 8GB on-board DDR4-2666 SDRAM with ECC Protection
    Data Transfer Rate
    • Up to 12Gb/s SAS/SATA/Gen 4.0 PCIe (NVMe) per port
    Drive Support
    • Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs using 12Gb/s SAS expander
    • Up to 32 NVMe drives through PCIe switches
    Power Management
    Power Consumption
    • Approximately 14 Watts
    Environment
    Operating Temperature
    • 0 °C to 60 °C
    Operating Humidity
    • 10% to 85%, non-condensing
    Cache Protection
    Cache Protection
    • ARC-1886-CBM
