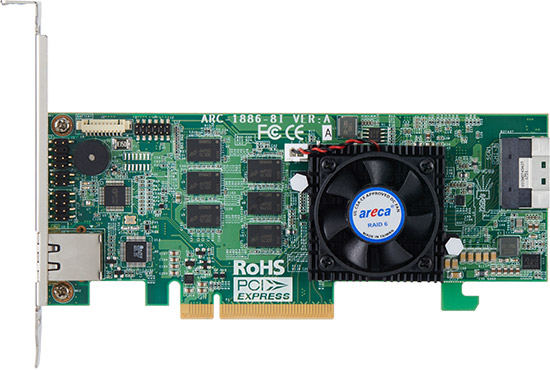

ARECA 8 Port Tri Mode RAID PCIe 4 x8,

ARC-1886-8I
https://safeconsulting.no/web/image/product.template/8760/image_1920?unique=73d2afe

kr 10,939.50 10939.5 NOK kr 10,939.50

kr 10,939.50

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Areca ARC-1886-8I. Supported storage drive interfaces: PCI Express 4.0, Host interface: PCI Express x8. RAID levels: 0, 1, 3, 5, 6, 10, 30, 50, 60, JBOD, Data transfer rate: 12 Gbit/s, Internal memory: 8000 MB. Processor frequency: 1600 MHz, Processor family: Dual-Core. Power consumption (typical): 12 W. Width: 167.7 mm, Height: 64.4 mm

    Key Features

    • Supported storage drive interfaces: PCI Express 4.0
    • Host interface: PCI Express x8
    • RAID levels: 0, 1, 3, 5, 6, 10, 30, 50, 60, JBOD
    • 12 Gbit/s

    Key Applications

    • Enterprise Storage Solutions
    • High-Performance Database Systems
    • IT Infrastructure
    • Data Centers
    • Virtualization Environments
    • Cloud Computing
    • Backup and Disaster Recovery
    • Big Data Analytics
    • Media and Entertainment
    • Scientific Research

    Description

    The new fourth generation ARC-1886 family offers advanced technology for increased performance and improved enterprise data protection. They were designed with 1.6 GHz dual core ROC processor, DDR4-2666 memory and PCIe 4.0 interface for the most performance-hungry database and IT applications. Based on the ARM A15 PCIe 4.0 x8 to SAS/SATA/PCIe RAID on Chip (ROC) controller, the ARC-1886 series RAID adapters can offer both PCIe Gen 4.0 host and 12Gb/s SAS/SATA/PCIe (NVMe) tri-mode storage interfaces.

    Product Specifications

    Specification Details
    Ports & interfaces
    Supported storage drive interfaces
    • PCI Express 4.0
    Host interface
    • PCI Express x8
    PCI Express slots version
    • 4.0
    Performance
    RAID levels
    • 0,1,3,5,6,10,30,50,60,JBOD
    Data transfer rate
    • 12
    Internal memory
    • 8000
    Internal memory type
    • DDR4
    Memory clock speed
    • 2666
    JBOD function
    • Yes
    S.M.A.R.T. support
    • Yes
    Management protocols
    • SNMP, SMTP
    ECC
    • Yes
    Processor
    Built-in processor
    • Yes
    Processor frequency
    • 1600
    Processor family
    • Dual-Core
    Power
    Power consumption (typical)
    • 12
    System requirements
    Windows operating systems supported
    • Yes
    Mac compatibility
    • Yes
    Mac operating systems supported
    • Yes
    Linux operating systems supported
    • Yes
    Operational conditions
    Operating temperature (T-T)
    • 0 - 55
    Operating relative humidity (H-H)
    • 10 - 85
    Weight & dimensions
    Width
    • 167.65
    Height
    • 64.4
    Other features
    Connector(s)
    • x8 SFF-8654
    Internal ports
    • 8
