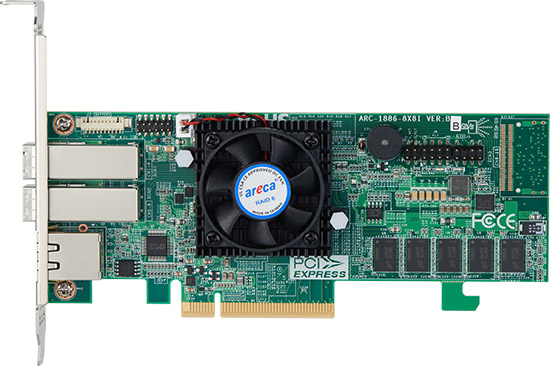

ARECA 8 port Tri Mode RAID PCIe 4 x8,
ARC-1886-8X
Summary Description
The ARC-1886-8X is an 8-port PCIe Gen 4.0 tri-mode RAID adapter that provides high performance and enterprise data protection. It supports various RAID levels and multiple storage interfaces.
Key Features
- 8GB DDR4-2666 cache
- SFF-9402 compliant connector pin-out
- Read/write cache allocation by policy
- Up to 32 NVMe drives support
- Redundant flash image
- UBM, SES2, SMP, and SGPIO enclosure management
- Up to 512 SSD drives support
- Cache backup module protection
- Tri-mode interface on drive ports
- RAID levels support
Key Applications
- Database Servers
- Enterprise IT Applications
- High-Performance Computing
- Virtualization
- Cloud Storage
- Data Centers
Description
The ARC-1886-8X features advanced technology for increased performance and improved enterprise data protection. Designed with a 1.6 GHz dual core ROC processor, DDR4-2666 memory, and PCIe 4.0 interface, it supports up to 32 NVMe drives using PCIe switches and up to 512 SAS, SATA, or SSD drives using SAS expanders.
Product Specifications
| Specification | Details |
|---|---|
| General | |
| Dimensions |
|
| Ports |
|
| Connectors |
|
| Host Bus Interface |
|
| Performance | |
| I/O Processor |
|
| Cache Memory |
|
| Data Transfer Rate |
|
| Compatibility | |
| Drive Support |
|
| Operating Temperature |
|
| Operating Humidity |
|
| Cache Protection |
|
