Areca Desktop JBOD, 8x 12Gb/s SAS HDD's,

ARC-4038-8
https://safeconsulting.no/web/image/product.template/6766/image_1920?unique=a1dbe1e

kr 9,414.60 9414.6 NOK kr 9,414.60

kr 9,414.60

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The ARC-4038-8 SAS-to-SAS JBOD box provides a compact external storage chassis with 8 bays for 12Gb/s SAS or 6Gb/s SATA drives.

    Key Features

    • Four 12Gb/s SFF-8644 Expansion Connections
    • One 6Gb/s SFF-8088 SAS Host (for 8-Bays Enclosure)
    • LED Activity/Status Indicators
    • Daisy Chain Capacity Expansion
    • Plug & Play Add Capacity
    • CLI Support

    Description

    The ARC-4038-8 SAS-to-SAS JBOD box supports up to 8 12Gb/s SAS or 6Gb/s SATA drives. It includes features like LED activity indicators, CLI support for configuration, and daisy-chain expansion capabilities.

    Product Specifications

    Specification Details
    System Architecture
    Data Transfer Rate
    • Up to 12Gb/s per port
    Embedded Processor
    • ARM Cortex-R4 Processor
    Form Factor
    • Desktop 8-Bay
    Internal SAS Ports
    • 8

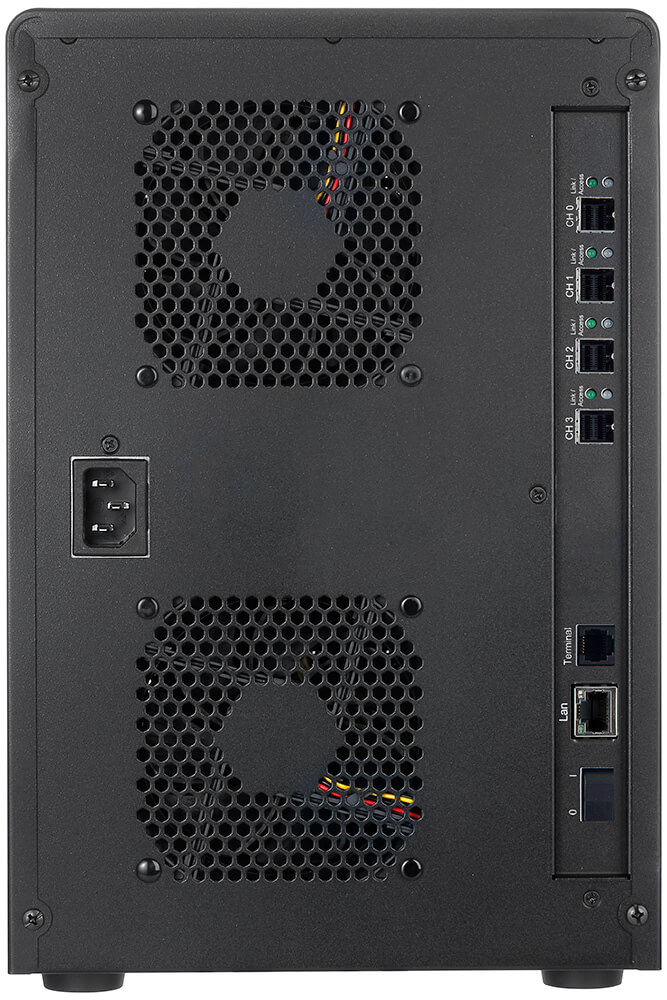

    I/O Connection
    I/O Ports
    • 4 x SFF-8644
    • 1 x SFF-8088
    Management
    Management Interfaces
    • 1 x RJ11 Connector
    • 1 x RJ-45 LAN Connector
    Features
    • In-band SAS Port
    • Out-of-band RS232 Serial Port
    • CLI through RS232 Serial Port
    • Alarm Buzzer
    • External SAS Port LED Indicators
    Cooling
    Cooling Fan
    • 2 x 2700rpm
    Power Supply
    Power Supply Unit
    • 300W
    Environmental
    Operating Temperature
    • 0 °C to 40 °C
    Operating Humidity
    • 10% to 80%, Non-condensing
    Regulatory Certification
    Certifications
    • CE
    • FCC
    Physical Dimensions
    Dimensions (H x W x D)
    • 5.7 x 11.8 x 11.4 in (146 x 302 x 290 mm)
    Weight
    • 14.9 lbs / 6.8 Kg
