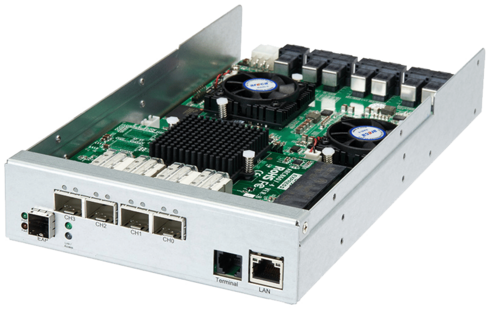

ARECA External 12Gb SAS RAID Controller,

ARC-8088F16-16
https://safeconsulting.no/web/image/product.template/6789/image_1920?unique=c1c7326

kr 22,475.70 22475.7 NOK kr 22,475.70

kr 22,475.70

Not Available For Sale

    This combination does not exist.

    Summary Description

    The ARC-8088 family supports a flexible interface configuration with 8x 12Gbit/s SAS, 2/4x 16Gbit/s FC or 2x 10 Gbit/s iSCSI ports. The system can also be expanded to 256 drives via 4x 12 Gbit/s SAS expansion ports.

    Key Features

    • Up to 24 x 6.0 Gbps SAS disk channels
    • Three host interface options: 12Gbps SAS, 10Gbps iSCSI, or 16Gbps FC
    • Modular design with one or two RAID controllers
    • Support for up to 512 SAS/SATA devices
    • 2GB DDR3-1866 cache
    • Dual-core PPC476 1.2 GHz RAID-on-chip processor

    Description

    The external RAID controllers are thus an ideal solution for enterprise-class storage applications that require maximum flexibility in expansion. 12, 16 or 24 drives with 12 Gbit/s SAS or 6 Gbit/s SATA can be managed in model variants. More bring a redundant controller for fault-tolerant connections via separate host interfaces, while the Single model offers a single, end-to-end data path.

    Product Specifications

    Specification Details
    Administration
    Serial Port
    • Yes
    General
    Active Cooling
    • No
    Cooling Type
    • Aktiv
    Model
    • ARC-8088 Serie
    Cache
    • 2 GB
    Transferrate
    • 12
    Manufacturer
    • Areca
    Internal Connectors
    • 6x SFF-8643
    Other Technical Features
    DrivesMax:
    • 256

    Operating Environment
    Operating TemperatureMin:
    • 0 Celsius (°C)

    Max:
    • 40 Celsius (°C)

    Dimensions and Weight
    Form Factor
    • 5.25"
    Expansion and Connectivity
    External Connections
    • 2x SFP (host)
    • 1x SFF-8644 (expansion)
    Internal Connectors
    • 6x SFF-8643
    Mass Storage Controller
    Supported RAID Level
    • RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk, JBOD
