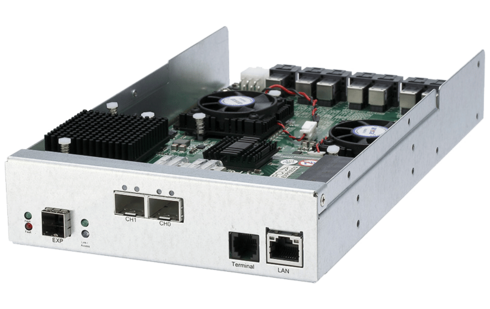

ARECA External 12Gb SAS RAID Controller,

ARC-8088I10-16
https://safeconsulting.no/web/image/product.template/6792/image_1920?unique=c1c7326

kr 20,884.50 20884.5 NOK kr 20,884.50

kr 20,884.50

Not Available For Sale

    This combination does not exist.

    Summary Description

    The ARC-8088I10-16 supports a flexible interface configuration with 8x 12Gbit/s SAS, 2/4x 16Gbit/s FC or 2x 10 Gbit/s iSCSI ports. It can manage up to 512 devices.

    Key Features

    • Up to 24 x 6.0 Gbps SAS disk channels
    • Modular design with one or two RAID controllers
    • 12Gbps SAS, 10Gbps iSCSI, or 16Gbps FC interface options
    • Supports up to 512 SAS/SATA devices
    • 2GB DDR3-1866 cache
    • Dual-core PPC476 1.2 GHz RAID-on-chip processor

    Description

    Areca ARC-8088I10-16 offers high-performance external RAID via various interfaces including SAS, FC, and iSCSI. It features a dual-core PPC476 1.2 GHz RAID-on-chip processor with 2GB DDR3-1866 cache. Ideal for enterprise-class storage applications requiring maximum flexibility and expansion.

    Product Specifications

    Specification Details
    General
    Model
    • ARC-8088 Serie
    Cache
    • 2 GB
    Transferrate
    • 12 Gbps
    Manufacturer
    • Areca
    Active Cooling
    • No
    Cooling Type
    • Aktiv
    Administration
    Serial Port
    • Yes
    Other Technical Features
    Drives (max.)
    • 256
    Operating Environment
    Operating Temperature (min.)
    • 0 Celsius (°C)
    Operating Temperature (max.)
    • 40 Celsius (°C)
    Dimensions and Weight
    Form Factor
    • 5.25"
    Expansion and connectivity
    External Connections
    • 2x SFP+ (host)
    • 1x SFF-8644 (expansion)
    Internal Connectors
    • 4x SFF-8643
    Mass Storage Controller
    Supported RAID Level
    • RAID Level 0
    • RAID Level 1
    • RAID Level 10(1E)
    • RAID Level 3
    • RAID Level 5
    • RAID Level 6
    • RAID Level 30
    • RAID Level 50
    • RAID Level 60
    • Single Disk
    • JBOD
