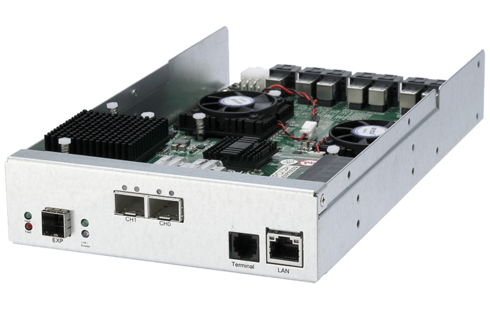

ARECA External 12Gb SAS RAID Controller,

ARC-8088I10-24
https://safeconsulting.no/web/image/product.template/6793/image_1920?unique=c1c7326

kr 24,796.20 24796.2 NOK kr 24,796.20

kr 24,796.20

Not Available For Sale

    This combination does not exist.

    Summary Description

    The ARC-8088 family supports a flexible interface with 8x 12Gbit/s SAS, 2/4x 16Gbit/s FC or 2x 10Gbit/s iSCSI ports. The system can be expanded to 256 drives via 4x 12 Gbit/s SAS expansion ports.

    Key Features

    • Up to 24 x 6.0 Gbps SAS disk channels
    • 12Gbps SAS, 10Gbps iSCSI, or 16Gbps FC host interface options
    • Modular design with RAID controller
    • SAS expander for up to 512 devices
    • 2GB DDR3-1866 cache
    • Dual-core PPC476 1.2 GHz RAID-on-chip processor

    Key Applications

    • Enterprise-Class Storage
    • Flexible Expansion Systems
    • High-Performance RAID Solutions

    Description

    The ARC-8088 series is an ideal solution for enterprise-class storage applications. It features modular design options, supporting up to 256 SAS/SATA devices, and includes dual-core PPC476 1.2 GHz RAID-on-chip processor for high RAID-6 performance and power management.

    Product Specifications

    Specification Details
    Administration
    Serial Port
    • Yes
    General
    Active Cooling
    • No
    Cooling Type
    • Aktiv
    Model
    • ARC-8088 Serie
    Cache
    • 2 GB
    Transferrate
    • 12
    Manufacturer
    • Areca
    Internal Connectors
    • 6x SFF-8643
    Other Technical Features
    Drives (max.)
    • 256
    Operating Environment
    Operating Temperature (min.)
    • 0 Celsius (°C)
    Operating Temperature (max.)
    • 40 Celsius (°C)
    Dimensions and Weight
    Form Factor
    • 5.25"
    Expansion and Connectivity
    External Connections
    • 2x SFP+ (host)
    • 1x SFF-8644 (expansion)
    Internal Connectors
    • 6x SFF-8643
    Mass Storage Controller
    Mass Storage Controller (Supported RAID Level)
    • RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk, JBOD
