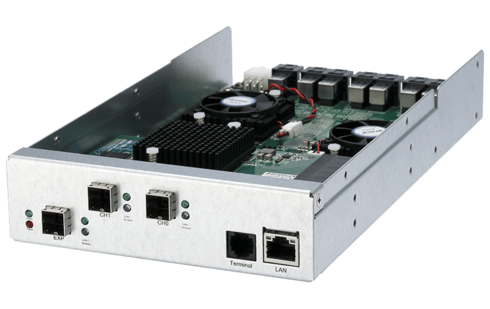

ARECA External 12Gb SAS RAID Controller,

ARC-8088SAS-24
https://safeconsulting.no/web/image/product.template/6787/image_1920?unique=c1c7326

kr 24,796.20 24796.2 NOK kr 24,796.20

kr 24,796.20

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Areca ARC-8088SAS-24 provides external RAID performance via SAS, FC or iSCSI. It supports 24 x 6.0 Gbps SAS disk channels and multiple host interfaces.

    Key Features

    • Supports 24 x 6.0 Gbps SAS disk channels
    • Multiple host interface options: 12Gbps SAS, 16Gbps FC, 10Gbps iSCSI
    • Expandable up to 512 drives via SAS expander
    • 2GB DDR3-1866 cache (FBM/BBM optional)
    • Dual-core PPC476 1.2 GHz RAID-on-chip processor

    Key Applications

    • Enterprise-class storage
    • High-performance RAID
    • Flexible expansion solutions

    Description

    The ARC-8088 family supports flexible interface configurations including 12Gbps SAS, 16Gbps FC, or 10Gbps iSCSI. This system can manage up to 24 drives and is expandable to 512 drives via 12Gbps SAS expansion ports. It is ideal for enterprise-class storage applications requiring maximum flexibility in expansion.

    Product Specifications

    Specification Details
    Administration
    Serial Port
    • Yes
    General
    Active Cooling
    • No
    Cooling Type
    • Aktiv
    Model
    • ARC-8088 Serie
    Cache
    • 2 GB
    Transferrate
    • 12
    Manufacturer
    • Areca
    Internal Connectors
    • 6x SFF-8643
    Other Technical Features
    Drives (Max.)
    • 256
    Operating Environment
    Operating Temperature (Min.)
    • 0 Celsius (°C)
    Operating Temperature (Max.)
    • 40 Celsius (°C)
    Dimensions and Weight
    Form Factor
    • 5.25"
    Expansion and Connectivity
    External Connections
    • 2x SFF-8644 (host), 1x SFF-8644 (expansion)
    Internal Connectors
    • 6x SFF-8643
    Mass Storage Controller
    Supported RAID Levels
    • RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk, JBOD
