ARECA External RAID 0/1/3/5/6 Controller

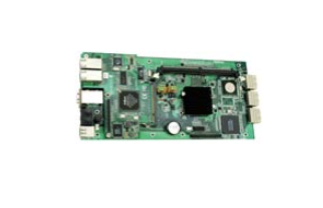

ARC-8300-SAS-16
https://safeconsulting.no/web/image/product.template/6784/image_1920?unique=3642167

kr 25,326.60 25326.600000000002 NOK kr 25,326.60

kr 25,326.60

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Featuring an Intel 800MHz IOP341 I/O processor and up to 2GB DDR2-533 SDRAM, the ARC-8300-SAS-16 provides reliable RAID protection with extreme performance RAID 6 function. Suitable for NAS, server, and multi-media applications.

    Key Features

    • Intel 800MHz IOP341 I/O Processor
    • Up to 2GB DDR2-533 SDRAM with ECC
    • Intel RAID 6 Engine
    • NVRAM for RAID Configuration
    • Write-through or Write-back Cache Support
    • Redundant Flash Image
    • Real Time Clock Support
    • Battery Backup Module Ready

    Key Applications

    • NAS
    • Server
    • Medical Imaging
    • Supercomputing
    • Multi-media On Demand (MOD)
    • Streaming Applications Server

    Description

    The ARC-8300-SAS-16 external RAID controller offers two 1Gb Ethernet channels for iSCSI, supporting up to 128 SAS or SATA II drives. It includes advanced features such as background initialization, instant availability, and automatic drive rebuilds. Ideal for NAS, server, medical imaging, and MOD applications.

    Product Specifications

    Specification Details
    System Architecture
    Processor
    • Intel 800MHz IOP341 I/O Processor
    Memory
    • Up to 2GB DDR2-533 SDRAM on one DIMM socket with ECC protection
    RAID Engine
    • Intel RAID 6 engine to support extreme performance RAID 6 function
    NVRAM
    • For RAID configuration & transaction log
    Cache Support
    • Write-through or write-back cache support
    Flash Image
    • Redundant flash image for adapter availability
    Real Time Clock
    • Support
    BBMBattery Backup Module:
    • ARC-6120BA-T2xx, xx means version no.

    RAID Features
    Levels
    • RAID level 0, 1, 1E, 3, 5, 6, 30, 50, 60 or JBOD
    Online Migration
    • Online RAID level/stripe size migration
    Expansion
    • Online RAID capacity expansion and RAID level migration simultaneously
    Volume Growth
    • Online Volume set growth
    Availability
    • Instant availability and background initialization
    Drive Detection
    • Automatic drive insertion/removal detection and rebuilding
    Volume Size
    • Greater than 2TB per volume set
    Sector Support
    • Support 4K bytes/sector for Windows up to 16TB per volume set
    Disk Scrubbing
    • Disk Scrubbing/Array verify scheduling for automatic repair of all configured raid sets (option)
    Event Log
    • Login record in the event log with IP address and service (http, telnet and serial)
    Drive Spin Down
    • Support spin down drives when not in use to extend service life (MAID)
    NTP Protocol
    • Support NTP protocol to synchronize RAID controller clock over the on-board Ethernet port
    Redundant Operation
    • Active-active redundant controller operation with synchronized write-back cache (This feature in development)
    Firmware Sync
    • Automatic synchronization of firmware version in the redundant mode (option)
    Max Drives
    • Max 128 physical drives
    Max Volumes
    • Max 128 LUNs (volume set) per controller
    Drive Interface
    Drive Support
    • Up to 128 SAS or 3Gb/s SATA II drives using SAS expanders
    Port Speed
    • Up to 3Gb/s per port
    Host Interface
    Iscsi to sas
    • 1Gb iSCSI-to-SAS
    Ethernet
    • Two 1Gb Ethernet Channel - Full iSCSI offload (complete ULP, TCP offload)
    Monitors/Indicators
    Control Panel
    • LCD Control Display Panel for setup, alarm mute and configuration
    Status Indication
    • System Status indication through LCD, LED and alarm buzzer
    Enclosure Management
    • Enclosure management (SES2) ready
    RAID Management
    Firmware Upgrade
    • Field-upgradeable firmware in flash ROM
    Embedded Manager
    • Firmware-embedded manager via RS-232 port
    Web Manager
    • Firmware-embedded Web Browser-based RAID manager - Access your RAID subsystem from any standard internet browser via 10/100 Lan port
    SMTP Manager
    • Firmware-embedded SMTP manager Monitor all system events and user can select either single or multiple user notifications to be sent via 'Plain English' e-mails
    SNMP Agent
    • Firmware-embedded SNMP agent allows remote to monitor events via LAN with no SNMP agent required
    Telnet Access
    • Access terminal menu by telnet via 10/100 Lan port
    API
    • API library for customer to write its own monitor utility
    SAP Management
    • SAP management feature to easily manage multiple RAID units in the network
