H12SSW-NT, CSV-815TS-R504WBP2

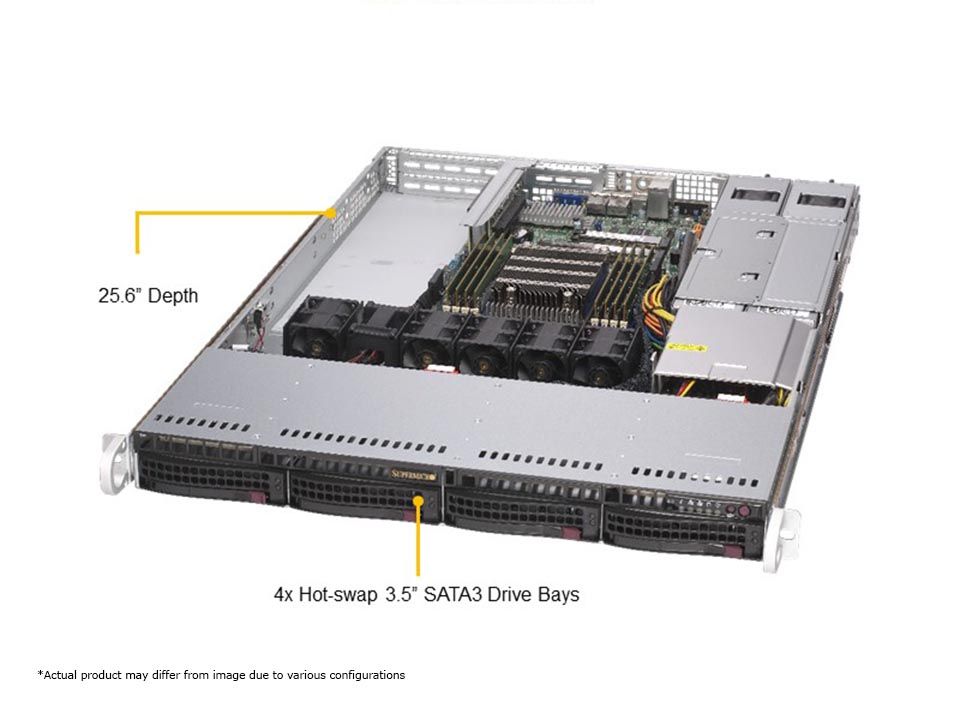

AS -1014S-WTRT

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10645/image_1920?unique=daeccc6

kr 17,006.51 17006.510000000002 NOK kr 17,006.51

kr 17,006.51

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro AS-1014S-WTRT WIO SuperServer supports a Single AMD EPYC™ 7002/7003 Series Processor and up to 2TB DDR4-3200MHz memory. It features 4 hot-swappable 3.5" SATA drive bays and 2 SuperDOM ports for robust storage and data management.

    Key Features

    • • DB Processing & Storage • Data Center Applications • Firewall Applications
    • Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
    • 2 PCI-E 4.0 x16 (FHFL) slots, 1 PCI-E 4.0 x16 (LP) slot
    • Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
    • 4 Hot-swap 3.5" SATA3 drive bays, Optional 4 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
    • 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller
    • 1 VGA, 5 USB 3.0 (4 rear, 1 Type A)
    • 2 SuperDOM (Disk on Module) ports
    • 500W Redundant Power Supplies Platinum Level High-efficiency (Full redundancy based on configuration and application load)

    Key Applications

    • DB Processing & Storage
    • Data Center Applications
    • Firewall Applications

    Description

    Supermicro WIO SuperServer systems allow users to select from a wide range of I/O options to optimize the storage and networking solutions to best fit their applications. The Supermicro AS -1014S-WTRT WIO SuperServer supports a Single AMD EPYC™ 7002/7003 Series Processor and up to 2TB DDR4-3200MHz memory in 8 DIMM slots. It includes 4 hot-swappable 3.5" SATA drive bays and supports up to 2 SuperDOM ports. The server has dual 10GBase-T LAN ports via Broadcom BCM57416 controller. It supports up to 3 PCI-E 4.0 add-on cards (via included riser card), and has a 500W redundant platinum power supply.

    Product Specifications

    Specification Details
    Product SKUs
    AS -1014S-WTRT
    • Standard version with PWS-504P-1R (Platinum Level)
    AS -1014S-WTRT-EU
    • European version with PWS-601A-1R (Titanium Level)
    Motherboard
    Installed Motherboard
    • Super H12SSW-NT
    Processor/Cache
    CPU
    • Single AMD EPYC™ 7003/7002 Series Processor(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • Socket SP3
    • Support CPU TDP up to 280W
    Cores
    • Up to 64 Cores
    System Memory
    Memory Capacity
    • 8 DIMM slots
    • Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
    Memory Type
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SATA3 (6Gbps)
    Network Controllers
    • Dual 10GBase-T LAN with via Broadcom BCM57416
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC
    Input / Output
    NVMe
    • 4 U.2 NVMe Support via optional kit
    SATA
    • 4 SATA3 (6 Gbps) ports
    LAN
    • 2 RJ45 10GBase-T ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 5 USB 3.0 ports (4 rear, 1 Type A)
    Video
    • 1 VGA port
    DOM
    • 2 Super DOM (Disk on Module) ports
    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM
    Management
    Software
    • Super Doctor 5
    • Watch Dog
    • SUM
    • IPMI 2.0 , KVM with dedicated LAN
    Power Configurations
    • ACPI / APM Power Management
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-815TS-R504WBP4
    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 25.6" (650mm)
    Package
    • 7.63" (H) 23.42" (W) 31.45" (D)
    Weight
    • Gross Weight: 46 lbs (20.87kg)
    • Net Weight: 22 lbs (9.98kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs
    • Universal Information (UID) LED
    Expansion Slots
    PCI-Express
    • 2 PCI-E 4.0 x16 (FHFL) slots
    • 1 PCI-E 4.0 * x16 (LP) slot
    • 2 PCI-E / SATA 3.0 x2 NVMe M.2 slots
    • * Limited Support : On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed.
    Drive Bays
    Hot-swap
    • 4 Hot-swap 3.5" SATA3 drive bays
    • Optional 4 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
    Peripheral
    • 1 Slim DVD-ROM drive bay (optional)
    System Cooling
    Fans
    • 4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC
    Power Supply
    • 500W Redundant Power Supplies with PM Bus
    • Note: AS -1014S-WTRT-EU (European) SKU uses PWS-601A-1R (Titanium Level)
    Total Output Power
    • 500W
    Dimension(W x H x L)
    • 54.5 x 40.25 x 320 mm
    Input
    • 100-240Vac, 50-60Hz, 6.1-2.6A
    +12V
    • Max: 42A / Min: 0.5A
    +5Vsb
    • Max: 4A / Min: 0A
    Output Type
    • Gold Finger Connector Mating with Molex 45984-4343
    With Power Distributor
    • +5V: 25A
    • +3.3V: 12A
    • -12V: 0.6A
    Certification
    • Platinum Certified
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Backplane
    • SAS/SATA/NVMe HDD Backplane

    Standard Part List

    Part Number Quantity Description
    Super H12SSW-NT
    SAS/SATA/NVMe HDD Backplane500W Redundant Power Supplies with PMBusNote: AS -1014S-WTRT-EU (European) SKU uses PWS-601A-1R (Titanium Level)
    Motherboard / Chassis
    MBD-H12SSW-NT1Super H12SSW-NT Motherboard
    CSE-815TS-R504WBP411U Chassis
    Backplane
    BPN-SAS3-815TQ-N414-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
    Cable
    CBL-SAST-08271SLIMLINE SAS x8 (LE) to 8 SATA x4,INT, 70CM,32AWG, 85 O
    Riser Card
    RSC-W-66G411U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS
    RSC-WR-611U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
    Heatsink / Retention
    SNK-P0062P11U Passive CPU Heat Sink for AMD Socket SP3 Processors
    Power Supply
    PWS-504P-1R2500W 1U Redundant PWS W/ 54.5MM Wide
    Power Distributor
    PDB-PT112-S24241WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424
    Fan
    FAN-0141L4440x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
    Parts
    MCP-240-00099-0N11U WIO riser card bracket for SC113, SC815, SC119, SC819
    Drive Tray(s)
    MCP-220-00075-0B4Black gen 5.5 hot-swap 3.5" HDD tray
    Rear Window
    MCP-240-00098-0N1WIO rear window for SC113,SC116, SC815 Redundant PWS
    Rail Set
    MCP-290-00054-0N1setRail set, quick/quick, optional for 1U 17.2"W SC815
    Software
    SFT-OOB-LIC1OOB Management Package (per node license)

    Optional Part List

    Part Number Quantity Description
    2.5" to 3.5" Converter Tray
    MCP-220-00043-0N-Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
    2.5" to 3.5" Toolless Converter Tray
    MCP-220-00118-0B-Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
    Optional Kit for 4 U.2 NVMe Drive Support
    CBL-SAST-08172SLIMLINE SAS x8 (LA) to 2x Oculink x4,INT, 36CM,34AWG
    MCP-220-00138-0B4Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab
    DVD-ROM / DVD-RW
    DVM-TEAC-DVD-SBT51TEAC slim DVD-ROM SATA drive
    DVM-PLDS-DVDRW-SBT51PHILPS slim DVD-RW SATA drive
    DVD-ROM Accessory
    MCP-220-81502-0N1Slim SATA DVD mounting kit
    Cooling Fan
    FAN-0141L4240x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
    Storage Controller card & cable
    AOC-S3108L-H8iR1Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
    CBL-SAST-06991MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro
    FAN-0141L4240x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
    AOC-S3108L-H8iR-16DD1Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, 16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
    CBL-SAST-06991MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro
    FAN-0141L4240x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
    AOC-S3008L-L8i1Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 63HDD, RAID 0, 1, 10
    CBL-SAST-06991MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro
    FAN-0141L4240x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
    AOC-S3008L-L8e1Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 122HDD HBA
    CBL-SAST-06991MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro
    FAN-0141L4240x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
    Front Bezels
    CSE-PTFB-813LB-Black front bezels
    CSE-PTFB-813-02B-Black Front Bezel w/ Round Venting Holes
    GPU Kit
    MCP-310-81504-0B1SC815 and SC116 with X11SPW & H12SSW for Tesla T4,RoHS
    FAN-0141L4240x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
    Cable Management Arm
    MCP-290-00085-0N-Supermicro Cable Management Arm for 1U Chassis
    TPM security module
    AOM-TPM-9655V-Vertical TPM with Infineon 9655 TCG 1.2
    AOM-TPM-9665V-AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
    SATADOM
    SSD-DM128-SMCMVN1-SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH
    SSD-DM480-SMCMVN1-SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS
    SSD-DM064-SMCMVN1-SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
    SSD-DM032-SMCMVN1-SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
    MEM-IDSAVS4-032G-SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725)
    MEM-IDSAVM8A-128G-SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411)
    MEM-IDSAVM8A-256G-SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411)
    MEM-IDSAVE1-064G-SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i)
    MEM-IDSAVS3-032G-SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710)
    MEM-IDSAVT1-256G-IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP
