H12SSW-AN6, CSE-LB16TS-R860AWP
To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
Key Features
- Single AMD EPYC™ 7002/7003 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
- 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM

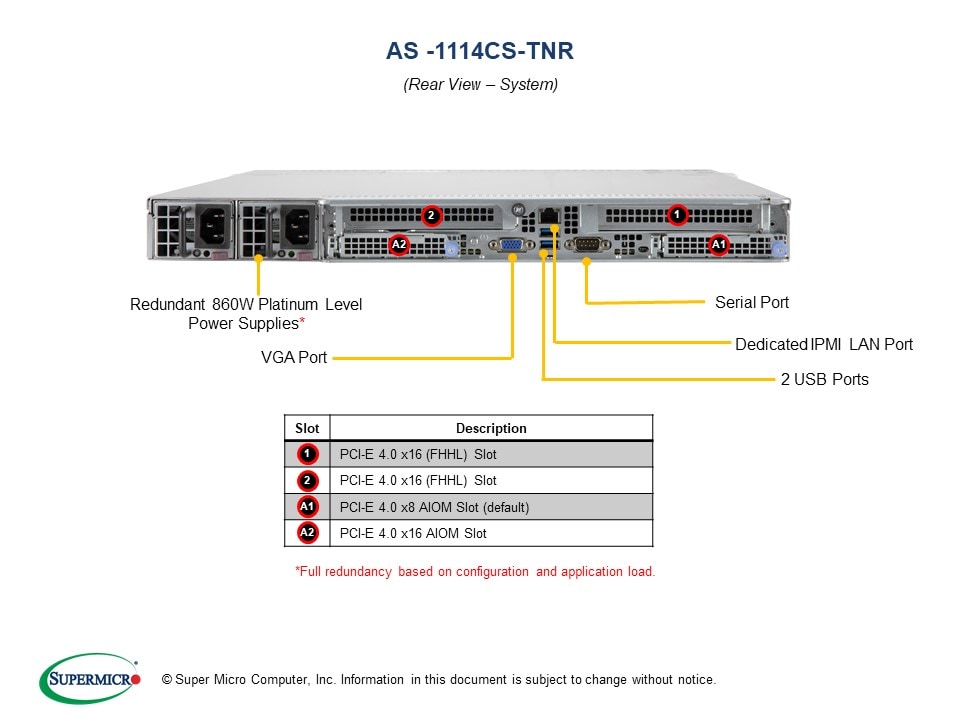

- Expansion slots: 2 PCI-E 4.0 x16 (FHHL) slots, 2 AIOM slots for flexible networking (One x8 AIOM slot and one x16 AIOM slot)
- Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
- 10 Hot-swap 2.5" SATA3 drive bays, optional 10x SAS3/NVMe support via additional SAS/NVMe kit M.2 Interface : 2 PCI-E 4.0 x4
- M.2 Form Factor : 2242, 2260, 2280, 22110 M.2 Key : M-Key
- 2 USB 3.0 ports (rear), 1 VGA, 1 COM, ASPEED AST2600 BMC graphics
- Tool-less Drive Trays and Tool-less Brackets
- 860W Redundant Platinum Level Power Supplies (Full redundancy based on configuration and application load)
Key Applications
- Financial Services
- Cloud Computing
- Network Appliance
- Private Cloud
- Content Delivery Network (CDN)
- Deep Learning Inferencing
Description
The Supermicro AS -1114CS-TNR server is an advanced 1U rackmount system equipped with a single AMD EPYC 7002/7003 Series Processor. Supporting up to 4TB of DDR4-3200MHz RAM, it is ideal for high-performance tasks like financial services, cloud computing, and deep learning inferencing. The server includes 10 hot-swap drive bays and integrated IPMI 2.0 for remote management. It is designed with redundancy in mind, featuring 860W redundant platinum power supplies, and extensive expansion capabilities with multiple PCI-E 4.0 slots. The robust system is housed in a compact chassis with efficient cooling provided by six counter-rotating PWM fans.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| AS -1114CS-TNR |
|
| AS -1114CS-TNR-EU |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor/Chipset | |
| CPU |
|
| Cores |
|
| Note |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| Network Controllers |
|
| IPMI |
|
| Video |
|
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| COM |
|
| Video |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Power Configurations |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Width |
|
| Height |
|
| Package |
|
| Depth |
|
| Gross Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
|
| Drive Bays | |
| Hot-swap |
|
| System Cooling | |
| Fans |
|
| Power Supply | |
| |
| |
| Total Output Power and Input |
|
| Dimension(W x H x L) |
|
| AC Input Frequency |
|
| +12V |
|
| +5Vsb |
|
| Output Type |
|
| Operating Environment | |
| RoHS |
|
| Environmental Spec. |
|
| General | |
| Backplane |
|
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Super H12SSW-AN6 | ||
| SAS/SATA/NVMe HDD Backplane | 800W/860W 1U redundant power supply | Note: AS -1114CS-TNR-EU (European) SKU uses PWS-861A-1R (Titanium Level) |
