H12SSW-NT, CSV-116TS-R504WBP
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
Key Features
- DB Processing & Storage Data Center Applications Firewall Applications
- Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
- 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM

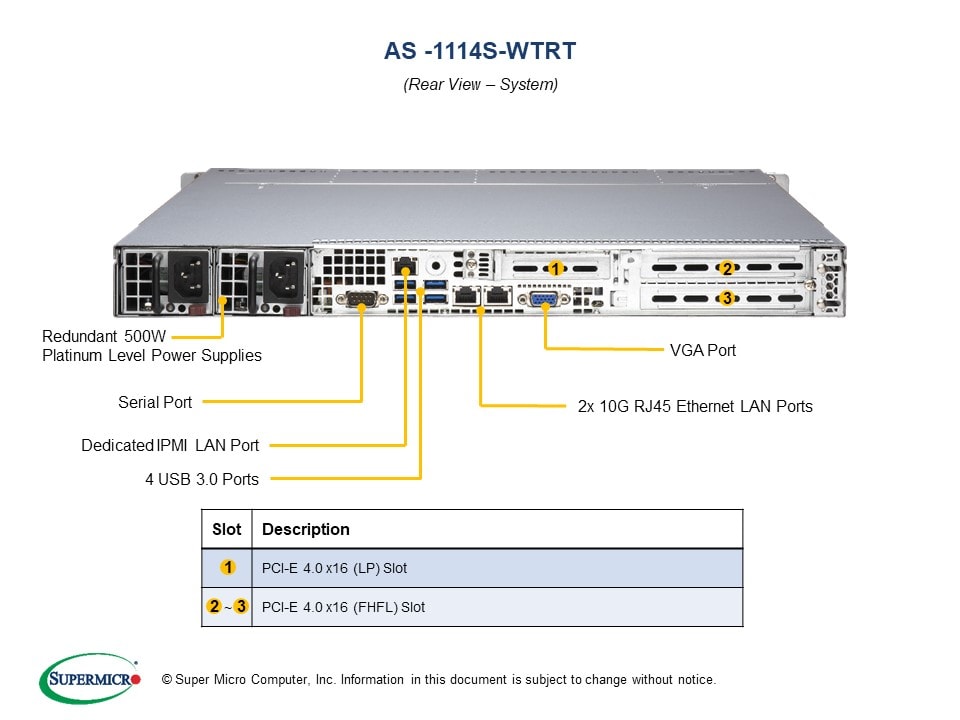

- 2 PCI-E 4.0 x16 (FHFL) slots, 1 PCI-E 4.0 x16 (LP) slot
- Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
- 10 Hot-swap 2.5" SATA3 drive bays, Optional 2 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
- 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller
- 1 VGA, 7 USB 3.0 (4 rear, 2 front, 1 Type A)
- 2 SuperDOM (Disk on Module) ports
- 500W Redundant Power Supplies Platinum Level High-efficiency (Full redundancy based on configuration and application load)
Key Applications
- DB Processing & Storage
- Data Center Applications
- Firewall Applications
Description
The Supermicro AS -1114S-WTRT server is designed for high performance and scalability. It supports a single AMD EPYC™ 7003/7002 Series Processor with up to 64 cores, and up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM in 8 DIMM slots. This server also provides exceptional expansion capabilities with 2 PCI-E 4.0 x16 (FHFL) slots, 1 PCI-E 4.0 x16 (LP) slot, and two PCI-E/SATA 3.0 x2 NVMe M.2 slots. The system integrates IPMI 2.0 + KVM with dedicated LAN for remote management and comes with 10 hot-swap 2.5" drive bays, with optional support for NVMe drives.
Product Specifications
Specification | Details |
---|---|
Product SKUs | |
AS -1114S-WTRT |
|
AS -1114S-WTRT-EU |
|
Motherboard | |
Installed Motherboard |
|
Processor/Cache | |
CPU |
|
Cores |
|
System Memory | |
Memory Capacity |
|
Memory Type |
|
On-Board Devices | |
Chipset |
|
SATA |
|
Network Controllers |
|
IPMI |
|
Video |
|
Input / Output | |
SATA |
|
LAN |
|
USB |
|
Video |
|
DOM |
|
System BIOS | |
BIOS Type |
|
Management | |
Software |
|
Power Configurations |
|
PC Health Monitoring | |
CPU |
|
FAN |
|
Temperature |
|
Chassis | |
Form Factor |
|
Model |
|
Dimensions and Weight | |
Width |
|
Height |
|
Depth |
|
Package |
|
Gross Weight |
|
Available Colors |
|
Front Panel | |
Buttons |
|
LEDs |
|
Expansion Slots | |
PCI-Express |
|
Drive Bays | |
Hot-swap |
|
System Cooling | |
Fans |
|
Power Supply | |
| |
| |
Total Output Power |
|
Dimension(W x H x L) |
|
Input |
|
+12V |
|
+5Vsb |
|
Output Type |
|
With Power Distributor |
|
Certification |
|
Operating Environment | |
RoHS |
|
Environmental Spec. |
|
General | |
Backplane |
|
Standard Part List
Part Number | Quantity | Description |
---|---|---|
Super H12SSW-NT | ||
SAS/SATA HDD Backplane | 500W Redundant Power Supplies with PMBus | Note: AS -1114S-WTRT-EU (European) SKU uses PWS-601A-1R (Titanium Level) |
Motherboard / Chassis | ||
MBD-H12SSW-NT | 1 | Super H12SSW-NT Motherboard |
CSE-116TS-R504WBP2 | 1 | 1U Chassis |
Cable | ||
CBL-SAST-0803 | 1 | SLIMLINE SAS x8 (LE) to 2x MINI SAS HD x4,INT, 37/30CM, |
CBL-SAST-0813 | 1 | SLIMLINE SAS x8 (LA) to SATA x4,INT, 16/26CM,32AWG,RoHS |
Backplane | ||
BPN-SAS3-116A-N2 | 1 | 10-Port 1U Backplane for 8x2.5" SAS3/SATA3 HDD/SSD and 2xSAS2/SATA3 HDD/SSD or NVMe SSD |
Riser Card | ||
RSC-W-66G4 | 1 | 1U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS |
RSC-WR-6 | 1 | 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS |
Heatsink / Retention | ||
SNK-P0062P | 1 | 1U Passive CPU Heat Sink for AMD Socket SP3 Processors |
Power Supply | ||
PWS-504P-1R | 2 | 500W 1U Redundant PWS W/ 54.5MM Wide |
Power Distributor | ||
PDB-PT112-S2424 | 1 | WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424 |
FAN | ||
FAN-0141L4 | 4 | 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan |
Parts | ||
MCP-240-00099-0N | 1 | 1U WIO riser card bracket for SC113, SC815, SC119, SC819 |
Drive Tray(s) | ||
MCP-220-00047-0B | 10 | Black gen 3rd hot-swap 2.5inch HDD tray |
Rear Window | ||
MCP-240-00098-0N | 1 | WIO rear window for SC113,SC116, SC815 Redundant PWS |
Rail Set | ||
MCP-290-00063-0N | 1set | Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH |
Software | ||
SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
Optional Part List
Part Number | Quantity | Description |
---|---|---|
Optional Kit for 2 U.2 NVMe Drive Support | ||
CBL-SAST-0826 | 1 | SLIMLINE SAS x8 (LE) to 2x MINI SAS HD,INT, 70CM,32AWG |
MCP-220-00167-0B | 2 | Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS |
Cooling Fan | ||
FAN-0141L4 | 2 | 440x40x56mm 14.4K-10.7K RPM Counter-rotating Fan |
Storage Controller card & cable | ||
AOC-S3108L-H8iR | 1 | Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, RAID controller, RAID 0, 1, 5, 6, 10, 50, 60 |
CBL-SAST-0593 | 2 | MINI SAS HD,12G,INT,60CM,30AWG |
FAN-0141L4 | 2 | 440x40x56mm 14.4K-10.7K RPM Counter-rotating Fan |
AOC-S3108L-H8iR-16DD | 1 | Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, 16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60 |
CBL-SAST-0593 | 2 | MINI SAS HD,12G,INT,60CM,30AWG |
FAN-0141L4 | 2 | 440x40x56mm 14.4K-10.7K RPM Counter-rotating Fan |
AOC-S3008L-L8i | 1 | Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 63HDD, RAID 0, 1, 10 |
CBL-SAST-0593 | 2 | MINI SAS HD,12G,INT,60CM,30AWG |
FAN-0141L4 | 2 | 440x40x56mm 14.4K-10.7K RPM Counter-rotating Fan |
AOC-S3008L-L8e | 1 | Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 122HDD HBA |
CBL-SAST-0593 | 2 | MINI SAS HD,12G,INT,60CM,30AWG |
FAN-0141L4 | 2 | 440x40x56mm 14.4K-10.7K RPM Counter-rotating Fan |
Front Bezels | ||
MCP-210-11601-0B | 1 | Black front bezels |
Cable Management Arm | ||
MCP-290-00085-0N | - | Supermicro Cable Management Arm for 1U Chassis |
GPU Kit | ||
MCP-310-81504-0B | 1 | SC815 and SC116 with X11SPW & H12SSW for Tesla T4,RoHS |
FAN-0141L4 | 2 | 440x40x56mm 14.4K-10.7K RPM Counter-rotating Fan |
TPM security module | ||
AOM-TPM-9655V | - | Vertical TPM with Infineon 9655 TCG 1.2 |
AOM-TPM-9665V | - | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH |
SATADOM | ||
SSD-DM128-SMCMVN1 | - | SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH |
SSD-DM480-SMCMVN1 | - | SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS |
SSD-DM064-SMCMVN1 | - | SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS |
SSD-DM032-SMCMVN1 | - | SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS |
MEM-IDSAVS4-032G | - | SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725) |
MEM-IDSAVM8A-128G | - | SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411) |
MEM-IDSAVM8A-256G | - | SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411) |
MEM-IDSAVE1-064G | - | SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i) |
MEM-IDSAVS3-032G | - | SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710) |
MEM-IDSAVT1-256G | - | IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP |
Global Services & Support | ||
OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
OSNBD3/2/1 | - | 3/2/1-year onsite NBD service |
Software | ||
SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
