H13SVW-NT, CSE-116BTS-R000WNP, PWS-861A-1R

AS -1115SV-WTNRT

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10681/image_1920?unique=29062ce

kr 20,776.76 20776.760000000002 NOK kr 20,776.76

kr 20,776.76

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro AS-1115SV-WTNRT is a high-performance 1U server designed with a single AMD EPYC 8004 Series Processor. It supports up to 576GB DDR5 memory and offers multiple PCIe slots, hot-swap drive bays, and robust security features, making it ideal for virtualization, database/storage, and edge/cloud computing services.

    Key Features

    • Single Socket AMD EPYC™ 8004 Series Processor
    • 6 DIMM slots, DDR5-4800MHz memory, support up to 576GB
    • 2 PCIe 5.0 x16 FHFL;1 PCIe 5.0 x16 LP
    • Single dedicated IPMI LAN, dual 10GbE BaseT LAN ports via Broadcom BCM57416 Controller
    • 10 Hot-swap 2.5" SATA(default)/NVMe/SAS drive bays or 6 SATA/NVMe hybrid + 4 SATA drive bays (optional cables or SAS controller card for NVMe and SAS drive bays)

    Key Applications

    • Virtualization
    • Data Center Optimized
    • Firewall Applications
    • Database/Storage
    • Edge/Cloud Computing Services

    Description

    The Supermicro AS-1115SV-WTNRT server is engineered for high-performance computing and enterprise applications. It features a single AMD EPYC 8004 Series Processor with support for up to 64 cores and 128 threads. It offers up to 576GB of DDR5 memory with 6 DIMM slots, and includes various PCIe 5.0 slots for expansion. The server comes with 10 hot-swap 2.5" SATA/NVMe/SAS drive bays, dual 10GbE LAN ports, and a dedicated IPMI LAN for remote management. Additionally, it supports various security features such as TPM 2.0, Secure Boot, and system lockdown. Ideal for data center optimization, edge computing, and virtualization.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • A+ Server AS -1115SV-WTNRT
    Motherboard
    Installed Motherboard
    • Super H13SVW-NT
    Processor
    CPU
    • Single processor(s)
    • AMD EPYC™ 8004 Series Processor
    Core Count
    • Up to 64C/128T
    Note
    • Supports up to 225W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 1 double-width or 2 single-width GPUs
    Supported GPU
    • NVIDIA PCIe: L40, L4, A2
    System Memory
    Memory
    • Slot Count: 6 DIMM slots
    • Max Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM
    On-Board Devices
    Chipset
    • System on Chip
    Network Connectivity
    • 2 RJ45 10GBASE-T with Broadcom® BCM57416
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 RJ45 10 GBASE-T LAN port(s)
    USB
    • 2 port(s) (front)
    • 4 port(s) (rear)
    Video
    • 1 VGA port(s)
    Serial
    • 1 COM port(s) (Rear)
    TPM
    • 1 TPM Onboard/port 80
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    BIOS Features
    • ACPI 6.4
    • Plug and Play (PnP)
    • SMBIOS 3.5 or later
    • UEFI 2.8
    • USB Keyboard support
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • 1U redundant 800/860W Titanium AC power supply
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U
    Model
    • CSE-116BTS-R000WNP
    Dimensions and Weight
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 23.5" (597 mm)
    Package
    • 7.75" (H) x 23.5" (W) x 31.5" (D)
    Weight
    • Gross Weight: 33.5 lbs (15.2 kg)
    • Net Weight: 21 lbs (9.53 kg)
    Available Color
    • Black

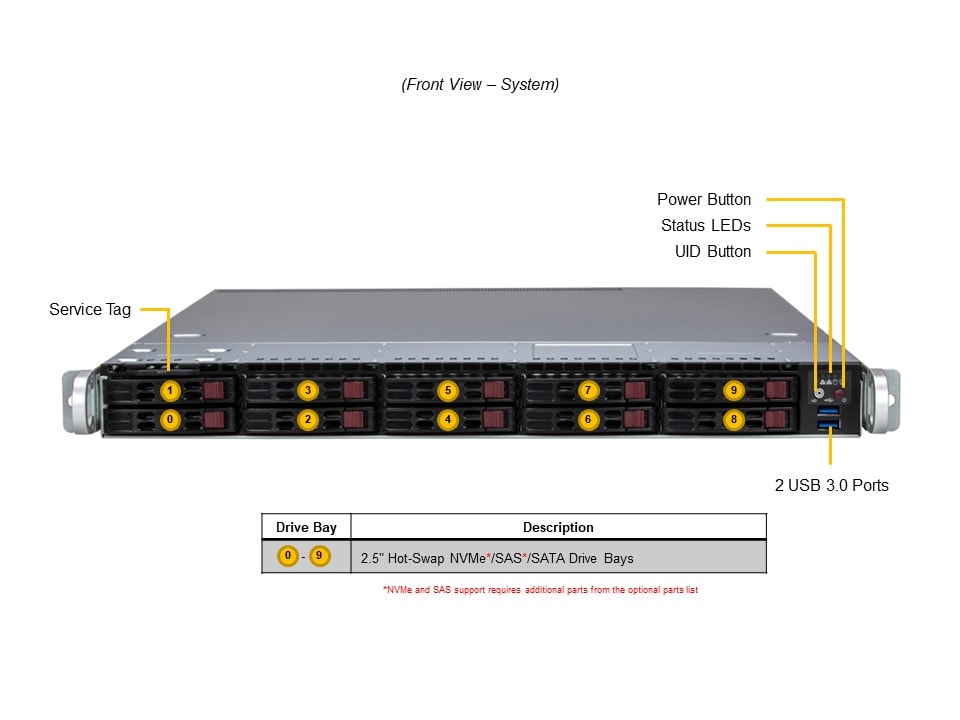

    Front Panel
    LED
    • Fan Fail/System Over Heat LED
    • HDD activity LED
    • Network Activity LEDs
    • Power status LED
    Buttons
    • Power On/Off button
    • Unit Identification (UID) button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 5.0 x16 FHFL slots
    • 1 PCIe 5.0 x16 LP slot

    M.2
    • 2 M.2 PCIe 3.0 x4 NVMe slots (M-key)
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 10 bays:
    • 10 front hot-swap 2.5" NVMe*/SAS*/SATA drive bays

    • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)
    System Cooling
    Fans
    • 6 Heavy duty counter-rotating 40x40x56mm Fan(s)
    Power Supply
    2x 860W Redundant Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 54.5 x 40.25 x 322 mm

    AC Input:
    • 800W: 100-127Vac / 50-60Hz
    • 860W: 200-240Vac / 50-60Hz
    • 860W: 240Vdc / 50-60Hz

    +12V:
    • Max: 66.67A / Min: 0A (100Vac-127Vac)
    • Max: 71.67A / Min: 0A (200Vac-240Vac)
    • Max: 71.67A / Min: 0A (Vdc-240Vdc)

    5V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    • Operating Relative Humidity: 8% to 80% (non-condensing)
    • Non-operating Relative Humidity: 8% to 90% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-H13SVW-NT1Super H13SVW-NT Motherboard
    CSE-116BTS-R000WNP11U Chassis
    Backplane
    BPN-NVME5-LB16A-S1011U 10-port hybrid backplane for SAS3/SATA3/NVME5 storage
    Cable
    CBL-CDAT-072814 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
    CBL-MCIO-1227EQS41MCIO X8/STR+pTab to SlimSAS X4/STR+pTab,27CM,32AWG,RoHS
    CBL-MCIO-1243S4Y1(MCIO x8 to 2 SlimSAS x4), STR, 43cm, 85Ohm, RoHS,RoHS
    CBL-0335L1FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
    CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    Fan
    FAN-0163L4640x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
    Front Panel
    MCP-280-00033-0N1Universal Thermal sensor kit with 80cm I2C cable
    FPB-FP116-DU31Front control board with two USB 3.0 for SC116/SC119X
    Power Supply
    PWS-861A-1R21U redundant 800/860W Titanium AC power supply 54.5x40x322mm
    MCP-250-00009-0N1SC113 Redundant Power Distributor Cover
    Riser Card
    RSC-W-66G511U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R
    RSC-WR-6G5H11U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoHS
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0062P-111U Passive CPU Heat Sink for AMD Socket SP6 Processors
    *Power Distributor
    PDB-PT116-SL88241Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
    *Drive Tray(s)
    MCP-220-00047-0B10Black gen 3rd hot-swap 2.5inch HDD tray
    *Rear Window
    MCP-240-00202-0N11U WIO rear window to support top-load riser bracket for SC815B,SC116B
    *Rail Set
    MCP-290-00016-0N11U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
    MCP-290-00063-0N1setRail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
    MCP-290-00102-0N1 setOuter rail, quick-release type, 25.6
    MCP-290-00108-0N1 setInner rail, front, short, quick-release type
    MCP-290-00112-0N1 setInner rail, extension, long (quick) for 1U 17.2W chassis
    *Air Shroud
    MCP-310-11606-0B1Air block for 1U WIO SC116B with X13SEW
    *Fan Holder
    MCP-320-00027-0B24Plastic pin for 40x28, 40x56 fan
    MCP-320-00028-0B1Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116
    MCP-340-00035-0B2Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)

    Optional Part List

    Part Number Quantity Description
    Cable Management Arm
    MCP-290-00152-0N11U Supermicro Cable Management Arm 2nd Gen
    Front Bezel
    MCP-210-11601-0B1Black Front Bezel
    NVMe Cable (Drive Bay 0-1)
    CBL-MCIO-1326M51MCIO (x8 to x8), STR, 26cm,G5,32AWG
    NVMe Cable (Drive Bay 2-3)
    CBL-MCIO-1340M5-11MCIO x8 (STR to STR), semi-flat, 40cm,32AWG
    NVMe Cable (Drive Bay 4-5)
    CBL-MCIO-1340M5-11MCIO x8 (STR to STR), semi-flat, 40cm,32AWG
    NVMe Cable (Drive Bay 6-7)
    CBL-MCIO-1326M51MCIO (x8 to x8), STR, 26cm,G5,32AWG
    NVMe Cable (Drive Bay 8-9)
    CBL-MCIO-1218M51MCIO x8 (STR to STR),18CM,85OHM
