H12DSU, 119UHTS-R1K22HP-A,RoHS

AS -1124US-TNR

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10656/image_1920?unique=daeccc6

kr 29,692.66 29692.66 NOK kr 29,692.66

kr 29,692.66

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

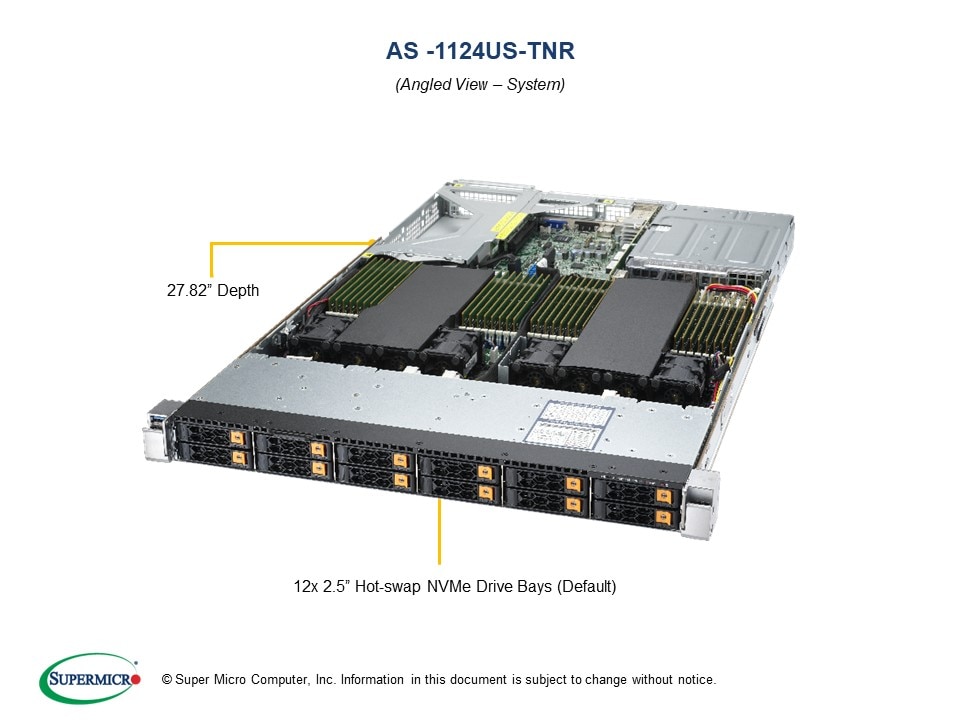

    The Supermicro AS -1124US-TNR is a high-end enterprise server designed for virtualization, cloud computing, and other demanding applications. Featuring dual AMD EPYC 7003/7002 Series Processors, it supports up to 8TB of DDR4 Registered ECC memory across 32 DIMMs and includes 12 hot-swap 2.5" U.2 NVMe drive bays.

    Key Features

    • Virtualization - Cloud Computing - High End Enterprise Server
    • Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
    • Expansion slots: Must bundle with optional Ultra Riser Card 2 PCI-E 4.0 x16 (FH, 9.5"L), 1 PCI-E 4.0 x16 (LP), 1 PCI-E 4.0 x16 (internal proprietary LP slot) * [ Details ] * Ultra Riser Card must be bundled in order to enable this slot
    • Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
    • Flexible Ultra Riser/Network options – see Optional Parts List
    • Drive Bays: 12 Hot-swap 2.5" U.2 NVMe drive bays or SATA3/SAS3 (via optional SAS kit)
    • 1200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)

    Key Applications

    • Virtualization
    • Cloud Computing
    • High-End Enterprise Server

    Description

    The Supermicro AS -1124US-TNR server offers powerful computing capabilities for enterprise environments. Utilizing dual AMD EPYC 7003/7002 Series Processors, the server supports up to 8TB of DDR4 Registered ECC memory over 32 DIMM slots. For data storage, it includes 12 hot-swap 2.5" U.2 NVMe drive bays, with an option for SATA3 or SAS3 configurations. The integrated IPMI 2.0 with KVM and dedicated LAN ensures efficient remote management. Featuring flexible expansion options, 1200W redundant power supplies with Titanium Level efficiency, and extensive environmental operation support, the AS -1124US-TNR serves as a reliable and scalable solution for various high-end applications.

    Product Specifications

    Specification Details
    Product SKUs
    AS -1124US-TNR
    • A+ Server 1124US-TNR ( Black )
    Motherboard
    Installed Motherboard
    • Super H12DSU-iN
    Processor/Cache
    CPU
    • Dual AMD EPYC™ 7003/7002 Series Processors(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • Socket SP3
    • Supports CPU TDP up to 280W*
    Cores
    • Up to 64 Cores
    Note
    • * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Safe Consulting Technical Support for additional information about specialized system optimization
    System Memory
    Memory Capacity
    • 32 DIMM slots
    • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
    • 8-channel memory bus
    Memory Type
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip (SoC)
    SATA
    • SATA3 (6Gbps)
    NVMe
    • NVMe (16GT/s)
    Network Connectivity
    • Flexible Ultra Riser/Network options – see Optional Parts List
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Input / Output
    NVMe
    • 12 NVMe ports (default)
    LAN
    • Flexible Ultra Riser/Network options – see Optional Parts List
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 4 USB 3.0 ports(2 rear + 1 Type A + 1 front)
    VGA
    • 1 VGA port
    SAS
    • 12 SAS3 ports support via optional SAS kit
    SATA
    • 12 SATA3 ports support via optional kits
    Others
    • 1 COM port (rear)
    • 2 SATA DOM power connectors
    • TPM 2.0 header
    System BIOS
    BIOS Type
    • AMI 128Mb SPI Flash EEPROM
    Management
    Software
    • Intel® Node Manager
    • Redfish API
    • IPMI 2.0
    • KVM with dedicated LAN
    • NMI
    • SSM , SPM , SUM
    • SuperDoctor® 5
    Power Configurations
    • ACPI Power Management
    • Power-on mode control for AC power loss recovery
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-119UHTS-R1K22HP-A
    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 29.1" (739mm)
    Package
    • 7.8" (H) 23.66" (W) 37.13" (D)<br>198mm (H) x 601mm (W) x 943mm (D)
    Gross Weight
    • 48 lbs (21.8 kg)
    Available Color
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System UID button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • UID LED
    Expansion Slots
    PCI-Express
    • 2 PCI-E 4.0 x16 (FH/HL, 9.5"L)
    • 1 PCI-E 4.0 x16 (LP)
    • 1 PCI-E 4.0 x16 (internal proprietary LP slot)*
    Drive Bays
    Hot-swap
    • 12 Hot-swap 2.5" U.2 NVMe drive bays
    Backplane
    HDD Backplane
    • Supports 12 NVMe or 12 SAS3 HDD or 12 SATA3
    System Cooling
    Fans
    • 8 Heavy duty fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud
    Power Supply
    • 1200W Redundant Power Supplies with PM Bus
    Total Output Power
    • 800W: 100 – 127Vac
    • 1200W: 200 – 240Vac
    • 1200W: 200 -240Vdc (for CCC only)
    Dimension(W x H x L)
    • 73.5 x 40 x 203 mm
    Input
    • 100-127Vac / 9.8 - 7A / 50-60Hz
    • 200-240Vac / 7.5 - 6A / 50-60Hz
    • 200-240Vdc / 7.5 - 6A (for CCC only)
    +12V
    • Max: 66.7A / Min: 0A (100-127Vac)
    • Max: 100A / Min: 0A (200-240Vac)
    • Max: 100A / Min: 0A (200-240Vdc)
    +12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 30°C (50°F ~ 86°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
