H12DSU, 119UHTS-R1K22HP-A , AOC-URG4N4-I4XTS

AS -1124US-TNRP

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/8875/image_1920?unique=73d2afe

kr 32,200.81 32200.81 NOK kr 32,200.81

kr 32,200.81

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro AS -1124US-TNRP is a high-performance 1U rackmount server, equipped with dual AMD EPYC 7003/7002 processors, supporting up to 64 cores, and up to 8TB ECC DDR4 memory in 32 DIMM slots. It features 12 Hot-swap 2.5" U.2 NVMe drive bays or SATA3/SAS3, integrated IPMI 2.0 + KVM with dedicated LAN, and dual-port 10GBase-T and 10G SFP+ connectivity.

    Key Features

    • Virtualization - Cloud Computing - High End Enterprise Server
    • Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
    • Expansion slots: 2 PCI-E 4.0 x16 (FH, 9.5"L), 1 PCI-E 4.0 x16 (LP), 1 PCI-E 4.0 x16 (internal proprietary LP slot) [ Details ]
    • Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
    • Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel X710-TM4
    • Drive Bays: 12 Hot-swap 2.5" U.2 NVMe drive bays or SATA3/SAS3 (via optional SAS kit)
    • 1200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)

    Key Applications

    • Virtualization
    • Cloud Computing
    • High End Enterprise Server

    Description

    Ideal for virtualization, cloud computing, and high-end enterprise applications, the Supermicro AS -1124US-TNRP features dual AMD EPYC 7003/7002 Series Processors with support for up to 64 cores, 32 DIMM slots with up to 8TB ECC DDR4 memory, and 12 Hot-swap 2.5" U.2 NVMe or SATA3/SAS3 drive bays. Advanced management capabilities include integrated IPMI 2.0 with KVM-over-LAN, Redfish API, and full support for SuperDoctor 5. Expansion is facilitated with multiple PCI-Express 4.0 slots and network versatility through dual 10GBase-T and 10G SFP+ ports. The system operates efficiently with 1200W Redundant Power Supplies Titanium Level, ensuring reliability and performance in demanding environments.

    Product Specifications

    Specification Details
    Product SKUs
    AS -1124US-TNRP
    • A+ Server 1124US-TNRP ( Black )
    Motherboard
    Installed Motherboard
    • Super H12DSU-iN
    Processor/Cache
    CPU
    • Dual AMD EPYC™ 7003/7002 Series Processors(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • Socket SP3
    • Supports CPU TDP up to 280W*
    Cores
    • Up to 64 Cores
    Note
    • * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Safe Consulting Technical Support for additional information about specialized system optimization
    System Memory
    Memory Capacity
    • 32 DIMM slots
    • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
    • 8-channel memory bus
    Memory Type
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip (SoC)
    SATA
    • SATA3 (6Gbps)
    Network Connectivity
    • Networking options provided via Ultra Riser card
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC
    Input / Output
    NVMe
    • 12 NVMe ports (default)
    LAN
    • Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel X710-TM4
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 4 USB 3.0 ports(2 rear + 1 Type A + 1 front)
    VGA
    • 1 VGA port
    SAS
    • 12 SAS3 ports support via optional SAS kit
    SATA
    • 12 SATA3 ports support via optional kits
    Others
    • 1 COM port (rear)
    • 2 SATA DOM power connectors
    • TPM 2.0 header
    System BIOS
    BIOS Type
    • AMI 128Mb SPI Flash EEPROM
    Management
    Software
    • Redfish API
    • IPMI 2.0
    • KVM with dedicated LAN
    • SSM , SPM , SUM
    • SuperDoctor® 5
    Power Configurations
    • ACPI Power Management
    • Power-on mode control for AC power loss recovery
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-119UHTS-R1K22HP-A
    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 29.1" (739mm)
    Package
    • 7.8" (H) 23.66" (W) 37.13" (D)<br>198mm (H) x 601mm (W) x 943mm (D)
    Gross Weight
    • 48 lbs (21.8 kg)
    Available Color
    • Black

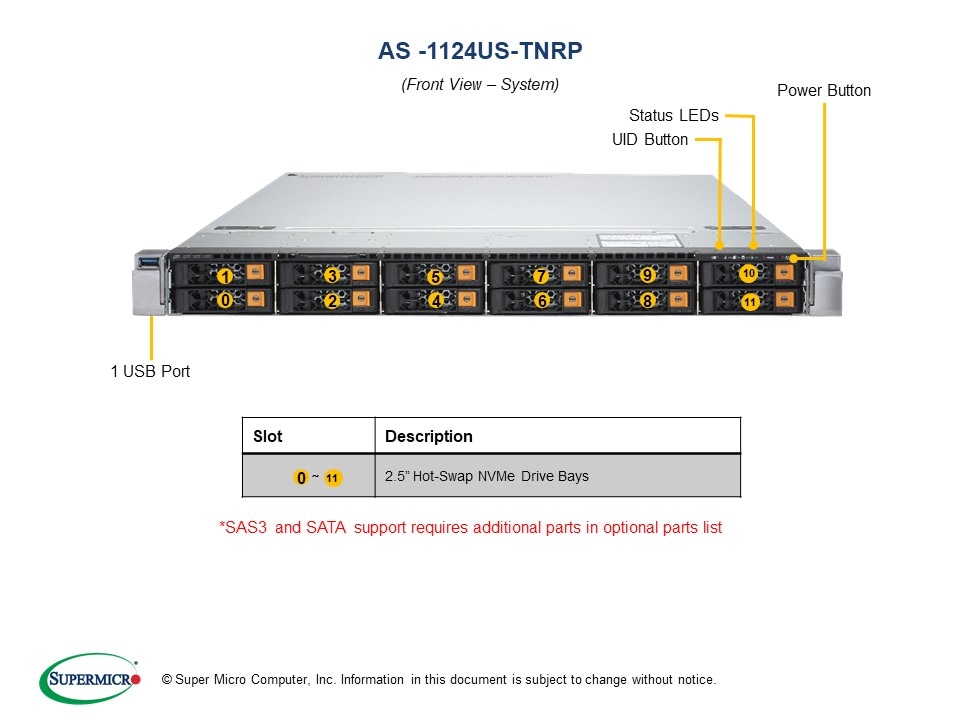

    Front Panel
    Buttons
    • Power On/Off button
    • System UID button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • UID LED
    Expansion Slots
    PCI-Express
    • 2 PCI-E 4.0 x16 (FH/HL, 9.5"L)
    • 1 PCI-E 4.0 x16 (LP)
    • 1 PCI-E 4.0 x16 (internal proprietary LP slot)
    Drive Bays
    Hot-swap
    • 12 Hot-swap 2.5" U.2 NVMe drive bays
    Backplane
    HDD Backplane
    • Supports 12 NVMe or 12 SAS3 HDD or 12 SATA3
    System Cooling
    Fans
    • 8 Heavy duty fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud
    Power Supply
    • 1200W Redundant Power Supplies with PM Bus
    Total Output Power
    • 800W: 100 – 127Vac
    • 1200W: 200 – 240Vac
    • 1200W: 200 -240Vdc (for CCC only)
    Dimension(W x H x L)
    • 73.5 x 40 x 203 mm
    Input
    • 100-127Vac / 9.8 - 7A / 50-60Hz
    • 200-240Vac / 7.5 - 6A / 50-60Hz
    • 200-240Vdc / 7.5 - 6A (for CCC only)
    +12V
    • Max: 66.7A / Min: 0A (100-127Vac)
    • Max: 100A / Min: 0A (200-240Vac)
    • Max: 100A / Min: 0A (200-240Vdc)
    +12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 30°C (50°F ~ 86°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
