  2. H12SST-PS, CSE-827HQ+-R2K04BP2, UP,SATA 2U 4 Nodes 3.5"

H12SST-PS, CSE-827HQ+-R2K04BP2, UP,SATA 2U 4 Nodes 3.5"

SKU: AS -2014TP-HTR
Brand: Supermicro
Product Note:

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10659/image_1920?unique=04e8906

kr 47,294.26 47294.26 NOK kr 47,294.26 VAT Excluded

kr 47,294.26 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

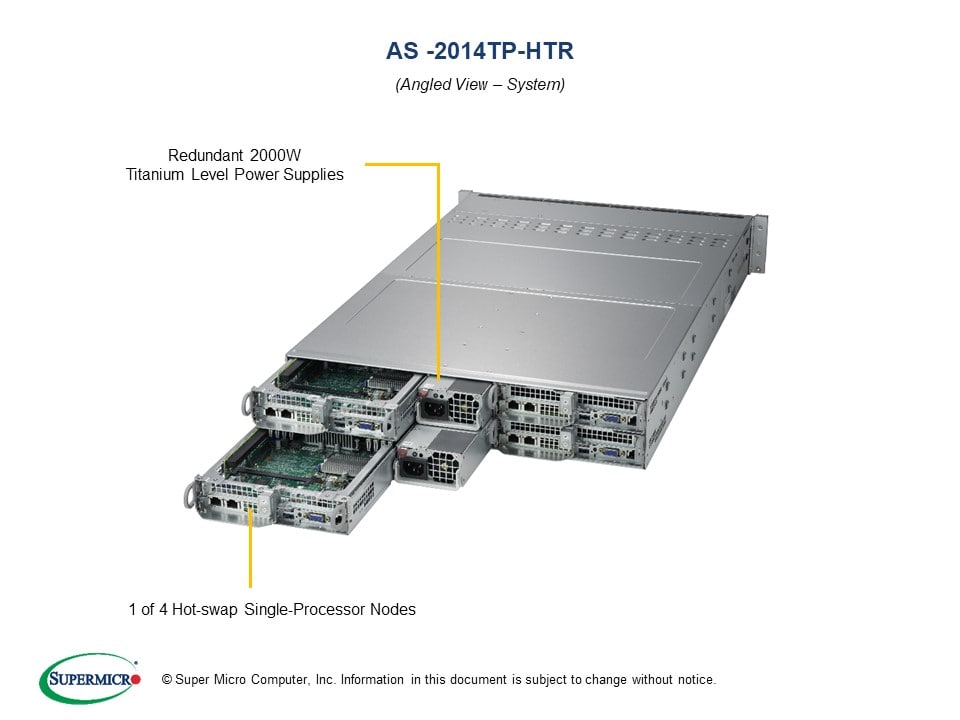

    The Supermicro AS -2014TP-HTR is a 2U, 4-node server designed for compute-intensive applications such as HPC, data centers, and enterprise servers. It supports AMD EPYC™ 7003/7002 processors, up to 2TB of memory, flexible networking, and efficient thermal design.

    Key Features

    • Compute Intensive Applications - HPC, Data Center, Enterprise Server - Hyperscale / Hyperconverged
    • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
    • Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • Up to 2TB ECC 3DS LRDIMM, up to DDR4-3200MHz; 8 DIMM slots
    • 2 PCI-E 4.0 x16 (LP) slots
    • Flexible Networking support via SIOM; Dedicated IPMI 2.0 LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
    • 3 Hot-swap 3.5" SATA3 drive bays M.2 Interface : 4 SATA/PCI-E 4.0 x4 M.2 Form Factor : 2280, 22110, 2260, 2242 M.2 Key : M-key
    • 2000W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)

    Key Applications

    • HPC
    • Data Center
    • Enterprise Server
    • Hyperconverged
    • Hyperscale

    Description

    The Supermicro AS -2014TP-HTR offers a high-performance 2U, 4-node server solution optimized for a variety of demanding applications. Each node supports a single AMD EPYC™ 7003/7002 Series Processor, providing exceptional compute power and energy efficiency. The server accommodates up to 2TB of ECC DDR4 memory and features versatile storage and networking options, including hot-swap drive bays, PCI-E slots, and SIOM networking support. With its robust IPMI management, Titanium Level redundant power supplies, and comprehensive environmental specifications, the AS -2014TP-HTR is engineered to deliver superior performance and reliability.

    Product Specifications

    Specification Details
    Product SKUs
    AS -2014TP-HTR
    • A+ Server 2014TP-HTR
    Processor/Chipset (per Node)
    CPU
    • Single AMD EPYC™ 7003/7002 Series Processor(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • Socket SP3
    • Supports CPU TDP / cTDP up to 280W*
    Cores
    • Up to 64 Cores
    System Memory (per Node)
    Memory Capacity
    • 8 DIMM slots
    • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
    • 8-channel memory bus
    Memory Type
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    Memory Sizes
    • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices (per Node)
    Chipset
    • System on Chip
    Storage
    • SATA3 (6Gbps) via AMD EPYC
    Network Controllers
    • Barebones and Complete System must have at least one SIOMinstalled per node
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC
    Input / Output (per Node)
    LAN
    • Provided via SIOM (optional)
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    • 1 USB 2.0 port (Type A)
    Video
    • 1 VGA port
    DOM
    • 1 Super DOM (Disk on Module) port
    Others
    • 2 COM ports (header)
    • 1 TPM 2.0 header
    System BIOS (per Node)
    BIOS Type
    • AMI 128Mb SPI Flash ROM
    Management (per Node)
    Software
    • IPMI 2.0
    • KVM with dedicated LAN
    • SSM , SUM
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • ACPI / APM Power Management
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-827HQ+-R2K04BP2
    Dimensions and Weight
    Width
    • 17.25" (438mm)
    Height
    • 3.47" (88mm)
    Depth
    • 30.5" (774mm)
    Package
    • 26.4" (W) x 11.2" (H) x 39.8" (D)
    Weight
    • Gross Weight: 85 lbs (38.6 kg)
    • Net Weight: 54.5 lbs (24.7 kg)
    Available Colors
    • Black
    Front Panel (per Node)
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs
    • Universal Information (UID) LED
    Expansion Slots (per Node)
    PCI-Express
    • 2 PCI-E 4.0 (x16) Low-profile slots
    • 1 SIOM card support(must be assembled/integrated with SIOM)
    M.2
    • Interface: 4 SATA/PCI-E 4.0 x4
    • Form Factor: 2280, 22110, 2260, 2242
    • Key: M-key
    Drive Bays (per Node)
    Hot-swap
    • 3 Hot-swap 3.5" SATA3 drive bays
    System Cooling
    Fans
    • 4 Heavy duty 8cm PWM fans
    Power Supply (76mm Width)
    • 2000W Redundant Power Supplies with PM Bus
    Total Output Power
    • 1000W/1800W/1980W/2000W
    Dimension(W x H x L)
    • 76 x 40 x 336 mm
    Input
    • 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz
    • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
    • 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
    • 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
    • 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
    +12V
    • Max: 83.3A / Min: 0A (100-127 Vac)
    • Max: 150A / Min: 0A (200-220 Vac)
    • Max: 165A / Min: 0A (220-230 Vac)
    • Max: 166.7A / Min: 0A (230-240 Vac)
    • Max: 166.7A / Min: 0A (200-240 Vac)(UL/cUL only)
    +5Vsb
    • Max: 1A / Min: 0A
    Output Type
    • 27 Pairs Gold Finger Connector
    Certification
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 30°C (50°F ~ 85°F)All CPU SKUs supported10°C ~ 35°C (50°F ~ 95°F)See Note*
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Motherboard (per Node)
    • Super H12SST-PS

    Optional Part List

    Part Number Quantity Description
    Hot-swap 3.5" to 2.5" Hard Disk Drive Tray
    MCP-220-00043-0N-Black Hot-swap gen 4 3.5" to 2.5" HDD tray
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    TPM security module
    AOM-TPM-9655V-TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
    SIOM
    --Supermicro SIOM solutions [ Details ]
