  2. H12SSG-ANP6, CSE-227GTS-R2K63P, 2U2Nodes,UP,8DIMM

H12SSG-ANP6, CSE-227GTS-R2K63P, 2U2Nodes,UP,8DIMM

AS -2114GT-DPNR

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10674/image_1920?unique=a1dbe1e

kr 49,978.60 49978.6 NOK kr 49,978.60

kr 49,978.60

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

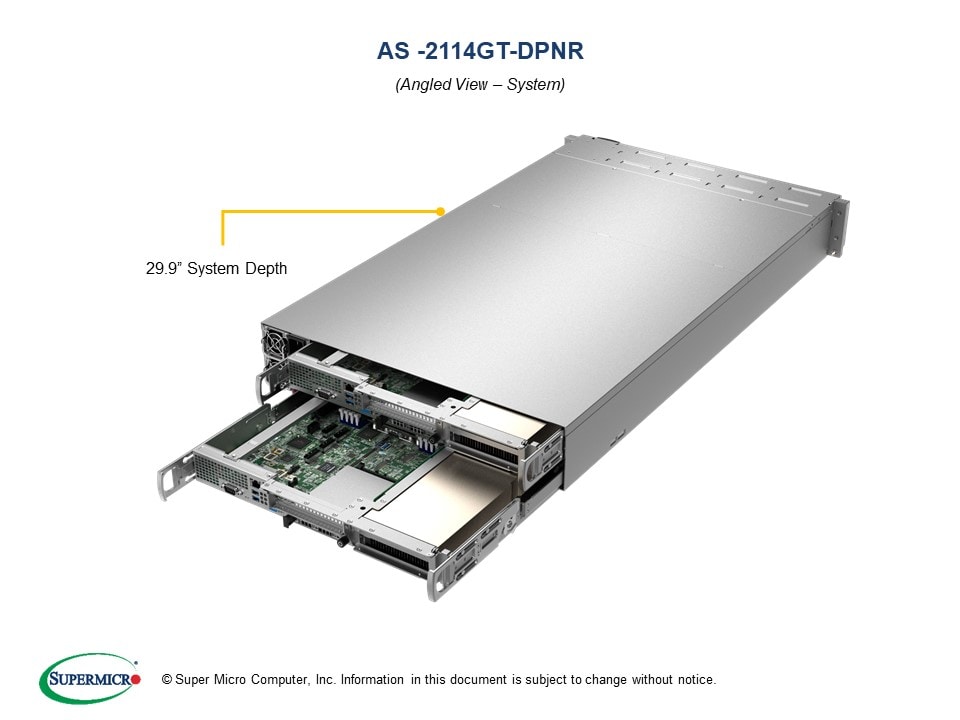

    The Supermicro AS -2114GT-DPNR is a powerful 2U server optimized for various applications such as media streaming, AI inference, machine learning, GPU virtualization, and industrial automation. Equipped with AMD Ryzen Threadripper PRO processors and advanced memory configurations, this server ensures top-tier performance and reliability.

    Key Features

    • Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
    • AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
    • 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
    • 2 PCI-E Gen 4 x16 external slots, 1 PCI-E 4.0 x8 AIOM slot (or optional x16 AIOM w/ additional parts) M.2 Interface : 2 PCI-E 4.0 x4 M.2 Form Factor : 2280, 22110 M.2 Key : M-key
    • Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
    • 2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays
    • AST2600 BMC
    • 2600W Redundant (1+1) Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)

    Key Applications

    • Media/Video Streaming
    • AI Inference and Machine Learning
    • GPU Virtualization (VDI)
    • Industrial Automation, Retail, Smart Medical Expert Systems

    Description

    Supermicro AS -2114GT-DPNR features two hot-pluggable systems in a 2U form factor, each powered by AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processors with up to 64 cores. It supports up to 2TB of ECC DDR4 memory, multiple PCI-E Gen 4 slots, and advanced storage options. Enhanced with integrated IPMI and redundant 2600W power supplies, this server is built for demanding workloads and ensures high availability.

    Product Specifications

    Specification Details
    Product SKUs
    AS -2114GT-DPNR
    • A+ Server 2114GT-DPNR ( Black )
    Processor (per Node)
    CPU
    • AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
    • Socket SP3
    • Supports CPU TDP up to 280W*
    Cores
    • Up to 64 Cores
    Chipset
    • System on Chip (SoC)
    Note
    • * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Safe Consulting Technical Support for additional information about specialized system optimization
    System Memory (per Node)
    Memory Capacity
    • 8 DIMM slots
    • Up to 2TB 3DS ECC DDR4-3200MH SDRAM
    Memory Type
    • 3200MHz ECC DDR4 SDRAM
    On-Board Devices (per Node)
    Network
    • Flexible networking via AIOM
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics & System Management
    • ASPEED AST2600 BMC
    Input / Output (per Node)
    SATA
    • No/A
    LAN
    • Flexible networking provided by AIOM
    • 1 RJ45 1GbE Dedicated IPMI management port
    USB
    • 2 USB 3.0 ports (rear)
    Video
    • 1 VGA Connector (rear)
    Others
    • 1 COM port (header)
    • 1 TPM 2.0 (header)
    System BIOS (per Node)
    BIOS Type
    • AMI 256Mb SPI Flash ROM
    Management (per Node)
    Software
    • IPMI 2.0
    • KVM with dedicated LAN
    • SSM , SPM , SUM
    • SuperDoctor® 5
    • Watchdog
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmountable
    Model
    • CSE-227GTS-R2K63P
    Dimensions
    Height
    • 3.47" (88mm)
    Width
    • 17.6" (447mm)
    Depth
    • 29.9" (760mm)
    Package
    • 9.44" (240mm) H x 23.62" (600mm) W x 43.3" (1100mm) D
    Weight
    • Net Weight: 55 lbs (24.94 kg)
    • Gross Weight: 60 lbs (27.21 kg)
    Available Colors
    • Black
    Drive Bays / Storage (per Node)
    Hot-swap
    • 2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays
    Expansion Slots (per Node)
    PCI-Express
    • 2 PCI-E Gen 4 x16 external slots
    • 1 PCI-E Gen 4 x8 AIOM networking slot (or optional x16 AIOM w/ additional parts)
    System Cooling
    Fans
    • 4 Hot-swap heavy duty 80mm PWM fans
    Power Supply
    • 2600W Redundant Power Supplies with PM Bus
    Total Output Power and Input
    • 2600W with Input 200-240Vac
    • 2600W with Input 200-240Vdc (for CQC only)
    Dimension(W x H x L)
    • 40 x 73.5 x 265 mm
    +12V
    • Max: 216A / Min: 0A (200-240 Vac)
    +12Vsb
    • Max: 4.5A / Min: 0A
    Output Type
    • Gold Finger Connector
    Certification (Pending)
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Motherboard (per Node)
    • Super H12SSG-ANP6
