[NR]3U MicroCloud System, H13SRE-F, CSE-MC301,RoHS

AS -3015MR-H10TNR

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/12816/image_1920?unique=0657ebb

kr 98,098.83 98098.83 NOK kr 98,098.83

kr 98,098.83

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    This 3U MicroCloud System features the Super H13SRE-F motherboard and supports AMD EPYC™ processors. Designed for cloud and web services, it offers flexible GPU and storage options, ensuring efficient performance in demanding environments.

    Key Features

    • Single Socket AM5 (LGA-1718) AMD EPYC™ 4004 Series Processor up to 170W with air cooling
    • Support for up to 1 single-width PCIe GPU accelerator cards
    • Up to 4 DIMMs supporting up to 192GB DDR5-5200 in 2DPC
    • Up to 1 PCIe 5.0 x16 LP + 1 PCIe 5.0 x4 MicroLP slots
    • Up to 4 internal 2.5" (2 NVMe and 2 SATA) drive bays
    • 2000W Redundant (2+2 or 3+1) 80+ Titanium Level high-efficiency power supplies

    Key Applications

    • Cloud Computing
    • Web/Collocation Services
    • Web Cache, CDN, Video Streaming
    • Social Networking, Downloads
    • Corporate - WINS, DNS, Print, Login

    Description

    The 3U MicroCloud System combines the Super H13SRE-F motherboard and CSE-MC301 chassis for powerful computing solutions. It offers up to 192GB DDR5 memory support and compatibility with a range of AMD EPYC™ 4004 processors. The system supports single-width PCIe GPU accelerator cards and up to 4 internal 2.5" drive bays, including NVMe and SATA. Ideal for cloud computing and web services, it ensures superior performance with high-efficiency power supplies.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • A+ Server AS -3015MR-H10TNR
    Motherboard
    Installed Motherboard
    • Super H13SRE-F
    Processor (per Node)
    CPU
    • Single Socket AM5 (LGA-1718)
    • AMD EPYC™ 4004 Series Processor
    Core Count
    • Up to 16C/32T; Up to 32MB Cache
    Note
    • Supports 65W - 170W TDP CPUs (Air Cooled)*
    • *Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a Supermicro representative for details.
    GPU (per Node)
    Max GPU Count
    • Up to 1 single-width GPU
    Supported GPU
    • NVIDIA PCIe: T4, L4, A2
    System Memory (per Node)
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
    On-Board Devices (per Node)
    NVMe
    • NVMe; (Native)
    Chipset
    • System on Chip
    Network Connectivity
    • No NIC option supported
    Input / Output (per Node)
    USB
    • 2 USB 2.0 ports
    Video
    • 1 port
    TPM
    • 1 TPM Onboard/port 80
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI 6.0 Power Management
    PC Health Monitoring
    Temperature
    • Monitoring for CPU and chassis environment
    CPU
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
    • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
    FAN
    • Fan speed control, Dual Cooling Zone
    Chassis
    Form Factor
    • 3U Rackmount
    Model
    • CSE-MC301-000NFP
    Dimensions and Weight
    Height
    • 5.16" (131 mm)
    Width
    • 17.68" (449 mm)
    Depth
    • 30.51" (775 mm)
    Package
    • 17.32" (H) x 27.17" (W) x 44.88" (D)
    Weight
    • Gross Weight: 90.39 lbs (41 kg)
    Available Color
    • No Paint

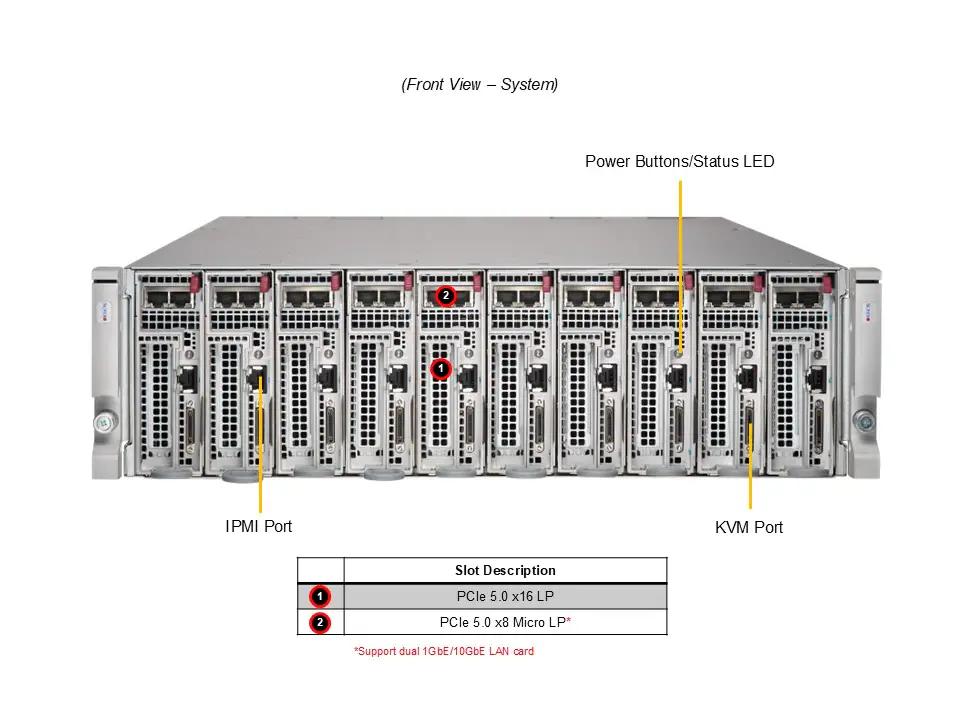

    Front Panel
    Buttons
    • Power On/Off
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 5.0 x16 LP slot
    • 1 PCIe 5.0 x4 MicroLP slot

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 4 bays:
    • 2 internal fixed 2.5" PCIe 5.0 NVMe drive bays
    • 2 internal fixed 2.5" SATA drive bays

    M.2
    • 1 M.2 NVMe slot (M-key 2280/22110)
    System Cooling
    Fans
    • 5 Heavy Duty 8cm Fan(s)
    Power Supply
    4x 2000W Redundant (3 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 203 mm

    AC Input:
    • 1000W: 100-127Vac
    • 1000W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac
    • 1800W: 200-220Vac / 50-60Hz
    • 1980W: 220-230Vac
    • 1980W: 220-230Vac / 50-60Hz
    • 2000W: 220-240Vac
    • 2000W: 220-240Vac / 50-60Hz (for UL only)
    • 2000W: 230-240Vdc
    • 2000W: 230-240Vac
    • 2000W: 230-240Vac / 50-60Hz
    • 2000W: 230-240Vdc / 50-60Hz (for China only)

    +12V:
    • Max: 83A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 166A / Min: 0A (230Vac-240Vac)

    12V SB:
    • Max: 3.5A / Min: 0A
    • Max: 3.5A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    • Operating Relative Humidity: 8% to 80% (non-condensing)
    • Non-operating Relative Humidity: 8% to 90% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-H13SRE-F10Super H13SRE-F Motherboard
    CSE-MC301-000NFP13U Chassis
    Cable
    CBL-0218L111.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
    Riser Card
    RSC-S-6G5101U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
    Software
    SFT-OOB-LIC10License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0076V101U Proprietary CPU Heat Sink for AS -531MR-H8TNR MicroCloud Server

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-1230T4S1-100-For AOC-S3908L-H8iR-16DD
    CBL-SAST-0616-For AOC-S3008L-L8i
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    GPU
    GPU-NVL4-NVIDIA Ada L4 24GB GDDR6 PCIe Gen 4th-- 70w
    GPU-NVA2-NC-NVIDIA Ampere A2 16GB GDDR6 PCIe 4.0 x8 -- w/o CEC 40~60W Configurable
    GPU-NFR-NVTT4-NVIDIA TeslaT4 16GB GDDR6 PCIe3.0x16--PassiveCooling 70w
    GPU Air Shroud
    MCP-310-93807-0B-Mylar air shroud for GPU on MicroCloud 938NH,RoHS
    Network Card(s)
    AOC-CGP-i2-Intel i350 2-port RJ45 1Gb Gen2 x4 Micro-LP
    AOC-CTGS-i2T-O-MicroLP Dual-port 10GbE RJ45, Intel X550 (Retail Pack)
    AOC-CTG-i2S-Intel 82599ES 2-port SFP+ 10Gb 2-port USB Gen2 x8 Micro-LP
    Software
    SFT-DCMS-Single-DataCenter Management Package (per node license)
    Storage Controller Card(s)
    AOC-S3008L-L8i-Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/10
    AOC-S3908L-H8IR-16DD-8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
