3U MicroCloud System, H13SRD-F, 938NH-R2K20BP2

AS -3015MR-H8TNR

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10690/image_1920?unique=29062ce

kr 66,409.40 66409.4 NOK kr 66,409.40

kr 66,409.40

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The MicroCloud modular architecture of the Supermicro AS -3015MR-H8TNR provides high density, serviceability, and cost-effectiveness required for today's demanding hyperscale deployments. Each node within the 3U chassis supports single AMD Ryzen™ Zen4 7000 series processors, up to 128GB DDR5 memory, and various storage options.

    Key Features

    • 8 sets of AMD EPYC™ 4004 Series Processor
    • AMD Knoll - Integrated I/O Controller Hub
    • 8 sets of up to 192GB ECC/non ECC UDIMM; DDR5 5200MHz, in 4 DIMM sockets
    • 8 sets of 1 PCIe 5.0 x8 (in x16) LP slots + 1 Micro-LP slot (MicroLP upgradeable)
    • 8 sets of 2 front NVMe U.2/ SAS/ SATA3 drive bays with optional kits
    • 2200W Redundant 80+ Titanium Level high-efficiency power supplies

    Key Applications

    • Cloud Computing
    • Web/Collocation Services
    • Web Cache, CDN, Video Streaming
    • Social Networking, Downloads
    • Corporate - WINS, DNS, Print, Login

    Description

    The MicroCloud modular architecture provides high density, serviceability and cost effectiveness required for today’s demanding hyperscale deployments. They are conveniently integrated into a compact 3U chassis that is less than 30 inches deep, saving over 76% of rack space when compared to traditional 1U servers..

    AS -3015MR-H8TNR each node supports Single AMD Ryzen™ Zen4 7000 series Processor, up to 128GB DDR5 4800MHz memory in 4 DIMM slots, and up to 1 PCI-E x16 low-profile expansion slot with flexible on-board Micro-LP networking options.

    Each Node includes 2 x 3.5" hot-swap NVMe/SAS/SATA drive bays per node and 1 M.2 NVMe support . Whether you want a system with 16 blazing fast drives or just one drive, this system is able to handle your storage needs. In addition, this system supports 2 PCI-E 5.0 slot per node, 1 by PCI-E x16 low profile and 1 by x8 mini low profile. With the PCI-E x16 slot, you can either enable a GPU card or a high performance 100GbE network card. As for the PCI-E x8 slot, you can support the basic network cards up to 25GbE.

    If you are in the market for a server high density and servicability, this Ryzen MicroCloud system is for you.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • A+ Server AS -3015MR-H8TNR
    Motherboard
    Installed Motherboard
    • Super H13SRD-F
    Processor (per Node)
    CPU
    • Single Socket AM5 (LGA-1718)
    • AMD EPYC™ 4004 Series Processor
    Core Count
    • Up to 16C/32T; Up to 16MB Cache
    Note
    • Supports 65W - 170W TDP CPUs (Air Cooled)*
    • *Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a Supermicro representative for details.
    GPU (per Node)
    Max GPU Count
    • Up to 1 single-width GPU
    Supported GPU
    • NVIDIA PCIe: T4, L4, A2
    System Memory (per Node)
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 192GB 5200MT/s non-ECC DDR5 UDIMM
    On-Board Devices (per Node)
    NVMe
    • NVMe; (Native)
    Chipset
    • AMD Knoll - Integrated I/O Controller Hub
    Network Connectivity
    • No NIC option supported
    Input / Output (per Node)
    USB
    • 2 USB 2.0 port(s)
    • 1 Type-C port(s) (front)
    Video
    • 1 port(s)
    TPM
    • 1 TPM Onboard/port 80
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI 6.0 Power Management
    PC Health Monitoring
    Temperature
    • Monitoring for CPU and chassis environment
    CPU
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
    • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
    FAN
    • Fan speed control, Dual Cooling Zone
    Chassis
    Form Factor
    • 3U Rackmount
    Model
    • CSE-938NH-R2K20BP2
    Dimensions and Weight
    Height
    • 5.21" (132 mm)
    Width
    • 17.26" (438 mm)
    Depth
    • 23.2" (589 mm)
    Package
    • 11.65" (H) x 26.26" (W) x 34" (D)
    Weight
    • Gross Weight: 88 lbs (39.92 kg)
    • Net Weight: 62.2 lbs (28.21 kg)
    Available Color
    • No/A
    Front Panel
    LED

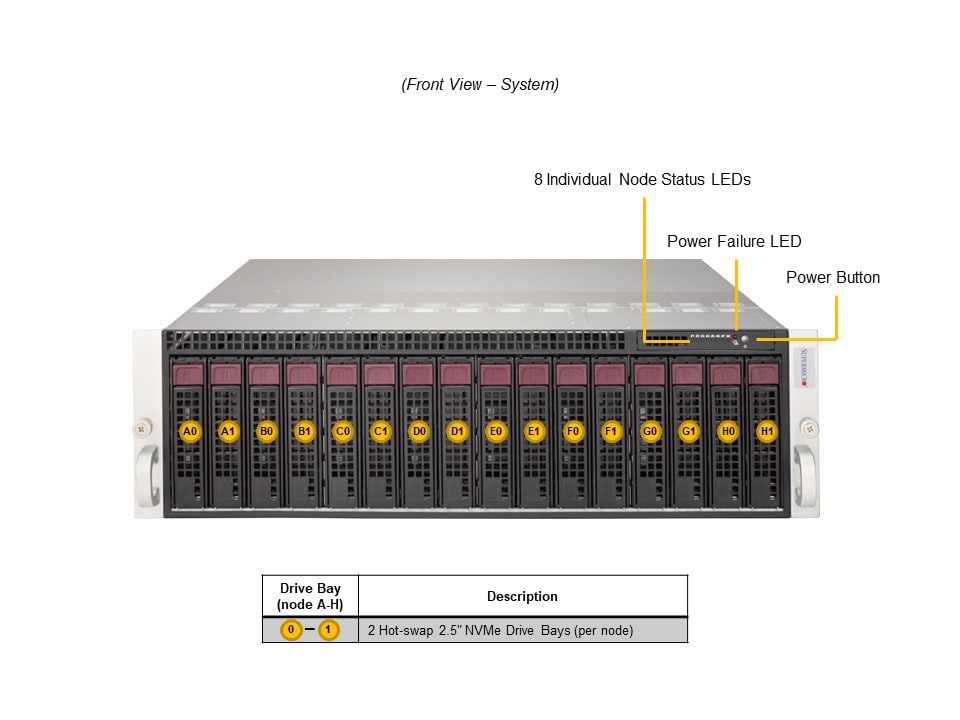

    • 8 Individual Node Status Indicators
    • Power Failure
    Buttons
    • Power On/Off
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 5.0 x8 (in x16) LP slot
    • 1 PCIe 5.0 x8 MicroLP slot

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 2 bays:
    • 2 front fixed 3.5"/2.5" NVMe/SAS*/SATA* drive bays

    • (*SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 1 M.2 NVMe/SATA slot (M-key 2280/22110)
    System Cooling
    Fans
    • 4 Heavy Duty 8cm Fan(s)
    Power Supply
    2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 76 x 40 x 336 mm

    AC Input:
    • 1200W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
    • 1980W: 220-230Vac / 50-60Hz
    • 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
    • 2090W: 230-240Vac / 50-60Hz
    • 2090W: 230-240Vdc / 50-60Hz (for CCC only)

    +12V:
    • Max: 100A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
    • Max: 174.17A / Min: 0A (230Vac-240Vac)
    • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
    • Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)

    5V SB:
    • Max: 1A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    • Operating Relative Humidity: 8% to 80% (non-condensing)
    • Non-operating Relative Humidity: 8% to 90% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-H13SRD-F8Super H13SRD-F Motherboard
    CSE-938NH-R2K20BP213U Chassis
    Add-on Card / Module
    AOM-BPN-938NH-P1AOM-BPN-938NH, Backplane module for 8-node Microcloud system
    AOM-LAN-MC8-P1AOM-LAN-MC8, LAN front panel module for 8-node Microcloud sy
    AOM-PDB-PT938-LSG-P1AOM-PDB-PT938-LSG, PDB module for 8-node Microcloud system,H
    AOM-PDB-PT938-RSG-P1AOM-PDB-PT938-RSG, PDB module for 8-node Microcloud system,H
    Cable
    CBL-0218L111.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
    CBL-PWCD-0578-1OR2PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
    CBL-PWCD-0578-IS-PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS
    CBL-0355L2RJ45 C5E 2ft Green With Cover
    CBL-0458L120 cm 30 pin to 30 pin Front control cable with tube. 28AWG
    CBL-CDAT-066218 Pin to 8 Pin Round SGPIO Cable, 61.5cm, 28AWG, Pinout 1-1
    Riser Card
    RSC-S-6G581U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
    Software
    SFT-OOB-LIC8License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0076V81U Proprietary CPU Heat Sink for AS -531MR-H8TNR MicroCloud Server
    Fan
    FAN-0213L4OR480x80x38 mm, 14.4K RPM Cooling Fan for 3U8N Microcloud Serie
    FAN-0194L4-80x80x38 mm, 13.5K RPM Cooling Fan for 3U8N Microcloud Serie
    Drive Tray(s)
    MCP-220-93801-0BOR16Black Hotswap Gen 6 3.5 to 2.5 HDD Tray (SC747, 936, 938 and Blade)
    MCP-220-00158-0B-Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray,RoHS
    MCP-220-00094-0B16Black gen 6.5 hot-swap 3.5 inch HDD Tray
    *Power Supply
    PWS-2K20A-1R21U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
    *Control Board
    MCP-280-93801-0B1Control panel module
    *Rail Set
    MCP-290-00057-0N1Rail set, quick/quick, default for 4U 17.2" W
    *Air Shroud
    MCP-310-93805-0B16Mylar air shroud for 2-DIMMs (quick install on DIMM latch)

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-1230T4S1-100-For AOC-S3908L-H8iR-16DD
    CBL-SAST-0616-For AOC-S3008L-L8i
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    GPU
    GPU-NVL4-NVIDIA Ada L4 24GB GDDR6 PCIe Gen 4th-- 70w
    GPU-NVA2-NC-NVIDIA Ampere A2 16GB GDDR6 PCIe 4.0 x8 -- w/o CEC 40~60W Configurable
    GPU-NFR-NVTT4-NVIDIA TeslaT4 16GB GDDR6 PCIe3.0x16--PassiveCooling 70w
    GPU Air Shroud
    MCP-310-93807-0B-Mylar air shroud for GPU on MicroCloud 938NH,RoHS
    Network Card(s)
    AOC-CGP-i2-Intel i350 2-port RJ45 1Gb Gen2 x4 Micro-LP
    AOC-CTGS-i2T-O-MicroLP Dual-port 10GbE RJ45, Intel X550 (Retail Pack)
    AOC-CTG-i2S-Intel 82599ES 2-port SFP+ 10Gb 2-port USB Gen2 x8 Micro-LP
    Software
    SFT-DCMS-Single-DataCenter Management Package (per node license)
    Storage Controller Card(s)
    AOC-S3008L-L8i-Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/10
    AOC-S3908L-H8IR-16DD-8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
