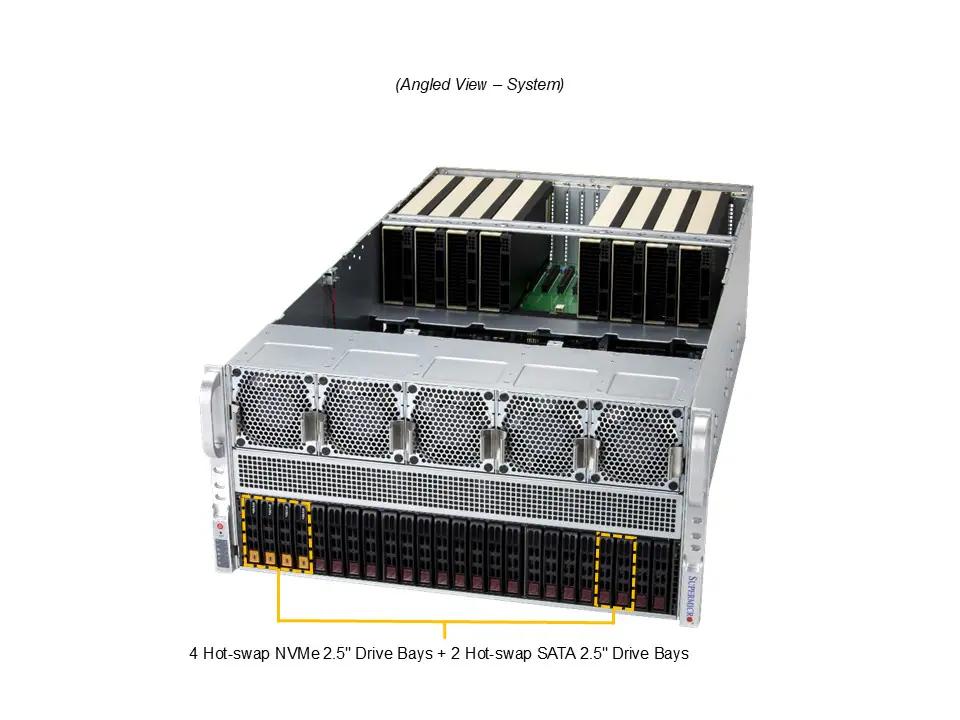

H14DSG-O-CPU, CSE-528G, 5U GPU direct attached server

AS -5126GS-TNRT

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/13546/image_1920?unique=ce410c7

kr 103,262.44 103262.44 NOK kr 103,262.44

kr 103,262.44

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Optimize performance with dual AMD EPYC CPUs and support for up to 8 double-width GPUs. Featuring up to 9TB DDR5 memory and extensive storage options, this system suits AI and HPC needs.

    Key Features

    • Dual Socket SP5 AMD EPYC™ 9005 Series Processors up to 500W with air cooling
    • Support for up to 8 double-width PCIe GPU accelerator cards
    • Up to 24 DIMMs supporting up to 9TB DDR5-6000 in 1DPC
    • Up to 9 PCIe 5.0 x16 FHFL slots
    • Up to 2 front hot-swap 2.5" SATA + 4 front hot-swap 2.5" NVMe drive bays

    Key Applications

    • AI / Deep Learning
    • 3D Rendering Farm
    • Visualization / Simulation
    • High Performance Computing
    • Multimedia/Digital Content creation

    Description

    This high-performance server features dual socket SP5 AMD EPYC 9005 series processors, delivering up to 192 cores for demanding computational workloads. Designed to support AI, deep learning, and 3D rendering, it accommodates up to 8 double-width GPUs for accelerated processing. The server offers up to 9TB of DDR5 memory and provides up to 6 hot-swap drive bays, ensuring scalable storage solutions. With robust networking, it's ideal for high-performance computing applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • A+ Server AS -5126GS-TNRT
    Motherboard
    Installed Motherboard
    • Super H14DSG-O-CPU
    Processor
    CPU
    • Dual processor(s)
    • AMD EPYC™ 9005/9004 Series Processors
    Core Count
    • Up to 192C/384T
    Note
    • Supports up to 500W TDP CPUs
    GPU
    Max GPU Count
    • Up to 8 double-width GPUs
    Supported GPU
    • NVIDIA PCIe: H100 NVL, H200 NVL (141GB), L40S
    CPU-GPU Interconnect
    • Direct Attached
    GPU-GPU Interconnect
    • NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional)
    System Memory
    Memory
    • Slot Count: 24 DIMM slots
    • Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • System on Chip
    Network Connectivity
    • 2 RJ45 10GbE
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port
    • 2 RJ45 10 GBASE-T LAN ports
    USB
    • 2 ports(rear)
    Video
    • 1 VGA port
    System BIOS
    BIOS Type
    • AMI 64MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 7 +1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 5U Rackmount
    Model
    • CSE-528G2TS-R000NDP
    Dimensions and Weight
    Height
    • 8.75" (222.5 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 29" (737 mm)
    Package
    • 17.32" (H) x 28.34" (W) x 42.51" (D)
    Weight
    • Gross Weight: 100 lbs (45.3 kg)
    • Net Weight: 65.5 lbs (29.7 kg)
    Available Color
    • Black Front & Silver Body
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 9 PCIe 5.0 x16 FHFL slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 6 bays:
    • 2 front hot-swap 2.5" SATA drive bays
    • 4 front hot-swap 2.5" NVMe drive bays

    M.2
    • 1 M.2 PCIe 3.0 x4 NVMe slot (M-key)
    System Cooling
    Fans
    • 10 heavy duty fans with optimal fan speed control
    Power Supply
    6x 2700W Redundant (3 + 3) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 203 mm

    Input:
    • 2700W: 200-240Vac
    • 2700W: 200-240Vac / 50-60Hz
    • 2700W: 240-240Vdc / 50-60Hz (for CQC only)

    +12V:
    • Max: 225A / Min: 0A (200Vac-240Vac)
    • Max: 225A / Min: 0A (240Vdc-240Vdc)

    12V SB:
    • Max: 3.5A / Min: 0A
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Environmental / Recycling
    Recycle
    • Return Server-End of Life Product

    Optional Part List

    Part Number Quantity Description
    GPU Link
    GPU-NVLINK-4WAY-NVLINK Bridge Board for Hopper GPU, 4-way Passive
    GPU-NVLINK-2WAY-NVLINK Bridge Board for Hopper GPU, 2-way Passive
    Power Cable
    CBL-0223L-PWS POWER CORD C-19 TO C-20,
    Power supply
    PWS-2K70A-1R-2700W Redundant Titanium w/PMBus power supply, C20 inlet
