  2. H12SSFF-AN6, CSE-F418IF4-R2K20BP,RoHS

H12SSFF-AN6, CSE-F418IF4-R2K20BP,RoHS

AS -F1114S-FT

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10662/image_1920?unique=29062ce

kr 109,729.26 109729.26000000001 NOK kr 109,729.26

kr 109,729.26

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

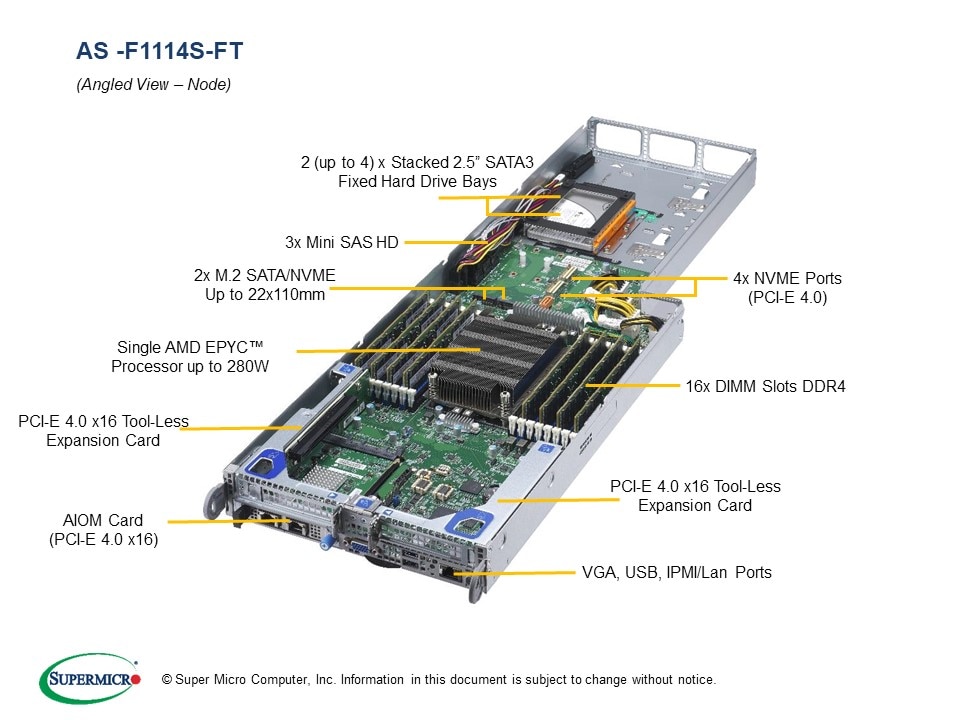

    Supermicro AS -F1114S-FT is a versatile, high-density 8-node 4U server ideal for hyperscale, cloud computing, HPC, and data center applications. Each node supports a single AMD EPYC 7003/7002 processor, up to 4TB of ECC DDR4 memory, PCI-E 4.0 slots, and flexible networking options.

    Key Features

    • 8 Hot-pluggable System Nodes in a 4U form factor. Each node supports:
    • Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • Up to 4TB ECC 3DS LRDIMM, up to DDR4-3200MHz; 16 DIMM slots
    • Expansion slots: 2 PCI-E 4.0 x16 (LP Riser), 1 PCI-E 4.0 x16 AIOM slot
    • AIOM Network card, 1 dedicated IPMI LAN port
    • 1 VGA, 2 USB 3.0 ports
    • Up to 4 fixed internal 2.5" drive bays: 4 SATA3 by default, or optional 2 NVMe via additional cable M.2 Interface : 2 SATA/NVMe, PCI-E 4.0 x4 M.2 Form Factor : 2260, 2280, 22110 M.2 Key : M-Key
    • 8 heavy-duty 8cm 13.5k RPM rear fans per enclosure
    • 2000W or above Redundant Power Supplies (Full redundancy based on configuration and application load)

    Key Applications

    • Hyperscale and Hyperconverged Solutions
    • Cloud Computing
    • Cluster Node
    • Data Center
    • HPC cluster computer nodes

    Description

    The Supermicro AS -F1114S-FT offers a high-performance solution for data centers and hyperscale infrastructures. With support for the latest AMD EPYC 7003 processors, including AMD 3D V-Cache Technology, this server ensures top-notch performance and reliability. Each of the 8 hot-pluggable nodes supports 4TB of ECC DDR4 memory across 16 DIMM slots, dual PCI-E 4.0 x16 slots, and robust cooling with eight heavy-duty 8cm fans. The system accommodates up to 4 fixed 2.5" internal drive bays and optional NVMe support, providing excellent storage flexibility. Key features include redundant 2000W power supplies, comprehensive IPMI management, and various high-speed I/O options, making it an ideal solution for demanding computing environments.

    Product Specifications

    Specification Details
    Product SKUs
    AS -F1114S-FT
    • A+ Server F1114S-FT ( Black )
    Motherboard
    Installed Motherboard
    • Super H12SSFF-AN6
    Processor/Chipset (per Node)
    CPU
    • Single AMD EPYC™ 7003/7002 Series Processor(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • Socket SP3
    • Supports CPU TDP / cTDP up to 280W*
    Cores
    • Up to 64 Cores
    Note
    • * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Safe Consulting Technical Support for additional information about specialized system optimization
    System Memory (per Node)
    Memory Capacity
    • 16 DIMM slots
    • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
    • 8-channel memory bus
    Memory Type
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    Memory Sizes
    • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SATA3 (6Gbps)
    Network Controllers
    • Flexible networking via AIOM (not included, must add 1 per node)
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2600 BMC
    Input / Output (per node)
    SATA
    • 4 SATA3 (6Gbps) ports
    LAN
    • Flexible networking via AIOM
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (front)
    VGA
    • 1 VGA port (front)
    Others
    • 1 TPM 2.0 header
    System BIOS
    BIOS Type
    • 256Mb SPI Flash EEPROM with AMI BIOS
    Management
    Software
    • IPMI 2.0
    • KVM with dedicated LAN
    • SSM , SUM
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 7 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-F418IF4-R2K20BP
    Dimensions and Weight
    Width
    • 17.63" (448mm)
    Height
    • 6.96" (177mm)
    Depth
    • 29" (737mm)
    Package
    • 28.3" (W) x 15.0" (H) x 42.4" (D)
    Weight
    • Net Weight: 108.5 lbs (49.21 kg)
    • Gross Weight: 204.8 lbs (90.71 kg)
    Available Colors
    • Black
    Front Panel (per node)
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • Hard drive activity LED
    • Network activity LEDs
    • Information LED (UID, Fan failure, Overheat)
    Expansion Slots (per node)
    PCI-Express
    • 2 PCI-E 4.0 x16 (Low-profile riser)
    • 1 PCI-E 4.0 x16 (AIOM)
    Drive Bays (per node)
    Fixed
    • Up to 4 internal 2.5" drive bays:
    M.2
    • M.2 Interface: 2 SATA/NVMe, PCI-E 4.0 x4
    • M.2 Form Factor: 2260, 2280, 22110
    • M.2 Key: M-Key
    System Cooling
    Fans
    • 8 heavy-duty 8cm 13.5k RPM rear fans per enclosure
    Power Supply
    • 2000W or above Redundant Power Supplies with PM Bus
    Total Output Power and Input
    • 1100W with Input 100-120Vac
    • 1400W with input 120-140Vac
    • 1800W with input 200-220Vac
    • 1980W with input 220-230Vac
    • 2000W with input 230-240Vac
    • 2000W with input 200-240Vac (for UL/cUL use only)
    AC Input Frequency
    • 50-60Hz
    Dimension(W x H x L)
    • 76 x 40 x 336 mm
    +12V
    • Max: 91.7A / Min: 0A (100-120Vac)
    • Max: 116.7A / Min: 0A (120-140Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 166.7A / Min: 0A (230-240Vac)
    • Max: 166.7A / Min: 0A (200-240Vac) (for UL/cUL use only)
    5VSB
    • Max: 1A / Min: 0A
    Output Type
    • Backplanes (gold finger)
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Optional Part List

    Part Number Quantity Description
    Cable for 2 NVMe Drives Support
    CBL-SAST-1231LP-851SlimlineLP x8 (STR) to 2x SFF 8639,2x4,PH4.2,35/35/30/3
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
