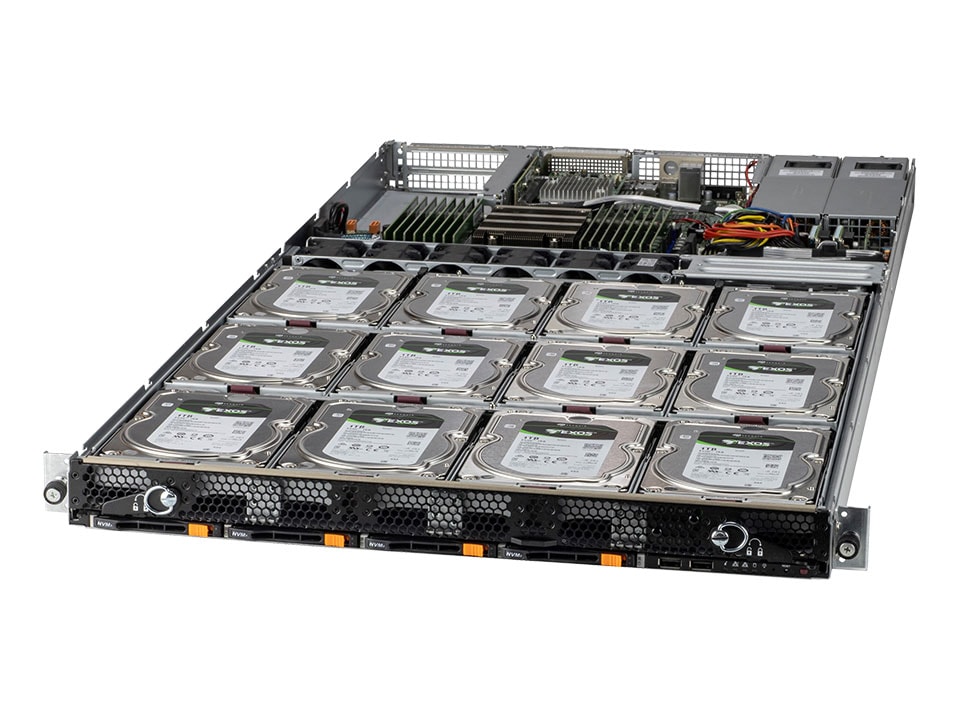

H12SSW-NTR, CSE-802TS-R000WNBP

ASG-1014S-ACR12N4H-EU

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 1 CPUs, 4 DIMMs, 1 Storage Device and 1 Server-Grade M.2)

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10649/image_1920?unique=29062ce

kr 39,863.43 39863.43 NOK kr 39,863.43

kr 39,863.43

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro ASG-1014S-ACR12N4H-EU is a high-density storage solution, optimized with single AMD EPYC™ 7003/7002 Series Processors. It is designed for enterprise workloads and hyperscale data centers, offering extensive scalability and performance for demanding applications.

    Key Features

    • Single AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
    • 16 DIMMs; Up to 4TB 3DS ECC Registered DDR4-3200MHz RDIMM/LRDIMM
    • 2 PCIe 4.0 x16 (FHHL) Slots, 1 PCIe 4.0 x16 (LP) Slot
    • 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller
    • 12x 3.5" SAS3/SATA3 Hot-Swap Drive Bays, 4x 2.5" 7mm U.2 NVMe Hot-Swap Drive Bays
    • 800W Redundant Power SuppliesPlatinum Level High-efficiency(Full redundancy based onconfiguration and application load.)
    • RAID support via Broadcom® 3916
    • 1 VGA, 1 COM, 4 USB3.0 (4 Rear, 1 Type A), 2 USB2.0 (2 Front)

    Key Applications

    • Database Applications
    • Hyperscale Data Center
    • Object Storage
    • Big Data Analytics
    • Scale-Out Density
    • Hadoop & Ceph storage solutions
    • Scale-out NAS

    Description

    The Supermicro ASG-1014S-ACR12N4H-EU provides a robust platform for a range of enterprise applications, leveraging the power of AMD EPYC™ 7003/7002 Series Processors. It supports up to 4TB of ECC Registered DDR4 memory across 16 DIMM slots, ensuring high memory capacity and performance. With up to 16 hot-swap drive bays, including 12 SAS3/SATA3 and 4 NVMe bays, this server offers extensive storage flexibility. Key features include dual 10GBase-T LAN ports, multiple PCIe slots, and redundant 800W power supplies for reliability. The server is integrated with Supermicro's comprehensive management software, making it a reliable choice for data-intensive environments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • A+ Server ASG-1014S-ACR12N4H Standard version with PWS-804P-1R (Platinum Level)
    • A+ Server ASG-1014S-ACR12N4H-EU European version with PWS-862A-1R (Titanium Level)
    Motherboard
    Installed Motherboard
    • Super H12SSW-NTR
    Processor
    CPU
    • Single Socket SP3
    • AMD EPYC™ 7003/7002 Series Processor
    Note
    • Supports up to 240W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 16 DIMM slots/8 Channels
    • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    SAS
    • SAS (12Gbps) via Broadcom® 3916; RAID 0/1/5/6/10/50/60 support
    NVMe
    • NVMe; (Native)
    Chipset
    • AMD System on Chip
    Network Connectivity
    • 2 RJ45 10GBASE-T with Broadcom® BCM57416
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 RJ45 10 GBASE-T LAN port(s) (Broadcom® BCM57416)
    USB
    • 2 USB 2.0 Type-A port(s) (front)
    • 4 USB 3.0 Type-A port(s) (Rear)
    Video
    • 1 VGA port(s) (Rear)
    Serial
    • 1 COM port(s) (Rear)
    DOM
    • 2 Super DOM (Disk on Module) port(s) with built-in power
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-802TS-R804WBP
    Dimensions and Weight
    Height
    • 1.7"
    Width
    • 17.6"
    Depth
    • 37"
    Package
    • 12" (H) x 27" (W) x 53.15" (D)
    Weight
    • Gross Weight: 58 lbs (26.3 kg)
    • Net Weight: 39.5 lbs (17.9 kg)
    Available Color
    • Black
    Front Panel
    LED
    • HDD activity
    • Network activity
    • Power status
    • System information (overheat/UID)
    Buttons
    • Power On/Off
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 4.0 x16 (in x16) HHHL slot
    • 2 PCIe 4.0 x16 (in x16) FHHL slots

    M.2
    • 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 22110(default)/2280)
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 16 bays:
    • 12 internal hot-swap 3.5" SAS/SATA drive bays
    • 4 front hot-swap 7mm PCIe 4.0 x2 NVMe drive bays

    M.2
    • 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 22110(default)/2280)
    System Cooling
    Fans
    • 6 Heavy Duty 4cm Fan(s)
    Power Supply
    2x 800W Redundant (1 + 1) Platinum Level (94%) power supplies
    Dimension (WxHxL):
    • 54.5 x 40.25 x 220 mm

    AC Input:
    • 750W: 100-127Vac / 50-60Hz
    • 800W: 200-240Vac / 50-60Hz
    • 800W: 230-240Vdc / 50-60Hz

    +12V:
    • Max: 62.5A / Min: 0.5A (100Vac-127Vac)
    • Max: 66.6A / Min: 0.5A (200Vac-240Vac)
    • Max: 66.6A / Min: 0.5A (230Vdc-240Vdc)

    5V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
