Summary Description

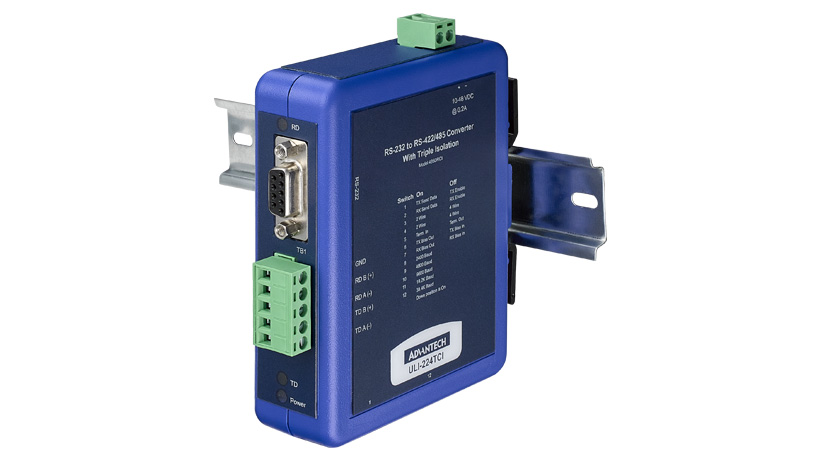

The BB-485DRCI is a triple isolated RS-232 to RS-422/485 converter. It provides data rates up to 115.2 kbps with three-way 2,000V optical isolation for input, output, and power. The converter is UL Class 1/Division 2 certified and Modbus ASCII/RTU compatible.
Key Features
- Data Rates Up To 115.2 kbps
- Three-Way 2,000V Optical Isolation
- Wide Operating Temperature
- UL Class 1/Division 2 Certified
- Modbus ASCII/RTU Compatible
- 10–48 VDC Input Power Range
Description
The BB-485DRCI converter features triple isolation to separate interfaces and power, offering protection for sensitive data communication. It supports high data rates up to 115.2 kbps, and operates within a wide temperature range. The device is designed for industrial applications, supporting Modbus ASCII/RTU communication protocols and certified to UL standards.
Product Specifications
| Specification | Details |
|---|---|
| General | |
| Isolation |
|
| Mounting |
|
| Power |
|
| Power and Data Isolated |
|
| Technology |
|
| Temperature |
|
| Power | |
| Power Input (DC) |
|
| Protection | |
| Isolation |
|
| Surge Protection |
|
| Serial Communication | |
| Maximum Serial Transmission Speed |
|
| Serial Converter |
|
| Serial Port Connector Type |
|
| Serial Port Number |
|
| Environment | |
| Operating Temperature |
|
| Certification | |
| Safety |
|
| Accessory General | |
| Mounting |
|
