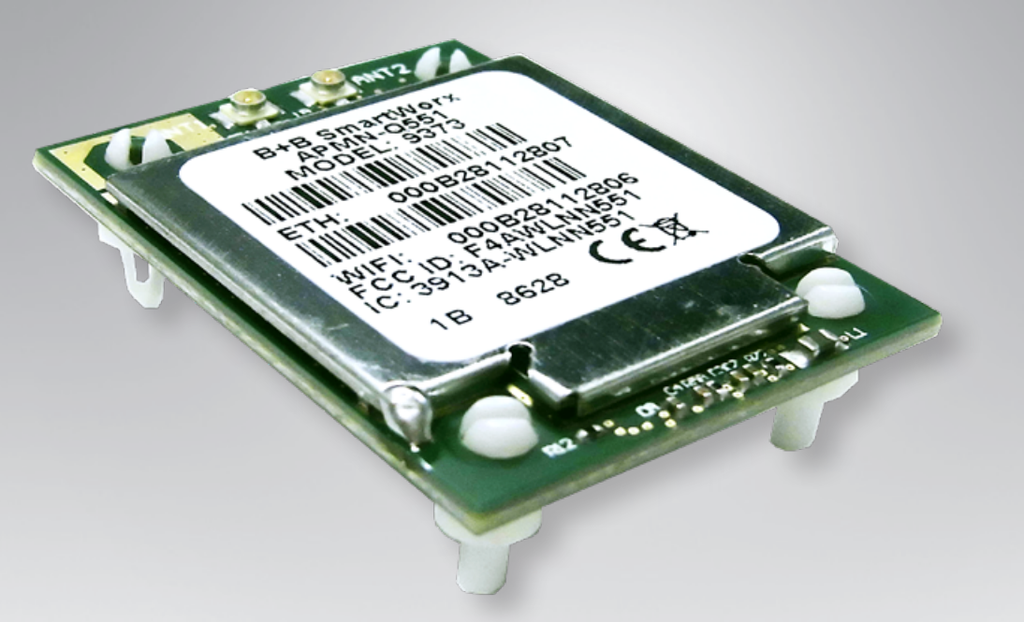

802.11 a/b/g/n M2M Access Point Module

SKU: BB-APMN-Q551
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13135/image_1920?unique=eb779b0

kr 1,090.20 1090.2 NOK kr 1,090.20 VAT Excluded

kr 1,090.20 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The BB-APMN-Q551 offers 802.11 a/b/g/n wireless connectivity with a range of interfaces and robust security features. Ideal for industrial settings, it supports versatile communication modes and energy-efficient performance.

    Key Features

    • 802.11 a/b/g/n Wi-Fi coverage
    • WPA2 enterprise security
    • PowerSave technology
    • Wide temperature range
    • Supports up to 10 clients

    Key Applications

    • Industrial Automation
    • Remote Monitoring
    • Commercial IoT Networks
    • Wireless Infrastructure

    Description

    The BB-APMN-Q551 is an industrial wireless access point module designed for versatile connectivity with 802.11 a/b/g/n Wi-Fi support. It features UART, SPI, and RS-232/422/485 interfaces, offering seamless integration with varied communication systems. With robust security including WPA2 and energy-saving PowerSave firmware, this module is optimized for durable operation across a wide temperature range. Ideal for commercial applications needing reliable and fast wireless solutions, it supports up to 10 clients on the local network.

    Product Specifications

    Specification Details
    Wireless Technology
    Technology
    • IEEE 802.11 a/b/g/n Wi-Fi
    Frequency
    • 2.4 ~ 2.4835 GHz (US/Canada/Europe)
    • 5.150 ~ 5.350 GHz
    • 5.725 ~ 5.825 GHz
    Transmit Power802.11b:
    • 15 dBm (31.6 mW)

    802.11g:
    • 12.6 dBm (18.12 mW)

    802.11a:
    • 17 dBm (50.1 mW)

    Physical
    AntennaType:
    • Two (2) U.FL Coaxial Connectors, 50 Ohms

    Gain: 5 GHz:
    • 5.5 dBi

    2.4 GHz:
    • 4.1 dBi


    Connector
    • 36-pin High Density SMT Connector from Hirose (DF12-36DS-0.5V), 4mm Height
    Interfaces
    Dual UART
    • 960Kbaud, RS232/422/485
    SPI
    • 1-bit/8 MHz
    Ethernet
    • 10/100 Ethernet
    Power
    Supply
    • 3.3VDC +/-5%, 650 mA (max)
    Supply Inrush Current
    • 1500 mA (max) for 400µs
    Environmental
    Operating Temperature
    • -40 to +85 °C
    Storage Temperature
    • -40 to +85 °C
    Relative Humidity
    • 5 to 95% (non-condensing)
