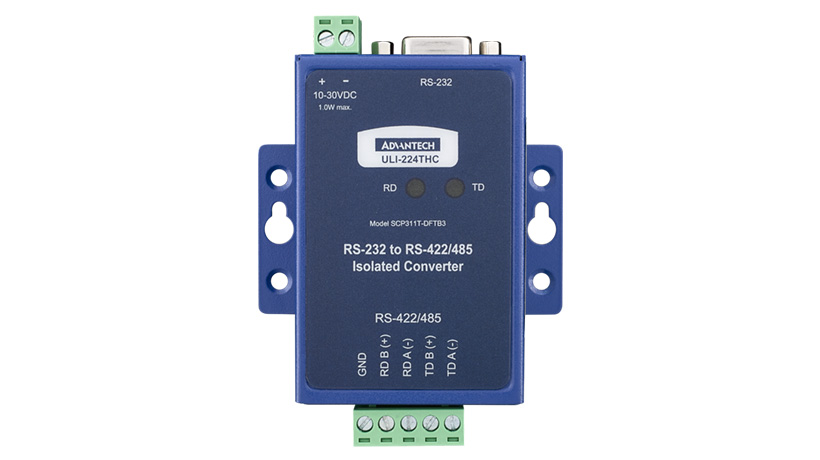

ULI-224THC RS-232 to Iso. RS-422/485 CNVTR, PM

SKU: BB-SCP311T-DFTB3
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13137/image_1920?unique=1af942d

kr 2,087.77 2087.77 NOK kr 2,087.77 VAT Excluded

kr 2,087.77 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    Offers robust isolation and ESD protection in a rugged metal case. Features a wide operating temperature range, panel mount capability and built-in switchable bias and termination.

    Key Features

    • 2kV Isolation
    • Wide Operating Temperature
    • Rugged Metal Case
    • Panel and DIN Rail Mounts
    • High ESD Protection

    Key Applications

    • Industrial Automation
    • Remote Monitoring
    • Building Management Systems
    • Process Control
    • SCADA Systems

    Description

    The BB-SCP311T-DFTB3 is a high-performance RS-232 to RS-422/485 converter. Designed to endure extreme environments, it features 2kV isolation, ESD protection up to 15 kV, and operates in temperatures from -40 to 80°C. Its rugged metal case supports both panel and DIN rail mounts, making it suitable for industrial applications.

    Product Specifications

    Specification Details
    General
    Isolation
    • 2kV
    Mounting
    • Panel
    Power
    • 10-30VDC
    Technology
    • Serial
    Temperature
    • -40 to 80°C
    Power
    Power Input (DC)
    • 10 ~ 30 VDC
    Protection
    ESD Protection
    • 4 kV (Contact); 8 kV (Air)
    Isolation
    • 2,000 VDC
    Surge Protection
    • 1 KV
    Serial Communication
    Maximum Serial Transmission Speed
    • 460.8 Kbps
    Serial Converter
    • RS-232 to RS-422/485
    Serial Port Connector Type
    • 1 x DB9 Female, 1 x Terminal Block
    Serial Port Number
    • 1
    Environment
    Operating Temperature
    • -40 ~ 80°C (-40 ~ 176°F)
    Mechanism
    Enclosure (Metal)
    • Metal
    Accessory General
    Mounting
    • Panel, DIN
