  2. Aten Rack Console 18.5" CL3100NX

Aten Rack Console 18.5" CL3100NX

SKU: CL3100NX-ATA-XG
Brand: Aten
https://safeconsulting.no/web/image/product.template/14004/image_1920?unique=c9ba3b1

kr 12,994.30 12994.300000000001 NOK kr 12,994.30 VAT Excluded

kr 12,994.30 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    ATEN 1U Short Depth USB VGA Single Rail LCD. Display diagonal: 47 cm (18.5"), Display resolution: 1366 x 768 pixels, Display: TFT-LCD. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Power consumption (typical): 14.1 W, Input current: 1 A. Width: 477 mm, Height: 42.8 mm, Depth: 480.6 mm. Package weight: 12.1 kg, Package width: 612 mm, Package depth: 658 mm

    Key Features

    • 47 cm (18.5") LCD 1366 x 768 pixels 250 cd/m² 1000:1
    • Rack mounting 1U
    • On Screen Display (OSD)
    • Keyboard port type: USB Mouse port type: USB Video port type: VGA
    • Metal, Plastic
    • Black

    Key Applications

    • Shallow Rack Environments
    • Broadcast Vans
    • Compact Control Rooms
    • Data Centers
    • Network Operation Centers

    Description

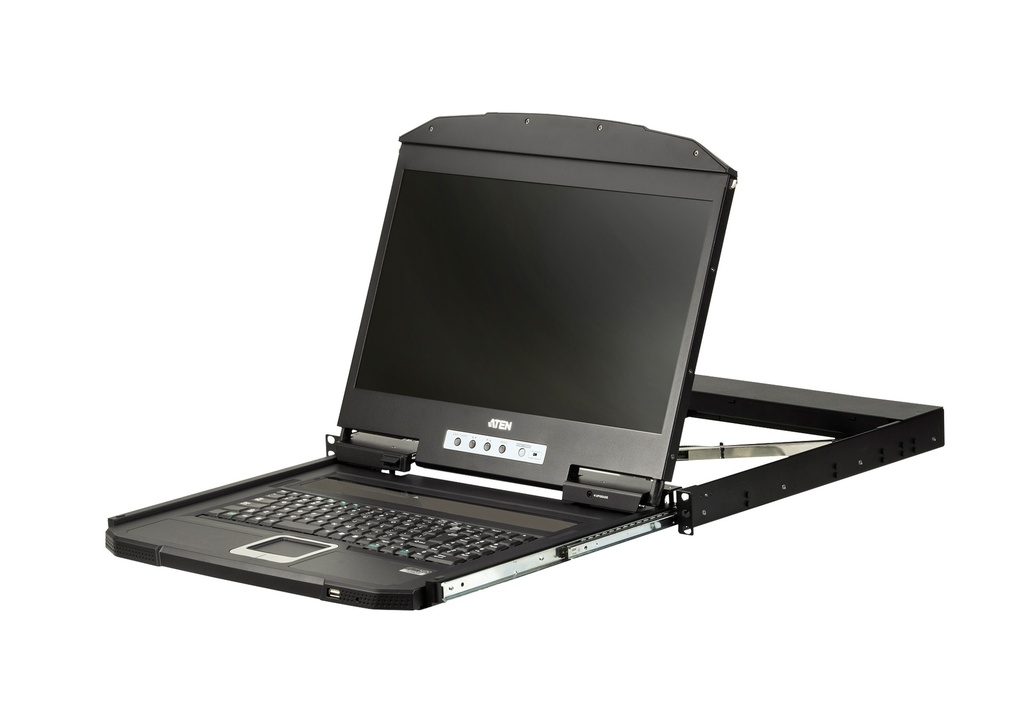

    The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.
    1x CL3100 LCD KVM Console with Standard Rack Mount Kit
    1x LIN5-23X5-X1BG USB VGA KVM Cable (VGA, USB, Audio; 1.8 m/6 ft)
    1x LIN5-04A2-J15G Firmware Upgrade Cable
    1x LIN2-418K-E12G Power Cord
    1x User Instructions

    Product Specifications

    Specification Details
    Display
    Display diagonal
    • 18.5
    Display resolution
    • 1366 x 768
    Display
    • TFT-LCD
    Display brightness
    • 250
    Contrast ratio (typical)
    • 1000:1
    Viewing angle, horizontal
    • 170
    Viewing angle, vertical
    • 160
    On Screen Display (OSD)
    • Yes
    Pixel pitch
    • 0.3 x 0.3
    Aspect ratio
    • 16:9
    Display type
    • LCD
    Response time
    • 5
    Display number of colours
    • 16.78 million colours
    Technical details
    Material
    • Metal,Plastic
    Product colour
    • Black
    Operating relative humidity (H-H)
    • 0 - 80
    Maximum resolution
    • 1920 x 1200
    Rack mounting
    • Yes
    Number of computers controlled
    • 1
    LED indicators
    • Yes
    Rack capacity
    • 1U
    Ports & interfaces
    I/O ports
    • 3.5 mm Audio Jack, SPHD
    Keyboard port type
    • USB
    Mouse port type
    • USB
    Video port type
    • VGA
    USB 2.0 Type-A ports quantity
    • 3
    Keyboard
    Hot keys
    • Yes
    Power
    Power consumption (typical)
    • 14.1
    Input current
    • 1
    Operational conditions
    Operating temperature (T-T)
    • 0 - 40
    Storage temperature (T-T)
    • -20 - 60
    Weight & dimensions
    Width
    • 477
    Height
    • 42.8
    Depth
    • 480.6
    Weight
    • 10190
    Packaging data
    Package weight
    • 12060
    Package width
    • 612
    Package depth
    • 658
    Package height
    • 135
    Packaging content
    Cables included
    • AC,KVM
    Manual
    • Yes
    AC adapter included
    • Yes
    Logistics data
    Master (outer) case net weight
    • 10190
    Master (outer) case width
    • 612
    Master (outer) case length
    • 658
    Master (outer) case height
    • 135
    Master (outer) case gross weight
    • 12060
    Products per master (outer) case
    • 1
