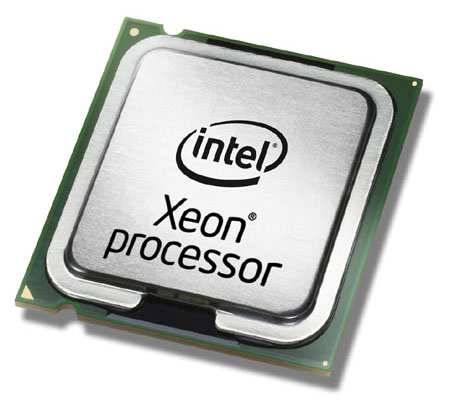

BDW-EP 8C/16T E5-2620V4 2.1G 20M 8GT 85W R3 2011 R0

CM8066002032201
https://safeconsulting.no/web/image/product.template/6270/image_1920?unique=a415753

kr 5,108.62 5108.62 NOK kr 5,108.62

kr 5,108.62

Not Available For Sale

    This combination does not exist.

    Summary Description

    Intel Xeon E5-2620V4. Processor family: Intel® Xeon® E5 v4, Processor socket: LGA 2011-v3, Processor lithography: 14 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 1.54 TB, Memory types supported by processor: DDR4-SDRAM. Market segment: Server, Supported instruction sets: AVX 2.0, Scalability: 2S. Intel® Turbo Boost Technology 2.0 frequency: 3 GHz. Package type: Retail box

    Key Features

    • Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz
    • 20 MB Smart Cache LGA 2011-v3
    • Processor cores: 8 14 nm 64-bit 85 W
    • Maximum internal memory supported by processor: 1.54 TB DDR4-SDRAM

    Key Applications

    • Cloud Computing
    • High-Performance Computing
    • Networking
    • Storage Systems
    • Data Centers
    • Software-Defined Infrastructure

    Description

    The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse workloads. These processors are designed for architecting next-generation data centers running on, software defined infrastructure supercharged for efficiency, performance, and agile services delivery across cloud-native and traditional applications. They support workloads for cloud, high-performance computing, networking, and storage.

    Performance
    Built on 14 nm process technology, the Intel® Xeon® processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.

    Optimized for Orchestration
    Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.

    Enhanced Security
    Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.

    Product Specifications

    Specification Details
    Processor
    Processor manufacturer
    • Intel
    Processor model
    • E5-2620V4
    Processor base frequency
    • 2.1
    Processor family
    • Intel Xeon E5 v4
    Processor cores
    • 8
    Processor socket
    • LGA 2011-v3
    Component for
    • Server/Workstation
    Processor lithography
    • 14
    Processor series
    • Intel Xeon E5-2600 v4
    Processor threads
    • 16
    System bus rate
    • 8
    Processor operating modes
    • 64-bit
    Processor boost frequency
    • 3
    Processor cache
    • 20
    Processor cache type
    • Smart Cache
    Thermal Design Power (TDP)
    • 85
    Box
    • No
    Cooler included
    • No
    VID Voltage Range
    • 0 - 0
    Stepping
    • R0
    Bus type
    • QPI
    Number of QPI links
    • 2
    Memory bandwidth supported by processor (max)
    • 68.3
    Processor codename
    • Broadwell
    Processor code
    • SR2R6
    Processor ARK ID
    • 92986
    Memory
    Maximum internal memory supported by processor
    • 1536
    Memory types supported by processor
    • DDR4-SDRAM
    Memory clock speeds supported by processor
    • 1600,1866,2133
    Memory channels
    • Quad-channel
    ECC
    • Yes
    Graphics
    On-board graphics card
    • No
    Features
    Execute Disable Bit
    • Yes
    Idle States
    • Yes
    Thermal Monitoring Technologies
    • Yes
    Market segment
    • Server
    Maximum number of PCI Express lanes
    • 40
    PCI Express slots version
    • 3.0
    Supported instruction sets
    • AVX 2.0
    Scalability
    • 2S
    Physical Address Extension (PAE)
    • Yes
    • 46
    CPU configuration (max)
    • 2
    Embedded options available
    • Yes
    PCI Express CEM revision
    • 3.0
    Export Control Classification Number (ECCN)
    • 5A992C
    Commodity Classification Automated Tracking System (CCATS)
    • G077159
    Processor special features
    Intel® Hyper Threading Technology (Intel® HT Technology)
    • Yes
    Intel® Identity Protection Technology (Intel® IPT)
    • No
    Intel® Turbo Boost Technology
    • 2.0
    Intel Flex Memory Access
    • No
    Intel® AES New Instructions (Intel® AES-NI)
    • Yes
    Enhanced Intel SpeedStep Technology
    • Yes
    Intel Trusted Execution Technology
    • Yes
    Intel® Turbo Boost Technology 2.0 frequency
    • 3
    Intel® Transactional Synchronization Extensions
    • Yes
    Intel Enhanced Halt State
    • Yes
    Intel VT-x with Extended Page Tables (EPT)
    • Yes
    Intel Demand Based Switching
    • Yes
    Intel® Secure Key
    • Yes
    Intel TSX-NI
    • Yes
    Intel® OS Guard
    • Yes
    Intel 64
    • Yes
    Intel Identity Protection Technology version
    • 0.00
    Intel Secure Key Technology version
    • 1.00
    Intel Virtualization Technology (VT-x)
    • Yes
    Intel Virtualization Technology for Directed I/O (VT-d)
    • Yes
    Intel TSX-NI version
    • 1.00
    Conflict-Free processor
    • Yes
    Intel® vPro™ Platform Eligibility
    • Yes
    Operational conditions
    Tcase
    • 74
    Technical details
    Bus bandwidth
    • 8
    Bus type units
    • GT/s
    Launch date
    • Q1'16
    Processor cache
    • 20480
    Product type
    • Processor
    Status
    • Launched
    Processor brand name
    • Intel Xeon
    Supported memory types
    • DDR4-SDRAM
    Last change
    • 63903513
    Product family
    • Intel Xeon Processor E5 v4 Family
    Bus speed
    • 8 GT/s
    Servicing status
    • End of Servicing Updates
    End of servicing updates date
    • Thursday, June 30, 2022
    Logistics data
    Harmonized System (HS) code
    • 85423119
    Packaging data
    Package type
    • Retail box
    Weight & dimensions
    Processor package size
    • 45mm x 52.5mm
    Other features
    Compatibility
    • Intel Server System R1208WT2GSR Intel Server System R1208WTTGSR Intel Server System R1304WT2GSR Intel Server System R1304WTTGSR Intel Server System R2208WTTYSR Intel Server System R2208WT2YSR Intel Server System R2208WTTYC1R Intel Server System R2308WTTYSR Intel Server System R2312WTTYSR Intel Server System R2224WTTYSR Intel Server System VRN2224THY2 Intel Server System VRN2224THY4 Intel Server Board S2600CW2R Intel Server Board S2600CW2SR Intel Server Board S2600CWTR Intel Server Board S2600CWTSR Intel Server Board S2600KPR Intel Server Board S2600KPFR Intel Server Board S2600KPTR Intel Server Board S2600TPR Intel Server Board S2600TPFR Intel Server Board S2600WTTR Intel Server Board S2600WT2R Intel Server Board S2600WTTS1R Intel Compute Module HNS2600KPFR Intel Compute Module HNS2600KPR Intel Compute Module HNS2600TP24R Intel Compute Module HNS2600TPFR Intel Compute Module HNS2600TPR Intel Compute Module HNS2600TP24SR
    Maximum internal memory
    • 1500
    • 1572864
