  2. Aten KVM 2-PC 1-User CS1942DP

Aten KVM 2-PC 1-User CS1942DP

SKU: CS1942DP-AT-G
Brand: Aten
https://safeconsulting.no/web/image/product.template/14058/image_1920?unique=32ed8ac

kr 3,795.00 3795.0 NOK kr 3,795.00 VAT Excluded

kr 3,795.00 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    ATEN 2P USB3.0 DisplayPORT Dual View KVMP SW. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 3.48 W. Width: 156.6 mm, Depth: 335 mm, Height: 44 mm

    Key Features

    • Black
    • Number of computers controlled: 2
    • Keyboard port type: USB Mouse port type: USB Video port type: DisplayPort
    • 4K Ultra HD 4096 x 2160 pixels
    • Housing material: Metal
    • Hot keys
    • DC 3.48 W

    Key Applications

    • Enterprise Multimedia Workstations
    • Large Organizational Use
    • Professional Editing Studios
    • High-Resolution Video Switching
    • DisplayPort Monitor Management

    Description

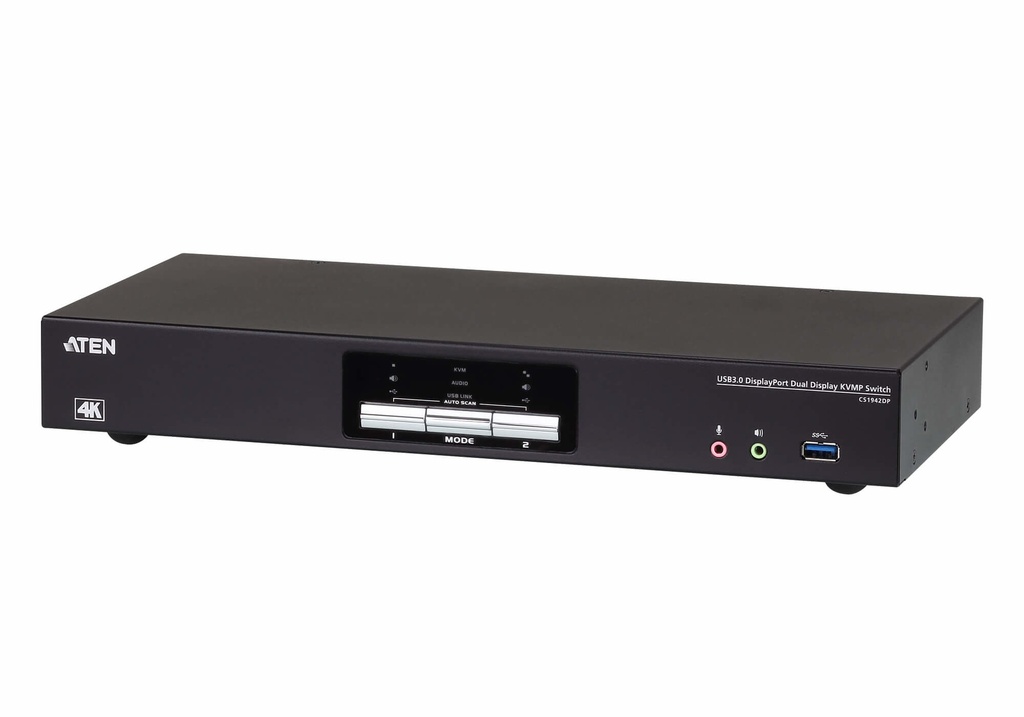

    The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
    1x 2-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
    4x LIN5-20K1-K13G DisplayPort 1.2 Cables
    2x LIN6-11C1-E12G USB 3.0 Cables
    4x LIN5-0205-21CG/LIN5-0205-21DG Audio Cables
    1x LIN2-418K-E12G Power Adapter
    1x User Instructions

    Product Specifications

    Specification Details
    Ports & interfaces
    Number of computers controlled
    • 2
    Keyboard port type
    • USB
    Mouse port type
    • USB
    Video port type
    • DisplayPort
    DisplayPorts quantity
    • 6
    DisplayPort version
    • 1.2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
    • 2
    Console ports
    • 3.5mm headphone,3.5mm mic,DisplayPort,USB A
    Console USB ports quantity
    • 2
    USB hub
    • Yes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
    • 2
    Headphone outputs
    • 4
    Number of microphone inputs
    • 4
    DC-in jack
    • Yes
    Network
    Ethernet LAN
    • Yes
    Ethernet LAN (RJ-45) ports
    • 1
    Performance
    HD type
    • 4K Ultra HD
    Maximum resolution
    • 4096 x 2160
    Video bandwidth
    • 60
    Scan interval
    • 1,99
    Auto scan delay (min)
    • 1
    Auto scan delay (max)
    • 99
    HDCP
    • Yes
    Daisy chain
    • Yes
    Firmware upgradeable
    • Yes
    Design
    Rack mounting
    • No
    Product colour
    • Black
    Housing material
    • Metal
    LED indicators
    • Yes
    Push button
    • Yes
    Hot keys
    • Yes
    Display
    Built-in display
    • No
    Power
    Power source
    • DC
    Input voltage
    • 12
    Power consumption (typical)
    • 3.48
    Operational conditions
    Operating temperature (T-T)
    • 0 - 50
    Storage temperature (T-T)
    • -20 - 60
    Operating relative humidity (H-H)
    • 0 - 80
    Weight & dimensions
    Width
    • 156.6
    Depth
    • 335
    Height
    • 44
    Weight
    • 2740
    Packaging data
    Package width
    • 116
    Package depth
    • 540
    Package height
    • 233
    Package weight
    • 3364
    Packaging content
    Cables included
    • Audio (3.5mm),DisplayPort to Mini DisplayPort,USB
    Manual
    • Yes
    AC adapter included
    • Yes
    Logistics data
    Master (outer) case net weight
    • 8220
    Harmonized System (HS) code
    • 85176200
    Master (outer) case width
    • 375
    Master (outer) case length
    • 565
    Master (outer) case height
    • 258
    Master (outer) case gross weight
    • 11160
    Products per master (outer) case
    • 3
