  2. Aten KVM 4-PC 1-User CS1944DP

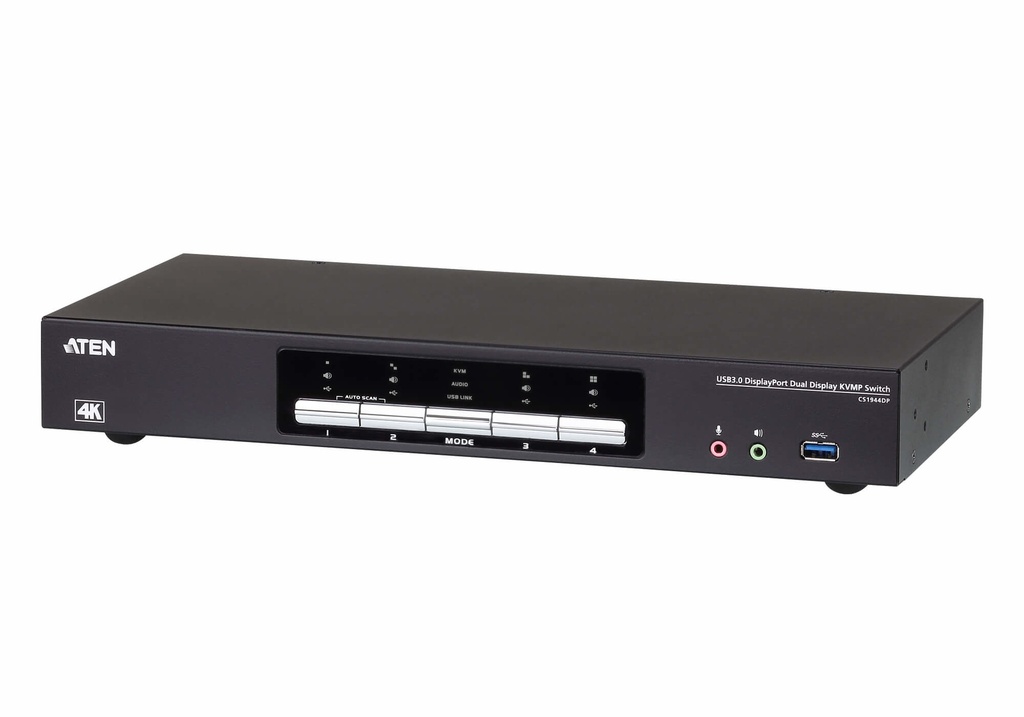

Aten KVM 4-PC 1-User CS1944DP

SKU: CS1944DP-AT-G
Brand: Aten
https://safeconsulting.no/web/image/product.template/14057/image_1920?unique=32ed8ac

kr 6,204.00 6204.0 NOK kr 6,204.00 VAT Excluded

kr 6,204.00 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    ATEN 4P USB3.0 DisplayPORT Dual View KVMP SW. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 6.125 W. Compliance certificates: RoHS

    Key Features

    • Black
    • Number of computers controlled: 4
    • Keyboard port type: USB Mouse port type: USB Video port type: DisplayPort
    • 4K Ultra HD 4096 x 2160 pixels
    • Housing material: Metal
    • Hot keys
    • DC 6.125 W

    Key Applications

    • Data Centers
    • Multimedia Workstations
    • Corporate IT Environments
    • Desktop Management
    • Audio/Visual Editing
    • Professional Studios

    Description

    The ATEN CS1944DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1944DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
    1x 4-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
    8x LIN5-20K1-K13G DisplayPort 1.2 Cables
    4x LIN6-11C1-E12G USB 3.0 Cables
    8x LIN5-0205-21CG/LIN5-0205-21DG Audio Cables
    1x LIN2-418K-E12G Power Adapter
    1x User Instructions

    Product Specifications

    Specification Details
    Ports & interfaces
    Number of computers controlled
    • 4
    Keyboard port type
    • USB
    Mouse port type
    • USB
    Video port type
    • DisplayPort
    DisplayPorts quantity
    • 10
    USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
    • 4
    Console ports
    • 3.5mm headphone,3.5mm mic,DisplayPort,USB A
    Console USB ports quantity
    • 2
    USB hub
    • Yes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
    • 2
    Audio connections
    • Yes
    Headphone outputs
    • 6
    Number of microphone inputs
    • 6
    DC-in jack
    • Yes
    Network
    Ethernet LAN
    • Yes
    Ethernet LAN (RJ-45) ports
    • 1
    Performance
    HD type
    • 4K Ultra HD
    Maximum resolution
    • 4096 x 2160
    Video bandwidth
    • 60
    Scan interval
    • 1,99
    Firmware upgradeable
    • Yes
    Design
    Product colour
    • Black
    Housing material
    • Metal
    LED indicators
    • Yes
    Push button
    • Yes
    Hot keys
    • Yes
    Display
    Built-in display
    • No
    Power
    Power source
    • DC
    Input voltage
    • 12
    Power consumption (typical)
    • 6.125
    Sustainability
    Compliance certificates
    • RoHS
    Operational conditions
    Operating temperature (T-T)
    • 0 - 50
    Storage temperature (T-T)
    • -20 - 60
    Operating relative humidity (H-H)
    • 0 - 80
    Weight & dimensions
    Width
    • 156.6
    Depth
    • 335
    Height
    • 44
    Weight
    • 3460
    Packaging data
    Package width
    • 116
    Package depth
    • 540
    Package height
    • 233
    Package weight
    • 4205
    Packaging content
    Cables included
    • Audio (3.5mm),DisplayPort,USB
    Manual
    • Yes
    AC adapter included
    • Yes
    Logistics data
    Master (outer) case net weight
    • 10380
    Harmonized System (HS) code
    • 85176200
    Master (outer) case width
    • 375
    Master (outer) case length
    • 565
    Master (outer) case height
    • 258
    Master (outer) case gross weight
    • 13200
    Products per master (outer) case
    • 3
