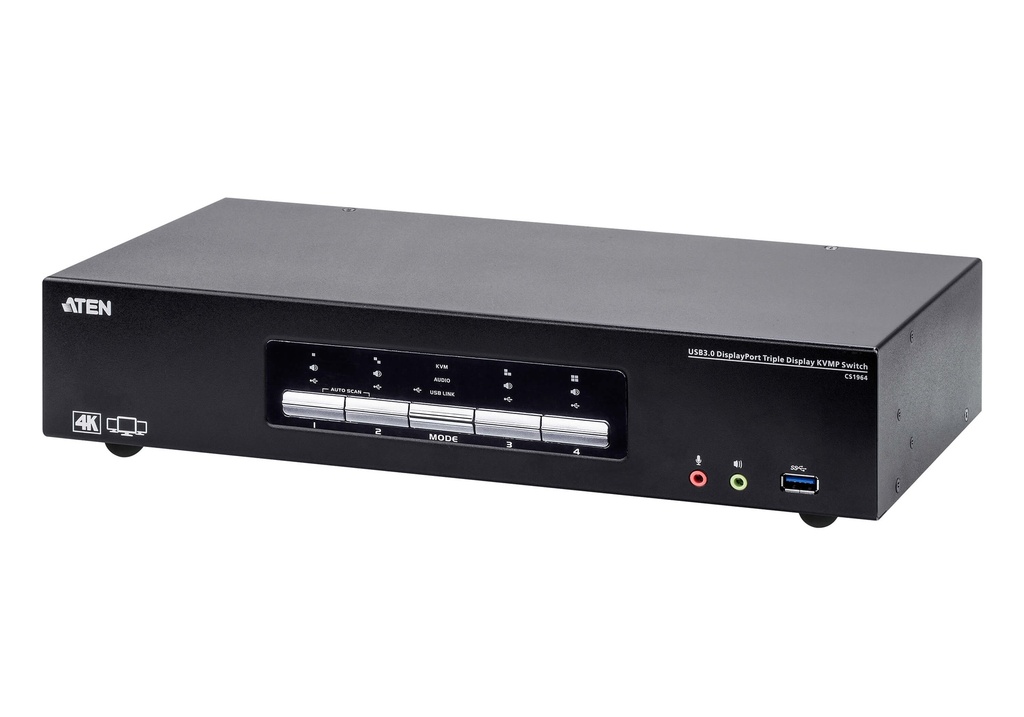

Aten KVM 4-PC 1-User CS1964

SKU: CS1964-AT-G
Brand: Aten
https://safeconsulting.no/web/image/product.template/14068/image_1920?unique=8504195

kr 17,264.50 17264.5 NOK kr 17,264.50 VAT Excluded

kr 17,264.50 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    ATEN 4P USB3.0 4K DP TRIPLE VIEW KVMP SW. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 15.49 W. Width: 335 mm, Depth: 156 mm, Height: 65.5 mm

    Key Features

    • Black
    • Number of computers controlled: 4
    • Keyboard port type: USB Mouse port type: USB Video port type: DisplayPort
    • 4K Ultra HD 4096 x 2160 pixels
    • Housing material: Metal
    • Hot keys
    • DC 15.49 W

    Key Applications

    • Professional Server Environments
    • Data Centers
    • Network Operations
    • Enterprise IT Management
    • Remote Workstations
    • Multimedia Processing
    • System Integration
    • Collaborative Workspaces
    • Virtual Desktop Infrastructure
    • Advanced Computing

    Description


    1x 4-Port USB3.0 4K DisplayPort Triple Display KVMP™ Switch
    6x LIN5-20K1-K13G DisplayPort 1.2 Cables
    2x LIN6-11C1-E12G USB 3.0 Cables
    2x LIN5-0205-21CG Audio Cables
    2x LIN5-0205-21DG Audio Cables
    1x 0AD8-8012-33MG Power Adapter
    1x LIN2-418K-E12G Power cable
    1x User Instructions
    Note: The included cable sets are for two computer port connection only. Optional cable sets (2L-7D02UDPX6) are available with a separate purchase for the remaining computer port connection.

    Product Specifications

    Specification Details
    Ports & interfaces
    Number of computers controlled
    • 4
    Keyboard port type
    • USB
    Mouse port type
    • USB
    Video port type
    • DisplayPort
    DisplayPorts quantity
    • 12
    USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
    • 4
    Console ports
    • 3.5mm headphone,3.5mm mic,DisplayPort,HDMI,USB A
    Console USB ports quantity
    • 2
    USB hub
    • Yes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
    • 2
    USB connector type
    • USB Type-A,USB Type-B
    Audio connections
    • Yes
    Headphone outputs
    • 6
    Number of microphone inputs
    • 6
    DC-in jack
    • Yes
    Performance
    HD type
    • 4K Ultra HD
    Maximum resolution
    • 4096 x 2160
    Video bandwidth
    • 60
    Scan interval
    • 1,5,99
    Design
    Product colour
    • Black
    Housing material
    • Metal
    LED indicators
    • Yes
    Push button
    • Yes
    Hot keys
    • Yes
    Display
    Built-in display
    • No
    Power
    Power source
    • DC
    Input voltage
    • 12
    Power consumption (typical)
    • 15.49
    System requirements
    Windows operating systems supported
    • Yes
    Operational conditions
    Operating temperature (T-T)
    • 0 - 50
    Storage temperature (T-T)
    • -20 - 60
    Operating relative humidity (H-H)
    • 0 - 80
    Storage relative humidity (H-H)
    • 0 - 80
    Weight & dimensions
    Width
    • 335
    Depth
    • 156
    Height
    • 65.5
    Weight
    • 3570
    Packaging data
    Package width
    • 131
    Package depth
    • 540
    Package height
    • 233
    Package weight
    • 4025
    Packaging content
    Quick installation guide
    • Yes
    Manual
    • Yes
    Logistics data
    Master (outer) case net weight
    • 10710
    Harmonized System (HS) code
    • 85176200
    Master (outer) case width
    • 420
    Master (outer) case length
    • 555
    Master (outer) case height
    • 258
    Master (outer) case gross weight
    • 12970
    Products per master (outer) case
    • 3
