Summary Description

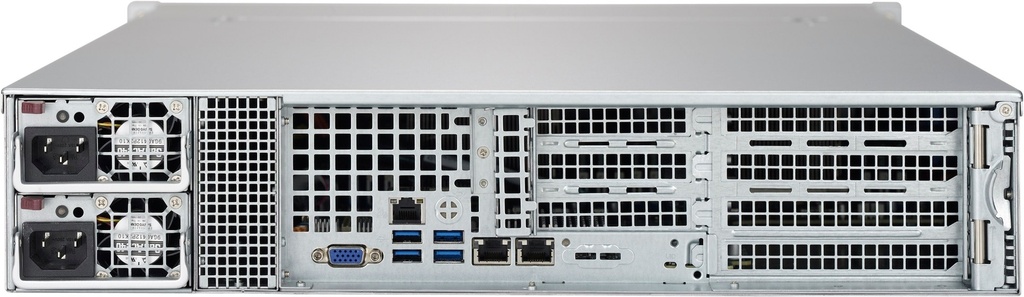

The Supermicro CSE-213BAC8-R1K23WB is a high-performance 2U chassis that supports a wide range of motherboard sizes, notably SMC Proprietary WIO, 13.68" x 13" motherboards, and dual and single Intel/AMD processors. It features 16 x 2.5" hot-swap SAS3/SATA drive bays, 1 x 5.25" drive bay, and an optional 2 x 2.5" hot-swap SAS/SATA drive bay, making it ideal for storage-intensive applications.
Key Features
- 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 13" motherboards
- 16 x 2.5" hot-swap SAS3/SATA drive bay, 1 x 5.25" drive bay, optional 2 x 2.5" hot-swap SAS/SATA drive bay
- 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices
- 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
- 4x full-height & full-length expansion slot(s) and 3x low-profile expansion slot(s)
- 3 x 8cm high-performance PWM fan(s)
Key Applications
- Data centers
- Virtualization
- High-performance computing
- Storage-intensive operations
- Server infrastructure
- Enterprise applications
Description
Supermicro's CSE-213BAC8-R1K23WB chassis blends advanced server performance with scalable storage capabilities in a 2U form factor. It supports up to 16 x 2.5" hot-swap SAS3/SATA drive bays and an optional 2 x 2.5" hot-swap SAS/SATA drive bay, making it ultra-flexible for diverse applications such as virtualization, data centers, and high-performance computing. The chassis ensures efficient power usage through its 1200W/1000W Titanium Power Supply with PMbus. Features such as 4x full-height & full-length expansion slots and 3x low-profile expansion slots alongside the 3 x 8cm high-performance PWM fans ensure balanced thermal management and expansion capabilities. Compliant with top safety and regulatory standards, this chassis is the epitome of durable design and high reliability in server infrastructure.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Packaging (W x H x L) |
|
| Available Color |
|
| Front Panel | |
| Button |
|
| LED |
|
| Systems Cooling | |
| Fans |
|
| Operating Environment (System) | |
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
|
| Operating Relative Humidity Range |
|
| Non Operating Relative Humidity Range |
|
| Power Supply | |
| |
| Power Efficiency |
|
| Total Output Power and Input |
|
| AC Input Frequency |
|
| Dimensions (L x W x H) |
|
| Output Type |
|
| +12V |
|
| +5Vsb |
|
| Power Distributor |
|
| Certification |
|
| Regulatory (Power Supply) | |
| Power Supply Safety / EMC |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Air Shroud | ||
| MCP-310-29001-0N | 1 | SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 |
| HD Backplane | ||
| BPN-SAS3-213A-N8 | 1 | 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices |
| Cable(s) | ||
| CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF |
| CBL-0217L | 1 | 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF |
| CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH |
| CBL-PWEX-1069 | 3 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS |
| Part(s) | ||
| MCP-290-00088-0N | 1 | SC119 Intrusion assembly |
| MCP-290-82605-0V | 1 | 826 handle |
| MCP-230-82603-0N | 1 | Top cover for SC826B, 216B WIO/UIO w/ FH-AOC mylar |
| MCP-240-00103-0N | 1 | 2U WIO riser card bracket for SC825, SC826, SC213, SC216 |
| CD-ROM & Accessory | ||
| MCP-290-00007-01 | 1 | Black DVD dummy cover for SC825, 836 |
| Fan(s) | ||
| FAN-0206L4 | 3 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers |
| Front Panel | ||
| FPB-FP826-D | 1 | Front control board Dual color LED(FP826-D)forSC826,213,216, |
| FPB-TB826 | 1 | 16 pin Cable Adaptor Board for SC826 |
| Drive Tray(s) | ||
| MCP-220-00009-01 | 1 | Black 5.25"; drive tray w/o rail (square pattern) |
| MCP-220-00023-01 | 1 | Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836 |
| MCP-220-00047-0B | 16 | Black gen 3rd hot-swap 2.5inch HDD tray |
| Power Distributor | ||
| PDB-PT216-2824 | 1 | PDB with 23pairs input connectors for SC216B |
| Power Supply & Accessory | ||
| PWS-1K23A-1R | 2 | AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH |
| Mounting Rail(s) | ||
| MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W |
| MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack |
| Rear Window | ||
| MCP-240-82609-0N | 1 | SC826B, 216B WIO rear window |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Cable | ||
| CBL-SAST-0591 | - | cross-over mini SAS HD to 4 SATA w/SB, S. 75cm. 30AWG,HF,RoHS/REACH,PBF |
| CBL-SAST-0568 | - | Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF |
| CBL-SAST-0508-01 | - | Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG,HF,RoHS/REACH,PBF |
| DVD-ROM / DVD-RW | ||
| DVM-PNSC-DVD-SBT3 | - | BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH |
| MCP-220-81502-0N | - | Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842 |
| Front Bezel | ||
| MCP-210-82601-0B | - | Black Front Bezel for 826 chassis |
| Front USB | ||
| MCP-220-00007-01 | - | Black USB/COM port tray for SC825, 836 |
| HDD Kit | ||
| MCP-220-81506-0N | - | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED |
| Rail | ||
| MCP-290-00058-0N | - | Short rail set, quick release, 19.6"~26.9" Extendable Length |
| Tray(s) | ||
| MCP-290-00036-0B | - | Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836 |
