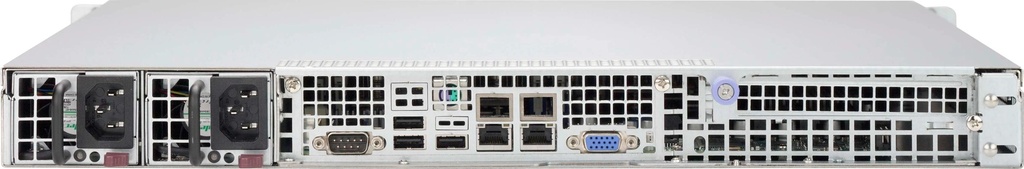

1U SC514 Redundant PWS Chassis

CSE-514-R407C
https://safeconsulting.no/web/image/product.template/12691/image_1920?unique=a415753

kr 6,239.63 6239.63 NOK kr 6,239.63

kr 6,239.63

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro 1U SC514 chassis is designed for high-efficiency performance with redundant power supply. It supports standard E. ATX motherboards and offers advanced cooling solutions with 4 PWM fans. Perfect for enterprise-level applications with robust expansion options.

    Key Features

    • Support STD MB, size up to E. ATX 12" x 13".
    • 2 x 2.5" fixed with bracketSAS or enterprise SATA HDD only recommended
    • 1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
    • 1 full height expansion slot(s)
    • 4 x 40x56mm PWM fan(s)Optional 2 x fans for AOC cooling

    Key Applications

    • Enterprise Data Centers
    • High-Performance Computing
    • Network Infrastructure
    • Data Storage Solutions
    • Virtualization Servers
    • Database Management Systems
    • Cloud Computing
    • Web Hosting Services
    • AI and Machine Learning
    • Content Delivery Networks

    Description

    The Supermicro 1U SC514 chassis features a robust design for seamless integration in a server environment. It supports standard motherboards up to E. ATX size. With 2 x 2.5" drive bays and a redundant 400W power supply, it ensures high reliability and performance. Ideal for enterprise data centers, it includes advanced cooling options and versatile expansion capabilities.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 514-R407C
    Dimensions
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 16.9" (429 mm)
    Gross Weight
    • 25.2 lbs (11.43 kg)
    Packaging (W x H x L)
    • 27" (686 mm) x 8" (203 mm) x 24" (610 mm)
    Available Color
    • No Paint
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    LED
    • Power status LED
    • HDD activity LED
    • 2 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    Systems Cooling
    Fans
    • 4x 40x56mm PWM fan(s)
    • Optional 2x fans for AOC cooling
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 400W Redundant Power Supply Platinum with PM Bus, W54.5xL220xH40mm
    Power Efficiency
    • 94%
    Total Output Power and Input
    • 400W with Input 200 - 240Vdc
    • 400W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 220 x 54.5 x 40.25 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 33A / Min: 0A (100Vac - 240Vac)
    +5Vsb
    • Max: 3A / Min: 0A
    Power Distributor
    • PDB-PT514-2824
    • O/P: 12V/54
    • +5V Max: 25A
    • +3.3V Max: 25A
    • -12V Max: 0.6A
    Certification
    • Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Cable(s)
    CBL-0156L1ROUND 16PIN TO 16PIN FP CABLE,40CM, PB FREE
    CBL-0260L2US POWER CORD 18 AWG, PBF
    Part(s)
    MCP-120-00031-0N1Riser card bracket for SC812,813,813M,815,111,113,113M
    MCP-270-51401-0N11U SC514 redundant PWS chassis base
    MCP-230-51401-0N1Top cover for SC514/515
    MCP-260-00078-0N11U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
    Fan(s)
    FAN-0156L4440x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
    Front Panel
    MCP-280-51201-0N1Front control board (FP512) for SC512 (surface-mounted LED)
    Cooling Fan & Accessory
    MCP-320-81801-0B3SC818G 2x 4056 fan tray,HF,RoHS,PBF
    MCP-340-00035-0B2Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    Drive Tray(s)
    MCP-220-51401-0N1Dual 2.5 HDD bracket (bracket base not follow std 2.5
    Power Distributor
    PDB-PT514-282411U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH
    Power Supply & Accessory
    PWS-407P-1R2AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
    Mounting Rail(s)
    MCP-290-00102-0N1setOuter rail, quick-release type, 25.6
    MCP-290-00108-0N1setInner rail, front, short, quick-release type
    Rear Window
    MCP-240-00086-0N1STD rear window for SC113 redundant PWS

    Optional Part List

    Part Number Quantity Description
    Chassis parts
    MCP-120-00078-0N-Optional shorter 1U riser card bracekt for X9DRL-7F/EF
    Fan Kit
    CBL-0296L-4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
    Rail
    MCP-290-00056-0N-Quick-release outer rail for square hole short-depth rack (19"~26.4")
