Summary Description

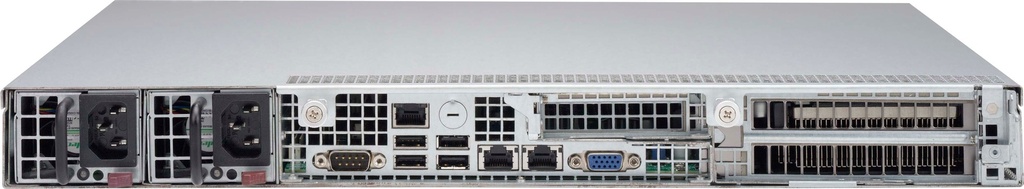

The Supermicro CSE-514-R407W chassis is designed for performance and reliability. It supports both dual and single Intel and AMD processors and includes a robust power supply system along with advanced cooling options. Perfect for high-demand server environments, it offers a range of expansion slots and drive bays.
Key Features
- Support WIO MB, max MB size 12.3" x 13" and Proprietary MB 8" x 13"
- Up to 2 x 2.5" fixed with bracket
- 1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
- 2 full height expansion slot(s) , 1 low-profile expansion slot(s)
- 4 x 40x56mm PWM fan(s)Optional 2 x fans for AOC cooling
Key Applications
- Data Center Solutions
- Enterprise IT
- High-Performance Computing
- Cloud Services
- Virtualization
- Edge Computing
Description
The Supermicro CSE-514-R407W chassis is engineered to meet the demanding requirements of today's server environments. It supports dual and single Intel and AMD processors and offers flexibility with its expansion slots including 2 full-height and 1 low-profile slots. The cooling system features 4 PWM fans with optional fans for further optimization. The chassis also boasts a 400W redundant power supply platinum level with PMBUS support, ensuring efficiency and reliability.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Packaging (W x H x L) |
|
| Available Color |
|
| Front Panel | |
| Button |
|
| LED |
|
| Systems Cooling | |
| Fans |
|
| Operating Environment (System) | |
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
|
| Operating Relative Humidity Range |
|
| Non Operating Relative Humidity Range |
|
| Power Supply | |
| |
| Power Efficiency |
|
| Total Output Power and Input |
|
| AC Input Frequency |
|
| Dimensions (L x W x H) |
|
| Output Type |
|
| +12V |
|
| +5Vsb |
|
| Power Distributor |
|
| Certification |
|
| Regulatory (Power Supply) | |
| Power Supply Safety / EMC |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Cable(s) | ||
| CBL-0156L | 1 | ROUND 16PIN TO 16PIN FP CABLE,40CM, PB FREE |
| CBL-0260L | 2 | US POWER CORD 18 AWG, PBF |
| Part(s) | ||
| MCP-230-51401-0N | 1 | Top cover for SC514/515 |
| MCP-270-51401-0N | 1 | 1U SC514 redundant PWS chassis base |
| Fan(s) | ||
| FAN-0156L4 | 4 | 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH |
| Front Panel | ||
| MCP-280-51201-0N | 1 | Front control board (FP512) for SC512 (surface-mounted LED) |
| Cooling Fan & Accessory | ||
| MCP-320-00027-0B | 24 | Plastic pin for 40x28, 40x56 fan |
| MCP-320-81801-0B | 3 | SC818G 2x 4056 fan tray,HF,RoHS,PBF |
| MCP-340-00035-0B | 2 | Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) |
| Drive Tray(s) | ||
| MCP-220-51401-0N | 1 | Dual 2.5 HDD bracket (bracket base not follow std 2.5 |
| Power Distributor | ||
| PDB-PT514-2824 | 1 | 1U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH |
| Power Supply & Accessory | ||
| PWS-407P-1R | 2 | AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH |
| Mounting Rail(s) | ||
| MCP-290-00102-0N | 1set | Outer rail, quick-release type, 25.6 |
| MCP-290-00108-0N | 1set | Inner rail, front, short, quick-release type |
| Rear Window | ||
| MCP-240-51401-0N | 1 | I/O window for SC514 redudant PWS chassis (changeable) |
| MCP-240-80104-1N | 1 | D-rear window, riser card bracekt + PCIE L-bracket part |
| MCP-240-80105-1N | 1 | D-rear window, retention part |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Fan Kit | ||
| CBL-0296L | - | 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG |
| FAN-0141L4 | - | 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan |
| Rail | ||
| MCP-290-00056-0N | - | Quick-release outer rail for square hole short-depth rack (19"~26.4") |
