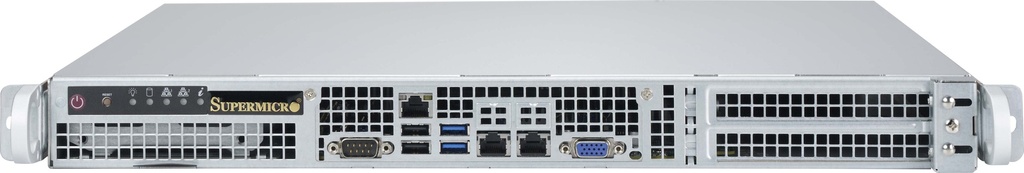

1U SC515 Single PWS chassis (350W)

CSE-515-350
https://safeconsulting.no/web/image/product.template/11900/image_1920?unique=68add06

kr 2,986.97 2986.9700000000003 NOK kr 2,986.97

kr 2,986.97

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro CSE-515-350 is a 1U chassis that supports STD and WIO motherboard sizes up to 12”x13”. Equipped with a 350W multi-output Platinum level power supply and a range of optional drive bays, it is a robust solution for various computing needs.

    Key Features

    • Support STD and WIO MB size up to 12”x13”
    • Optional Up to 4 x 2.5" fixed with bracket, Up to 1 x 3.5" fixed drive bay
    • 1U 350W Multi-output power supply Platinum level
    • Up to , 2 full height expansion slot(s)
    • 4 x 40x56mm PWM fan(s)Optional 2 x fans for AOC cooling

    Key Applications

    • Data centers
    • Enterprise servers
    • High performance computing
    • Network storage

    Description

    The Supermicro CSE-515-350 is designed to meet high-performance computing needs with support for both dual and single Intel® and AMD processors. It features a 350W multi-output power supply with Platinum certification ensuring 93% power efficiency. The chassis supports up to 2 full height expansion slots, four 40x56mm PWM fans, and optional cooling fans for AOC. The front panel includes a power on/off button, system reset button, and multiple status LEDs. The chassis allows flexible storage options with up to 1x 3.5" fixed drive bay and optional up to 4x 2.5" fixed drive bays with brackets. Additionally, it features comprehensive regulatory approvals including BSMI, CCC, CE/EMC, FCC class B, and TUV/CB.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 515-350
    Dimensions
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 16.9" (429 mm)
    Gross Weight
    • 16 lbs (7.26 kg)
    Packaging (W x H x L)
    • 27" (686 mm) x 8" (203 mm) x 24" (610 mm)
    Available Color
    • No Paint
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    LED
    • Power status LED
    • HDD activity LED
    • 2 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    Systems Cooling
    Fans
    • Optional 2x fans for AOC cooling
    • 4x 40x56mm PWM fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 350W Multi-output power supply Platinum level
    Power Efficiency
    • 93%
    Total Output Power and Input
    • 350W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 180 x 100 x 40 mm
    Output Type
    • 24pin ATX
    -12V
    • Max: 0.2A / Min: 0A
    +12V
    • Max: 29A / Min: 0.5A (100Vac - 240Vac)
    +5V
    • Max: 15A / Min: 0.2A
    +3.3V
    • Max: 12A / Min: 0.2A
    +5Vsb
    • Max: 3A / Min: 0A
    Certification
    • Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class B
    • TUV/CB

    Standard Part List

    Part Number Quantity Description
    Bracket
    MCP-240-51504-0N1Riser card bracket for STD riser card + STD MB in SC515
    Cable(s)
    CBL-0306L1FRONT CTRL CABLE ROUND 16 TO 16 PIN RIBBON, 65CM
    CBL-PWCD-0160-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    Part(s)
    MCP-230-51501-0N1Top cover for SC515, with 1x #6-32 thumb screw
    MCP-270-51501-0N11U SC515 single PWS chassis base
    MCP-260-00078-0N11U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
    Fan(s)
    FAN-0157L4440x40x56 mm 13K-11K RPM Counter-rotating Fan w/ a 160-mm Wire Coming out from the Fan Inlet Side,RoHS/REACH
    Front Panel
    MCP-280-51201-0N1Front control board (FP512) for SC512 (surface-mounted LED)
    Cooling Fan & Accessory
    MCP-320-00027-0B24Plastic pin for 40x28, 40x56 fan
    MCP-320-81801-0B3SC818G 2x 4056 fan tray,HF,RoHS,PBF
    MCP-340-00035-0B2Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    Power Supply & Accessory
    PWS-350-1H11U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
    Mounting Rail(s)
    MCP-290-00102-0N1setOuter rail, quick-release type, 25.6
    MCP-290-00108-0N1setInner rail, front, short, quick-release type
    Rear Window
    MCP-240-51501-0N1rear window for SC515 single PWS chassis

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-0260L-US power cord 18AWG 6ft, PBF (default for low watt)
    CBL-0156L-Front ctrl cable Round 16 pin to 16 pin, 40cm, 28AWG
    CBL-0296L-4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
    Chassis parts
    MCP-240-51502-0N-Riser card bracket for WIO MB in SC515-505
    Rail
    MCP-290-00056-0N-Quick-release outer rail for square hole short-depth rack (19"~26.4")
    MCP-290-00064-0N-Thumb screw adapter of inner rail for 1U 17.2
    Tray(s)
    MCP-220-51402-0N-3.5in fixed HDD tray for SC514,515
    MCP-220-51401-0N-Dual 2.5" fixed HDD bracket for SC514,515(MCP-220-51402-0N required)
