  2. Black 4U Tower SC743AC SQ with SAS3, USB3, 1200W PWS,RoH

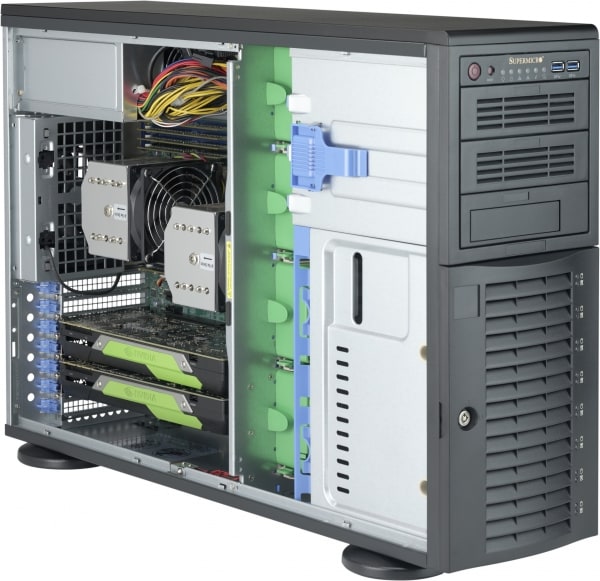

Black 4U Tower SC743AC SQ with SAS3, USB3, 1200W PWS,RoH

CSE-743AC-1K26B-SQ
https://safeconsulting.no/web/image/product.template/11908/image_1920?unique=68add06

kr 6,836.30 6836.3 NOK kr 6,836.30

kr 6,836.30

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro CSE-743AC-1K26B-SQ is a 4U Full Tower Chassis designed to support maximum motherboard sizes (E-ATX 12" x 13"/ATX/Micro ATX) and comes with an efficient 1200W Platinum Level power supply.

    Key Features

    • 8x 3.5"/2.5" SAS3/SATA3 Backplane for Hot-Swappable Drives
    • Whisper-Quiet (<27dB)
    • Front HDD Door Lock & Side Panel Intrusion Switch
    • Front I/O Ports: 2x USB 3.0
    • 2x 8cm PWM Fans & 1x 9cm Rear PWM Fan
    • 4U / Full Tower Chassis Supports max. Motherboard, Sizes – E-ATX 12" x 13"/ATX/Micro ATX
    • 1200WPlatinum LevelCertified High-Efficiency Power Supply
    • 3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives

    Key Applications

    • Enterprise
    • Data Centers
    • Workstations
    • File Servers
    • Database Servers

    Description

    The Supermicro CSE-743AC-1K26B-SQ 4U Full Tower Chassis offers outstanding performance and reliability with its advanced features. It supports up to 8x 3.5"/2.5" Hot-Swappable HDD Drives, 3x 5.25" External HDD Drive Bays, and a powerful, Platinum Level Certified High-Efficiency 1200W Power Supply. The front panel provides ease of access with 2x USB 3.0 Ports and various status LEDs. Whisper-Quiet (<27dB) operation ensures a reduced noise environment, making it ideal for various applications including enterprise and data centers.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 743AC-1K26B-SQ
    Dimensions
    Height
    • 17.8" (452 mm)
    Width
    • 7" (178 mm)
    Depth
    • 25.5" (647 mm)
    Gross Weight
    • 56 lbs (25.4 kg)
    Net Weight
    • 53 lbs (24.04 kg)
    Packaging (W x H x L)
    • 27.8" (706 mm) x 12.5" (318 mm) x 31.1" (790 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    LED
    • Power status LED
    • HDD activity LED
    • 2 Network Activity LEDs
    • Unit Identification (UID) LED
    • Fan Fail/System Over Heat LED
    Port
    • 2x USB 3.0 Port(s)
    Systems Cooling
    Fans
    • 1x 92mm PWM Rear fan(s)
    • 2x 80mm PWM Chassis Middle Fans
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1200W PS2 Multi-output power supply
    Power Efficiency
    • 94%
    Total Output Power and Input
    • 1200W with Input 120 - 240Vac
    • 1000W with Input 100 - 120Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 185 x 150 x 86 mm
    Output Type
    • 24pin ATX
    -12V
    • Max: 0.3A / Min: 0A
    +12V
    • Max: 99A / Min: 1A (120Vac - 240Vac)
    • Max: 83A / Min: 1A (100Vac - 120Vac)
    +5V
    • Max: 20A / Min: 0.3A
    +3.3V
    • Max: 20A / Min: 0.3A
    +5Vsb
    • Max: 3A / Min: 0A
    Certification
    • Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class B
    • UL/CB

    Standard Part List

    Part Number Quantity Description
    HD Backplane
    BPN-SAS3-743A18-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis
    Cable(s)
    CBL-0084116 PIN FRONT CTRL SPLIT CONVECTOR 6"
    CBL-00871CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
    CBL-0160L1US POWER CORD 16AWG, PB FREE
    CBL-SAST-06312Cross-over Mini SAS HD to 4 SATA w/SB, S. 55cm. 30AWG
    Fan(s)
    FAN-0103L4192x25 4Pin PWM Fan assembly for SC743 Super Quiet rear fan
    FAN-0104L4280x25,4 Pin PWM fan assem. for SC743 Super Quiet chassis fan
    Drive Tray(s)
    MCP-220-00193-0N8SC743/SC745/SC822/SC823 Gen2 2.5"/3.5" 2-in-1 HDD tray
    Power Supply & Accessory
    PWS-1K26P-PQ11000W/1200W PS2 Multi output power supply with modular cable

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-0454L-USB 3.0 to 2.0 Adapter Cable 30cm (19 pin Male to 9 pin Female). 28/24AWG
    CBL-0157L-8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
    Heatsink / Retention
    --Please refer to our Thermal Components Matrix
    Mounting Rail
    CSE-PT26L-(B)--
    Peripheral Drive(s)
    DVM-LITE-DVDRW24-HBT-BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
